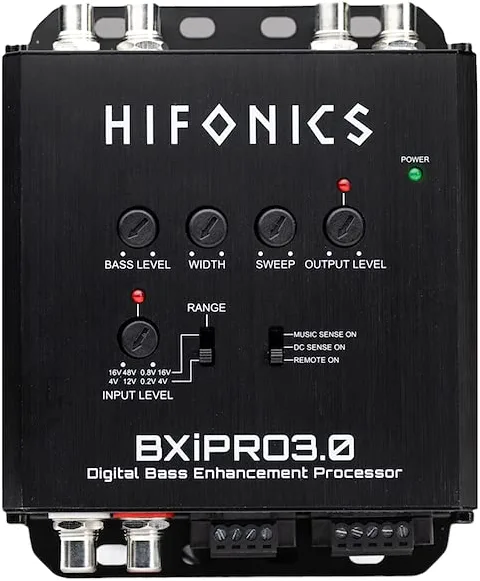

Hifonics BXiPro3.0 Digital Bass Processor Epicenter 2CH Hi/Lo Converter w/ Noise Reduction

The Hifonics BXiPRO3.0 Digital Bass Enhancement Processor integrates with an upgraded subwoofer system into any vehicle. Showcasing a compact design with a sleek finish, this all-in-one processor gives you 3x the power at half the size in space. With adjustable mounting solutions and multipoint installation options, including placing the processor behind dash-concealed locations, this processor will be as flexible as your installation demands. With rugged, reinforced connectors that feature Tiffany Style differential noise inputs, you’ll not only receive a processor that has superior connectivity where you need it the most, but you’ll also embrace selectable multilevel inputs and dual remote outputs (high-levels out and sub-levels out) that connect 2 different amplifiers. This processor also comes with a wired, adjustable, dash-mountable remote.

General Features:

• BXiPro Bass Enhancer Processor with Dash Mount Remote Control
• Enhances and restores the bass level
• Screw-in power and speaker connectors to chassis for secure connections that prevent disconnection
• Dual-function bass remote
• Remote wire input, DC sense, and music sense turn on
• Input and output signal clip indicators
• Mono adjustable output level (can be controlled by bass remote)
• 48v high-level inputs
• Ability to use test tones to set input and output levels
• Fine-tuning adjustability using bass width and sweep
• Fixed 4v full range output
• Small profile
• Tiffany-style RCA connectors
• Low and high-level audio inputs (speaker-level inputs)
• Balanced differential inputs (for noise reduction)
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty

Functions & Operations:

• Adjustable bass enhancement preamp output
• Bass remote input
• Preamp full range output
• Adjustable bass level output
• Adjustable bass width and sweep adjustments
• Output level control with clip indicators
• Input level control with clip indicators
• Selectable input level range (RCA or speaker level)
• Selectable turn on the trigger (remote wire input, DC sense, and signal sense)
• Low-level inputs (RCA level)
• High-level input (speaker level)
• Power connector with two remote output trigger wires
• Dual concentric bass knob (A. bass level, B. output level)

Product Specifications:

• Fuse value: 1A mini ATC
• Voltage range: 9.5V -15V
• Bass remote type: HF-U-02
• Fixed voltage output full range: 4V
• Adjustable subwoofer output voltage: 0V -9V
• Maximally Flat Frequency Response Main: (-3dB) 10Hz to >50kHz
• Input Impedance Low-level inputs: 20k Ohms
• Input Impedance High-level inputs: 20k Ohms
• Maximum high-level Input Voltage on any input before clipping: >48V
• Maximum Output voltage at 1.0% THD+N (subwoofer output): 9.0V
• Signal to Noise Ratio (ref to 2Vrms out, unity gain): -84.0dBA
• EQ boost: Variable to +8.1dB
• Unit turn on options: 30mV High-Level Audio, 59mV RCA Audio, 2.2V DC Offset
• Current Draw: 0.32A
• Turn on Delay Time: 0.1 seconds
• Setup test tone track: 100 Hz & 1000Hz
• Dimensions: 109mm W x134mm D x 30.5mm H
