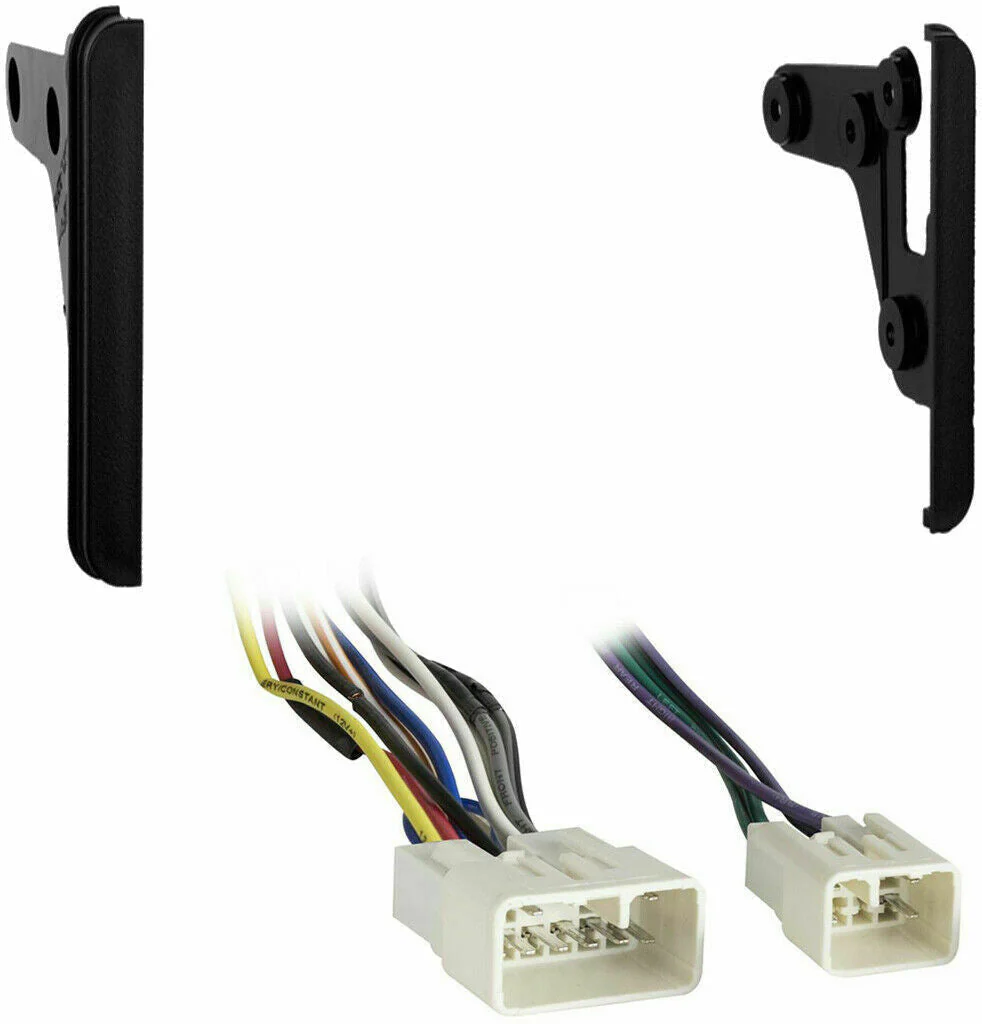

Metra 95-8202 Double-Din Radio Install Dash Kit & 70-1761 Wire Harness for Toyota, Car Stereo Mount

Metra Double DIN Toyota Aftermarket Stereo Dash Kit (95-8202) Double DIN Installation Kit for Select 2000-2009 Toyota and Scion Vehicles

Intrchange Part Number: Metra: 95-8202, American International: TTR-992, Scosche: TA1465B

General Features:

• Install dash kit for Dual Single DIN/ISO or Double DIN Radios
• Designed and manufactured with precision tolerances, resulting in a gapless fit between the dash and the kit
• Painted to match factory dash color
• High-grade ABS plastic construction
• Factory style texture

Kit Includes:

• 1. Radio Housing Brackets

Compatible vehicles:

• LEXUS ES330 W/Navi 2005
• SCION FRS 2013
• SCION FRS 2015
• SCION IQ 2015
• SCION TC 2013
• SCION TC 2014
• SCION TC 2015
• SCION TC W/ PREMIUM AUDIO SYSTEM 2011
• SCION XB 2015
• SCION XD 2013
• SUBARU BRZ 2013
• SUBARU FORESTER 2013
• SUBARU Forester equipped with SD card-based OE NAV 2012
• SUBARU FORESTER W/ NAV 2013
• SUBARU Forester with OE NAV 2015
• SUBARU IMPREZA WRX W/ NAV 2013
• SUBARU WRX with NAV 2015
• TOYOTA FJ CRUISER 2013
• TOYOTA HIGHLANDER 2001
• TOYOTA HIGHLANDER 2002
• TOYOTA HIGHLANDER 2013
• TOYOTA HIGHLANDER W/ JBL 2013
• TOYOTA HIGHLANDER w/ JBL SYSTEM 2001
• TOYOTA HIGHLANDER w/ JBL SYSTEM 2002
• TOYOTA MATRIX 2005
• TOYOTA MATRIX 2006
• TOYOTA MATRIX W/FACTORY NAV PREMIUM 2010
• TOYOTA MR2 2000
• TOYOTA SEQUOIA JBL SYSTEM 2003
• TOYOTA TUNDRA 2005
• TOYOTA TUNDRA 2006
• TOYOTA Yaris 2012
• TOYOTA YARIS 2013
• TOYOTA YARIS PREMIUM RADIO (Integrated dash) 2011
• TOYOTA YARIS PREMIUM RADIO (Integrated) 2007

METRA 70-1761 Wiring Harness

Interchange Part Number: American International TWH950, Metra 70-1761, Scosche TA02B

Color Codes:

• Yellow – 12V Constant
• Red – 12V Accessory
• Black - Ground
• Black with White Stripe - Factory Amplifier Ground
• Blue - Power Antenna / Factory Amplifier Remote Turn On
• Blue with White Stripe - Factory Amplifier Remote Turn on
• Orange – Dash Light Dimmer/Illumination
• Orange with White Stripe - Dash Light Dimmer/Illumination
• Brown - Mute / Not Used
• Green – Left Rear Speaker (+)
• Green with Black Stripe Left Rear Speaker (-)
• White – Left Front Speaker (+)
• White with Black Stripe – Left Front Speaker (-)
• Purple – Right Rear Speaker (+)
• Purple with Black Stripe – Right Rear Speaker (-)
• Gray – Right Front Speaker (+)
• Gray with Black Stripe – Right Front Speaker (-)
