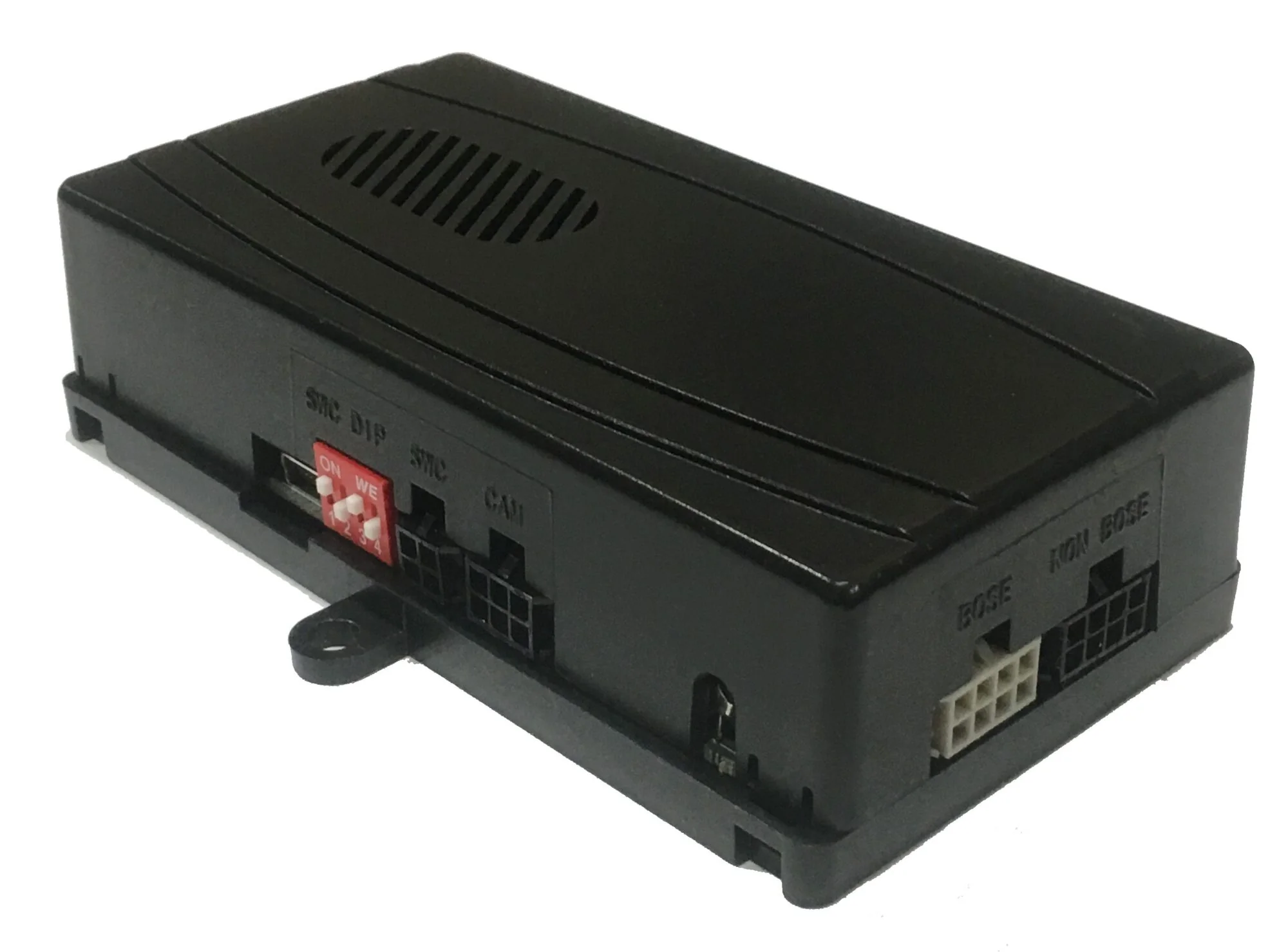

Crux DKGM-16 OnStar Radio Replacement interface w/ SWC Retention, & Double Din Dash Kit for Select GM LAN-29 Bit Vehicles 2006 – 2017

The CRUX DKGM-16 is a complete packaged kit that includes a Double Din Dash Kit, antenna adaptor, & premium Onstar radio replacement interface for amplified and non-amplified solutions for select General Motors LAN 29-Bit Vehicles.  This enhanced interface is also pre-programmed for the retention of steering wheel controls.

General Features:

• Retains factory features in select GM LAN 29-bit vehicles while functioning with an aftermarket radio.

• Pre-programmed to retain factory Steering Wheel Controls.

• The iPhone Voice Recognition (VR) feature is available from SWC on Kenwood, Pioneer, Alpine, and JVC radios.

• Supports Pick Up/End Call, Pick Up, and Toggle between 1st and 2nd Incoming call, AVRCP Track, and Seek.
• Supports Bose, non-Bose, and Y-91 audio systems.

• Includes Double DIN Radio Replacement Dash Kit
• Provides Factory Rear Seat Entertainment Activation. Requires Cable #CRUX2333A (sold separately).

• Retains factory front and back park assist system.

• Retains chime functions.

• Compatible with select 2006-2020 vehicles from GMC, Chevrolet, Cadillac
• Works with Bose Amplified & Non-Amplified Systems
• Designed to install a new aftermarket car stereo
• Provides accessory power (12-volt 10-amp)
• Pre-programmed to retain factory Steering Wheel Controls
• Retains R.A.P. (retained accessory power)
• Color-coded wires for easy installation
• Retains all safety and warning chimes
• Retains factory OnStar and backup camera
• Retains factory Bluetooth in vehicles 2008-upwards (if equipped with an OnStar device)
• Retains Rear Seat Entertainment (RSE) requires Crux CRUX-2333A (sold separately)
• Retains independently-controlled Dual-zone functions
• Choose Crux SOOGM-16W for 2012-2014 vehicles w/out navigation units (sold separately)
• Micro-B USB updatable
• Does not retain the factory XM
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty

Compatible Vehicles:

DKGM-16: Combo Category Includes Double-DIN Installation Kit with DKGM-49

BUICK

• 2008-2017 Enclave
• 2006-2011 Lucerne

CADILLAC

• 2006-2011 DTS

• 2007-2014 Escalade

• 2007-2009 SRX

CHEVROLET

• 2007-2013 Avalanche*

• 2007-2009 Equinox

• 2008-2016 Express Van**

• 2006-2013 Impala / Impala SS2014 – 2016 Impala Classic

• 2006-2007 Monte Carlo

• 2007-2014 Silverado 1500-3500 Pickup*

• 2007-2014 Suburban*

• 2007-2014 Tahoe*

• 2009-2017 Traverse GMC

• 2007-2016 Acadia 2017 Acadia Classic

• 2008-2017 Savana**

• 2007-2014 Sierra 1500-3500 Pickup*

• 2007-2014 Yukon*

HUMMER

• 2008-2009 H2


PONTIAC

• 2007-2009 Torrent

SATURN

• 2007-2010 Outlook

• 2008-2010 Vue


SUZUKI

• 2007-2008 XL7

1. *NOT compatible with 2012-Up SUVs/Trucks that are equipped with factory-installed Navigation radios.

2. **NOT compatible with Express and Savana vans that are powered by a diesel engine.

3. Supports Rear Entertainment System with special order harness #CJA2333A (sold separately).

4. If you would like to purchase a dash kit without retaining OnStar, please get part number DKGM-49

5. If you would like to just purchase the interface, please get the part number SOOGM-16
