AudioControl LC2i 2-channel line output converter for adding amps to your factory system
Audio Control LC2i 2 Channel Line Out Converter Accubass and Subwoofer Control for amps to your factory system

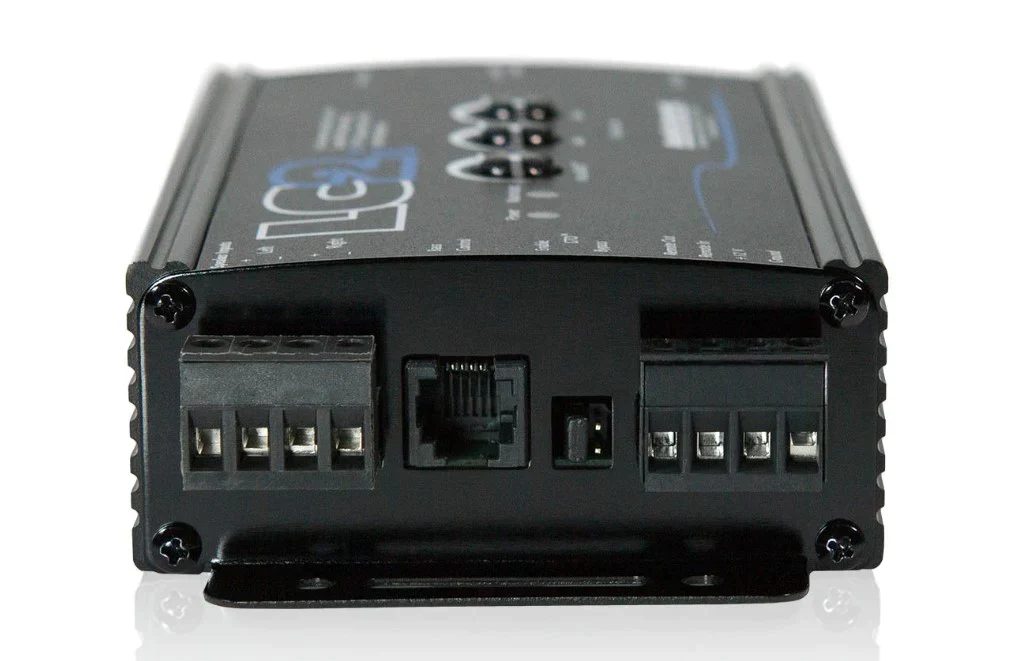

The LC2i is a compact, two-channel processor with active input circuitry, which allows it to accept speaker-level signals of up to 400 watts per channel from factory-installed source units or amplifiers. It converts them to high-quality preamp signals that can then be directed to after-market processors and amplifiers. As a result, users can enjoy maximum sound quality while maintaining factory volume and steering wheel controls.
General Features:
- Two channels of active speaker level inputs - Accepts 400-watt signals per channel
- AccuBASS processing for correction of bass roll-off
- Fixed and variable outputs with discrete-level controls
- GTO - Signal sensing inputs
- The 12-Volt trigger that will turn on LC2i
- Dual amplifier
- 9.5-volt preamp outs
- Level matching controls
- 12 Volt trigger output
- Input for optional subwoofer level control: AudioControl ACR-1
- Dimensions: 6-3/8"W x 3-1/8"D x 1-1/2"H
- Authorized Internet Dealer
- 5 Year Manufacturer's Warranty (*when installed by an authorized AudioControl dealer)
The LC2i Specifications
- Maximum speaker level input: 400 watts per channel
- Maximum Preamp Output: 9.5Vrms / 13V peak
- Optional Dash Level Control Remote: +0dB / -19dB
- Frequency response: 10 Hz - 100,000 Hz; ±1dB
- Total harmonic distortion: 0.01%
- Signal to Noise ratio: >110dB
- Input Impedance: 20K ohms
- Output Impedance: 150 ohms
- Power draw: 150 mA
- Recommended fuse rating: 1 Amp
- Weight: 1 pound.
What is in the package:
- LC2i owner's manual
- Two-Channel line-output converter
- Quality Control Certificate
⚠️Warning:
This product can expose you to, known to the State of California to cause cancer. For more information, go to P65Warnings.ca.
