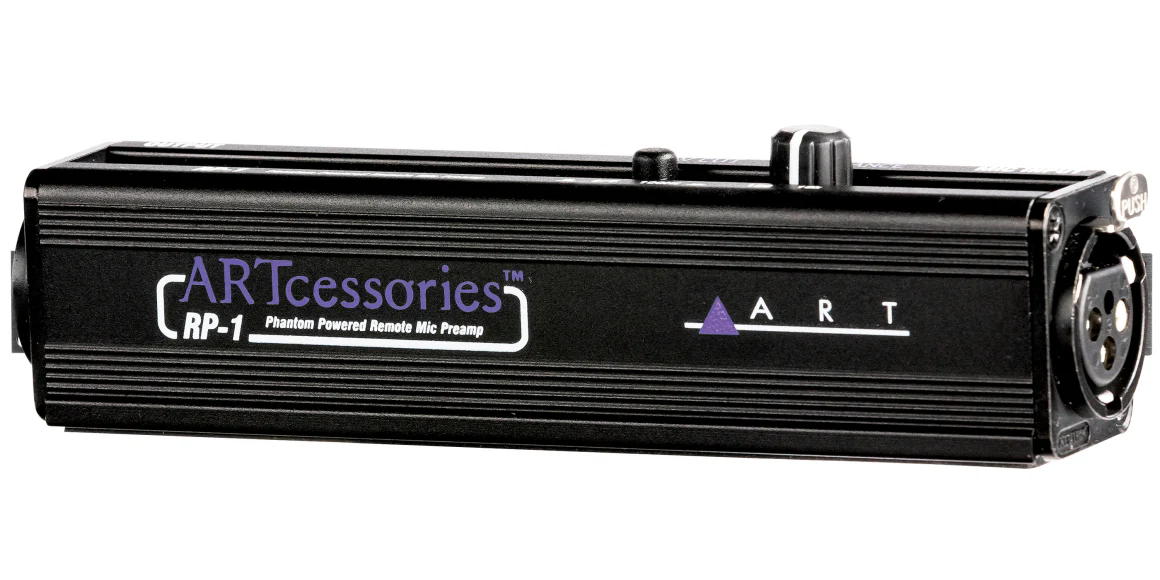

ART RP1 Remote Preamp

The RP-1 is a remote preamp designed for dynamic and ribbon microphones.

It has three main advantages. Firstly, it adds up to 28 dB of clean, low-noise gain, so its an ideal solution for low-output mics.

Secondly, it offers variable impedance so you can tailor the preamp response to your microphone for additional tonal flexibility.

Thirdly, it shortens the distance between the mic and preamp. This lets you minimize interference and signal loss by sending a balanced signal over a long cable run to your mixer or interface.

The Dual RP runs on phantom power but does not pass it, so its safe to use with delicate ribbon mics. It also features a switchable high-pass filter that cuts low frequencies to remove rumble and tighten bass.

General Features:

• Switchable low cut filter
• 100 Hz low cut filter
• Variable impedance control (150 ohms – 10k ohms)
• Adds low-noise, clean gain (28dB @ 10k ohms, 20dB @ 600 ohms)
• Runs off +48V Phantom power supply
• Low THD discrete circuitry (<0.002% @ 1kHz typ.)
• Balanced outputs

Specifications:

Inputs	1x XLR
Outputs	1x XLR
Input Impedance	150 Ω to 10 k Ω, variable
Maximum Input Level	-18 dBu
Maximum Output Level	+9 dBu
Maximum Gain	+27 dB
Total Harmonic Distortion	< .002% @1 kHz typ.
CMRR	>60 dB 20-20 kHz
Power Requirements	External Power requirements Standard 48V Phantom power supply, 8ma
Dimensions (HWD)	1.26" x 1.12" x 5.18" (3.2 cm x 2.84 cm x 1.32 cm)
Weight	0.31 lbs / 0.14 kg

**Specifications subject to change without notice
