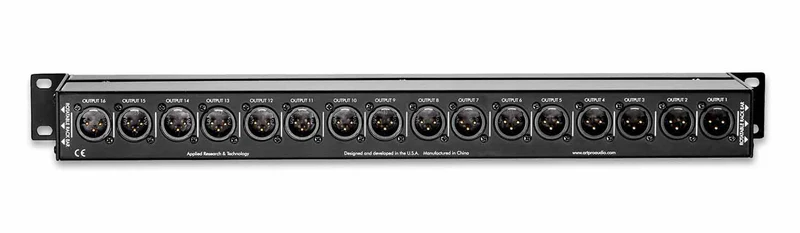

ART Audio P16 Rackmount 16-Ch Balanced XLR Patch Bay Passive Interface Patchbay

Ideal for any live PA rack, studio rack, or fixed installation where easy access to XLR inputs is required, the P16 brings all rear-mounted XLR inputs from various devices to one convenient single-space rack-mountable location. The P16 saves wear and tear on the connectors of expensive audio equipment by bringing all commonly used connections to the external patch bay.

All-steel chassis, black anodized finish, and secure, high-quality XLR connections front and back with internal connections made via PCB wiring ensure long-term reliability from the passive ART P-16 Balanced XLR rackmount patch bay.

General Features:

• 16 channels of balanced direct signals
• High-quality passive interface
• XLR connectors (female on the front, male on the rear)
• All connections are made via reliable PCB wiring
• 19-inch 1U-high rack mount with rugged, fully shielded black all-steel enclosure
• Reversible rack ears for added system flexibility
• Three-year warranty
• Connectors: Balanced XLR (female front, male rear)
• CMRR: > -95 dB (typical)
• Channel to Channel Isolation: > -95 dB (typical)
• Enclosure: Steel 1U high, 19" rack mount
• Dimensions (HWD): 1.75” x 19” x 3.5”
• Weight: 3.2 lbs
