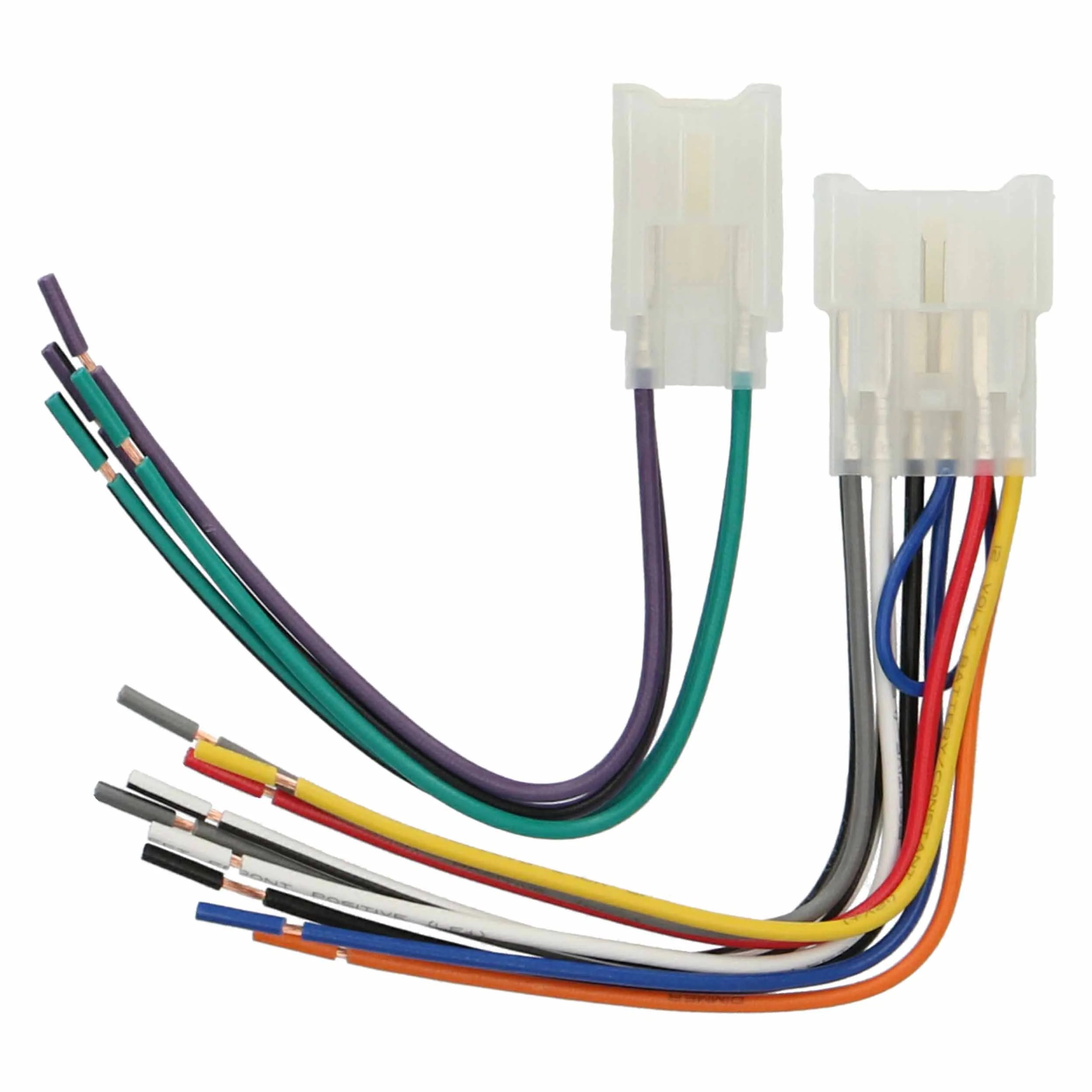

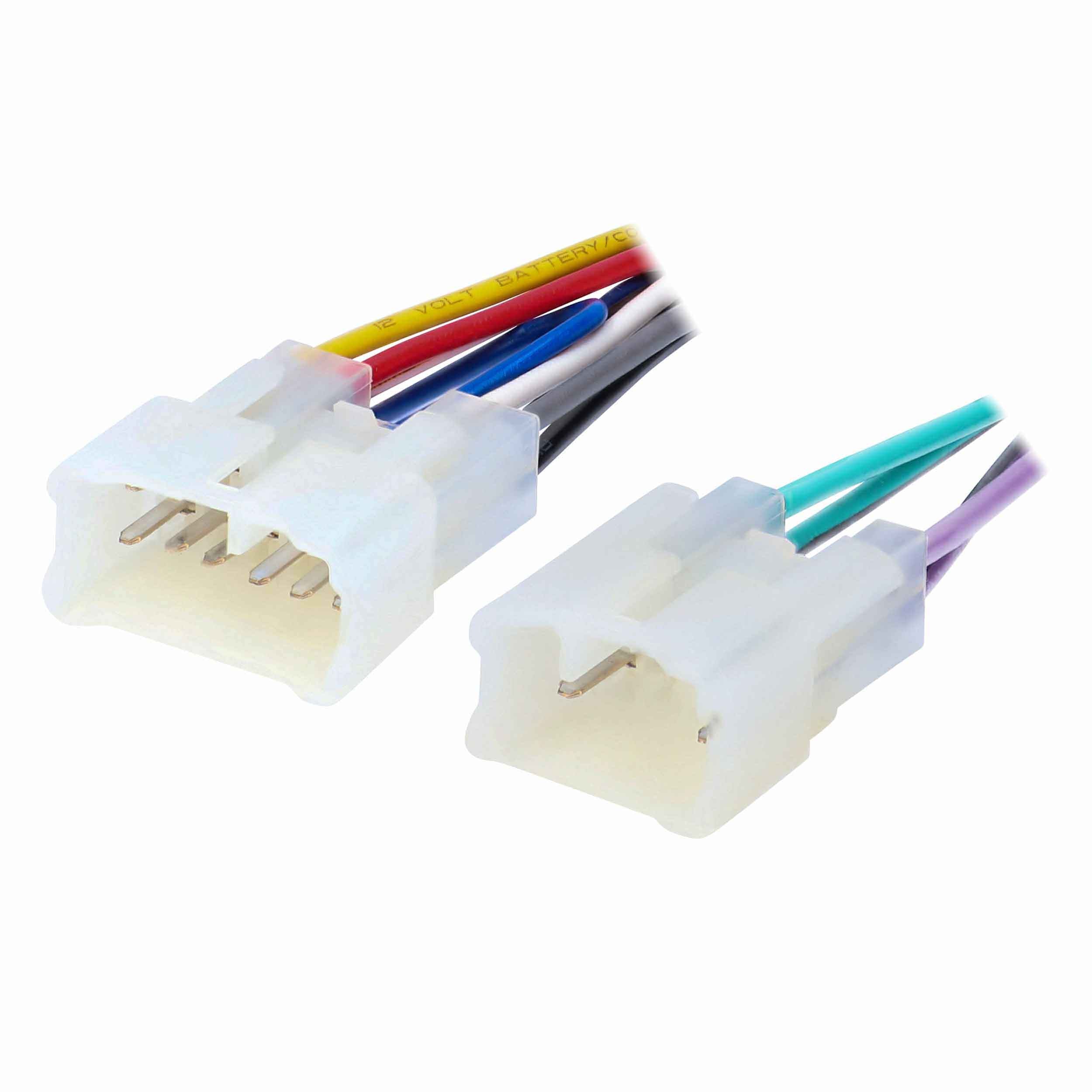

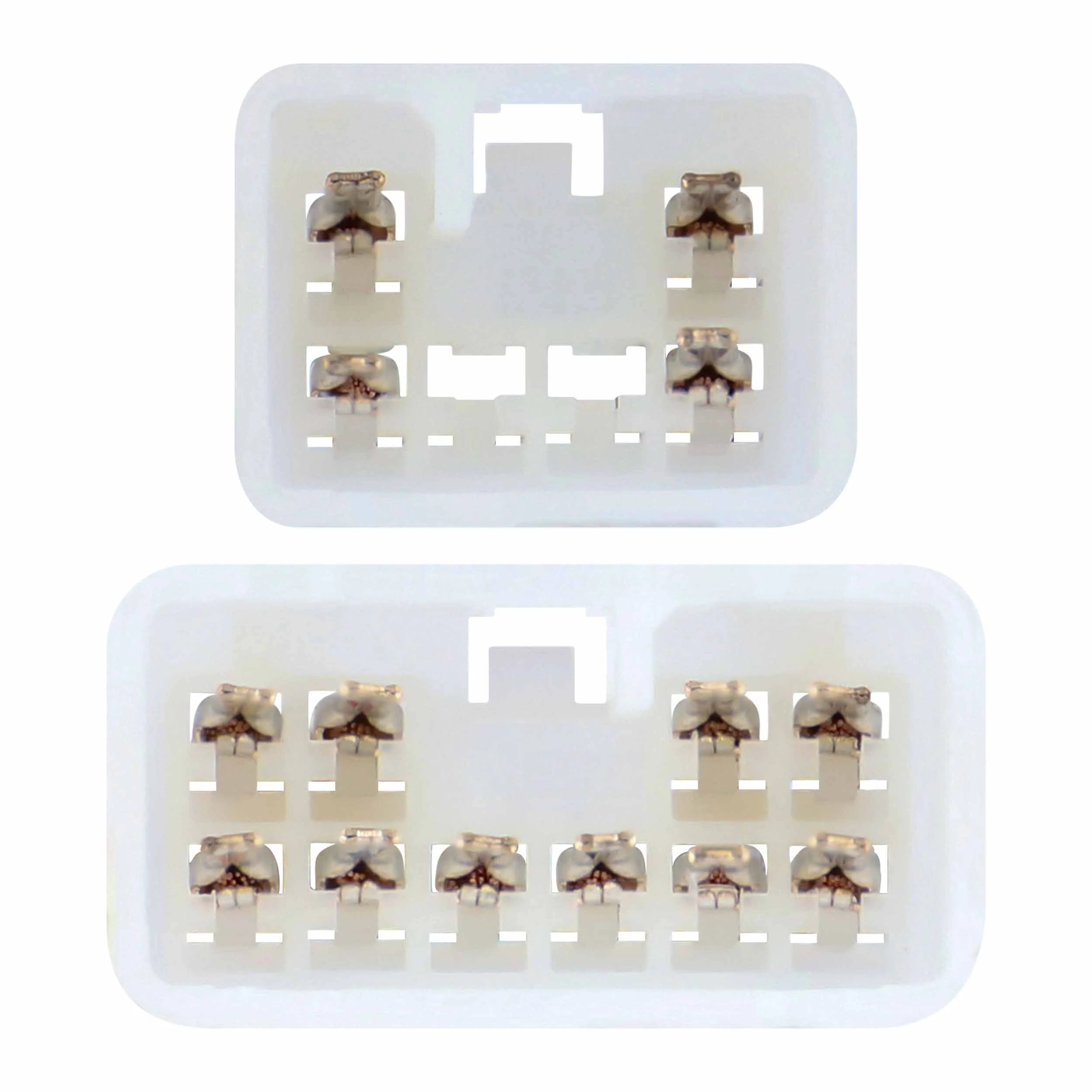

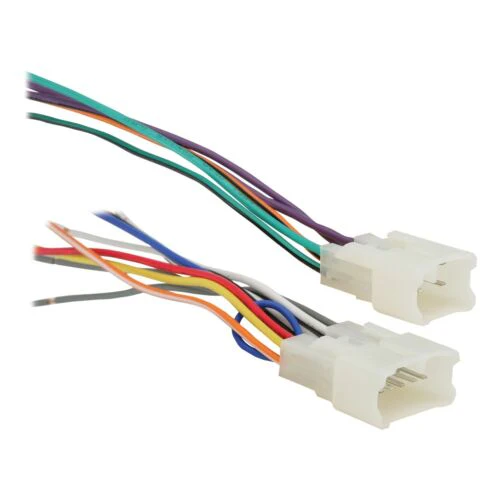

American International TWH-950 Radio Wiring Harness for Toyota 1987-2008 Power 4 Speaker

Interchange Part Number:

• Metra 70-1761
• American International TWH-950
• Scosche TA02B

For Non-Amplified Vehicles, Some Vehicles will have an add-on amp that follows the wires back to the amp and unplug the amp.

General Features:

• Wire harness to Install a new car stereo incompatible with select 1984-2020 vehicles from Toyota, Subaru, Scion

• Plugs into the car’s original factory radio connectors.
• Color-coded wires for easy installation to the aftermarket radio
• No wire cutting is needed for factory radio connectors.
• 1-Year Manufacturer's Warranty

Connections Color Codes:

• Yellow – 12V Constant
• Red – 12V Accessory
• Black - Ground
• Orange – Dash Light Dimmer/Illumination
• Green – Left Rear Speaker (+)
• Green with Black Stripe Left Rear Speaker (-)
• White – Left Front Speaker (+)
• White with Black Stripe – Left Front Speaker (-)
• Purple – Right Rear Speaker (+)
• Purple with Black Stripe – Right Rear Speaker (-)
• Gray – Right Front Speaker (+)
• Gray with Black Stripe – Right Front Speaker (-)

Compatible Vehicles:

Lexus:

• 1990 - 1991 ES250
• 1990 - 1992 LS 400

Scion:

• 2013 - 2016 FRS
• 2016 - 2016 iM
• 2012 - 2015 iQ
• 2005 - 2015 tC
• 2004 - 2006 xA
• 2004 - 2015 xB
• 2008 - 2014 xD

Subaru:

• 2019 - 2020 Ascent
• 2013 - 2020 BRZ
• 2016 - 2020 Crosstrek
• 2009 - 2018 Forester
• 2012 - 2020 Impreza
• 2013 - 2014 Impreza WRX
• 2012 - 2019 Legacy
• 2012 - 2019 Outback
• 2016 - 2020 WRX, WRX STI
• 2013 - 2015 XV Crosstrek

Toyota:

• 1987 - 2019 4Runner
• 2017 - 2020 86
• 1995 - 2018 Avalon
• 1987 - 2017 Camry
• 1999 - 2008 Camry Solara
• 1987 - 2005 Celica
• 2018 - 2018 C-HR
• 1987 - 2019 Corolla
• 1987 - 1988 Corolla FX, FX16
• 2017 - 2018 Corolla iM
• 2000 - 2005 Echo
• 2007 - 2014 FJ Cruiser
• 2008 - 2019 Highlander
• 1988 - 1994 Land Cruiser
• 2005 - 2014 Matrix
• 1987 - 1995 MR2
• 2000 - 2003 MR2 Spyder
• 1992 - 1997 Paseo
• 1987 - 1995 Pickup
• 1991 - 1997 Previa
• 2004 - 2019 Prius
• 2012 - 2019 Prius C
• 2017 - 2020 Prius Prime
• 2012 - 2017 Prius V
• 2010 - 2015 Prius, Prius Plug-In (PHV)
• 1996 - 2018 RAV4
• 2001 - 2019 Sequoia
• 1996 - 2014 Sienna
• 1999 - 2008 Solara
• 5 - 1992 Supra
• 1993 - 1998 T-100
• 1995 - 2019 Tacoma
• 1987 - 1998 Tercel
• 2000 - 2019 Tundra
• 1987 - 1990 Van
• 2009 - 2015 Venza
• 2007 - 2018 Yaris
