Alpine R-A75M R Series Mono Power Density Amplifier with R-SB10V 10 Inch Subwoofer Enclosure and Free RUX-KNOB.2 Remote Bass Knob

Package Includes:

• (1) Alpine R-SB10V Loaded 10" 600w S-W10D4 Subwoofer Ported Sub Enclosure Box
• (1) Alpine R-A75M 750-Watt RMS Mono Car Audio Amplifier Subwoofer Amp Class-D
• (1) Alpine RUX-KNOB.2 Remote Bass Knob

Alpine's R-Series R-A75M amplifier cleanly reproduces the bass in your music so you can enjoy the enhanced realism you want in your vehicle, even when you're playing high-res music. They've applied some hot technology from their top-of-the-line X-Series amplifiers into this R-Series amp.

The R-SB10V comes loaded with Alpine's R-W10D4 subwoofer wired for 2-ohm impedance. The sub's Kevlar-reinforced cone and Santoprene surround give you solid bass response at power levels up to 750 watts RMS.

Alpine R-SB10V Loaded 10" 750w R-W10D4 Subwoofer Ported Sub Enclosure Box

Unique to Alpine, the 10-inch subwoofer is available in a single or “linked” format with an optional mounting bracket. This innovative design allows the sound consumer the option to easily add more bass to their system.

Optimized Performance
The ported enclosure design delivers a higher total sound output for deep, powerful bass, reliable sound reproduction, and overall great sound quality. The 10-inch enclosure is tuned to 36 Hz for optimized performance with Alpine’s S-and-R-Series subwoofers.

General Features:

• Includes R-W10D4 wired in parallel
• 750W RMS power handling
• 2Ω Impedance
• Ported enclosure design
• Frequency response: 26-200 Hz
• Vented enclosure tuning frequency: 36 Hz
• Dimensions 16-inch W x 12.6825-inch H x 14.5-inch D

What is in the R-SB10V box:

• Ported enclosure loaded with one R-W10D4 subwoofer driver
• Rubber flange protector (installed on the subwoofer)

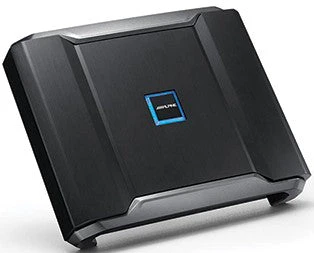

Alpine R-A75M R-Series Class D Monoblock Subwoofer Amplifier (750 Watts RMS)

The new R-Series amplifiers produce accurate imaging and dependable power. Use them with the R-Series speakers and amplifiers for a loud and fun experience.

The R-Series Amplifiers have a diagnostic LED located behind the blue Alpine Jewell on the top of the amplifier. Blue light means the amplifier is operating normally. A red blinking light means the amplifier is currently too hot for operation and needs to cool down. A solid red light can mean three things: 1. The amplifier circuit is abnormal. 2. Temperature is too high. 3. Power supply voltage is too high.

The R-Series amplifiers utilize Alpine’s advanced amplifier platform that takes the classic Class-D amplifier circuit and adds dual post-filter feedback loops for unmatched accuracy and control. This technology., Originally launched in the premium X-Series amplifiers, the R-Series amplifiers produce efficient power with enhanced dynamic range, qualifying them to be Hi-Resolution Audio compliant.

General Features:

• Power output 2-Ohm @ 14.4 Volts: 750 W RMS X 1
• Power output 4-Ohm @ 14.4 Volts: 500 W RMS X 1
• THD 10 W into 4 Ohms: Less Than 0.02%
• THD 10 W into 2 Ohms: Less Than 0.03%
• THD Rated Power 4 Ohms: Less Than 0.3%
• THD Rated Power 2 Ohms: Less Than 1.0%
• S/N Ratio: 1 W into 4 Ohms: >85dB
• Frequency Response: +0/-3 dB 10Hz - 400Hz
• Frequency Response: +0/-1 dB 15Hz - 325Hz
• Input Sensitivity: Hi (0.5 - 10V), Low (0.2 - 4.0V)
• Crossover: Variable HPF/LPF, (50Hz - 400 Hz)
• Dimensions: Width - 10-3/4", Height - 2", Depth - 7-7/8"
• Weight: 7lb

What is in the R-A75M box:

• R-A75M Mono Amplifier
• 4 x M4x20 Self-Tapping Screws
• 8 x Mounting Bracket Screws
• 4 x Mounting Brackets
• 1 x Hexagon Wrench

Alpine RUX-KNOB.2 Remote Bass Knob

• Remote level controller for Alpine amplifiers
• Mono amps
• Subchannel of 5-channel amps
• Bridged channels 3/4 of the X-A70F
• Adjusts gain from 0 to -12 dB
• Multi-amp capable
• 16' connection cable

We are Authorized Dealers, and the unit will come with a full manufacturer's warranty
