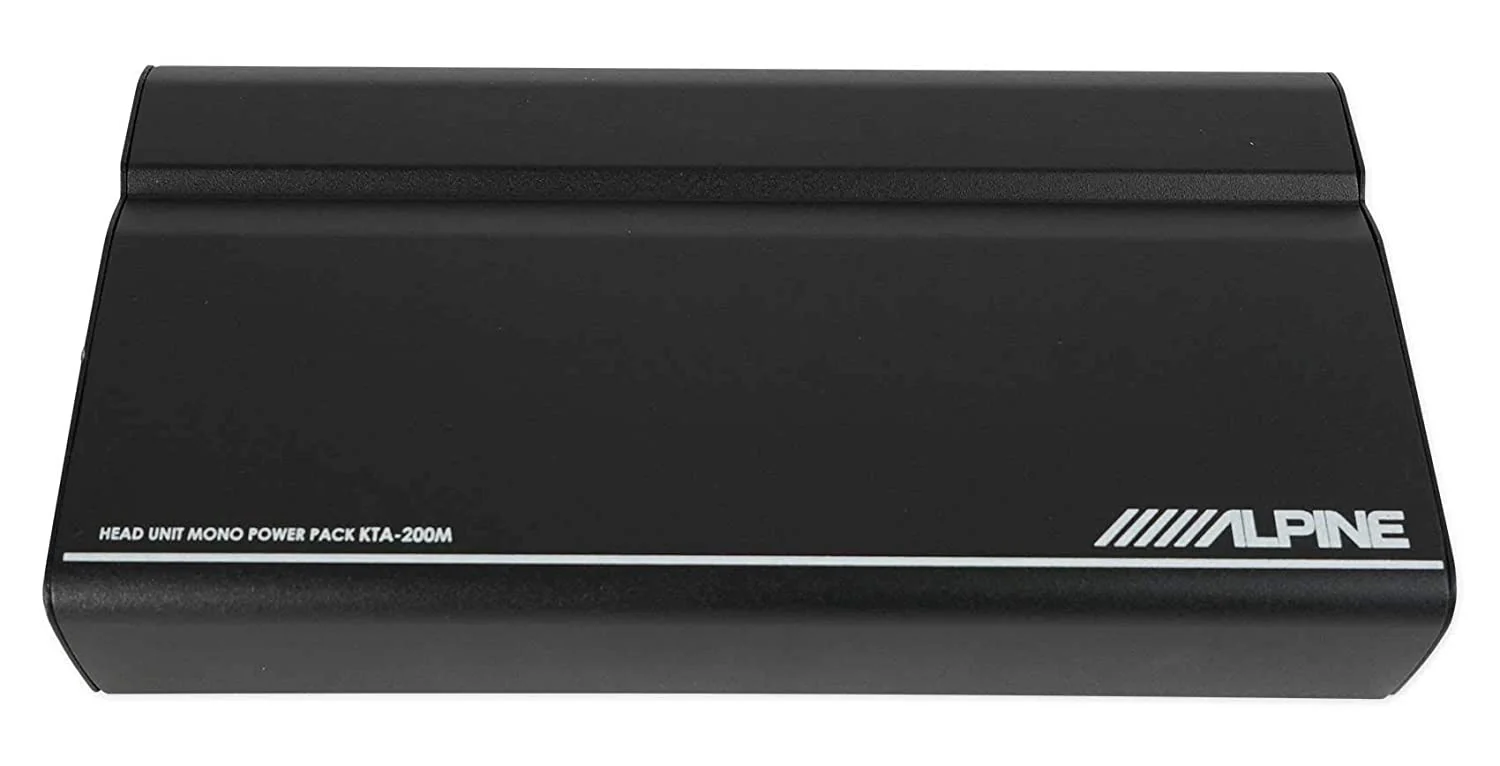

This bundle includes an Alpine KTA-200M Mono 400-Watt Power Pack Amplifier, an Alpine SBT-S10V Truck Enclosure with a 10" SWT Subwoofer, and an Alpine RUX-KNOB.2 Remote Bass Knob.

The KTA-200M fits into the open space behind Alpine’s iLX-W650 7-inch Mech-Less (no CD/DVD) Audio/Video receiver to create Alpine’s unique Power Stack application. The compact footprint of the amplifier (7-inch W x 1.5-inch H x 3.5-inch D) and the shallow chassis of the iLX-W650 (1.9-inch D) occupy the same depth as a traditional 2-DIN chassis, resulting in an easy-to-hideaway bass solution that adds more power to the sound system without occupying space. The KTA-200M follows the same format as the KTA-450 4-Channel Power Pack Amplifier in a compact size, easy installation, and overall power. While designed to “stack” behind the iLX-W650 or similar 2-DIN radio, both amplifiers can also be used as standalone solutions in vehicles that don’t have space for a traditional amplifier. The KTA-200M produces 400 watts with Alpine’s DPP technology. During powerful or “dynamic” passages of music, DPP will adapt to the piece's needs by adjusting the amplifier's gain and delivering bursts of power that match the music's peak demands. Alongside this is the new voltage-adapting input circuit, which maintains the maximum source signal level without clipping.

General Features:

• Power Stack is compatible with the Alpine iLX-W650
• compact mono subwoofer amplifier
• Alpine’s Class D Amplifier Circuit with DPP
• Dynamic Peak Power (DPP) technology adds a burst of power when needed
• CTA-2006 compliant
• 100W x 1 RMS @ 4Ω, Power Outputs
• 200W x 1 RMS @ 2Ω, Power Outputs
• 400W x 1 DPP @ 4Ω, Power Outputs
• Signal to Noise Ratio 85dB (ref. 1W into 4Ω)
• ≤0.1% THD+N (ref. 10W into 2Ω)

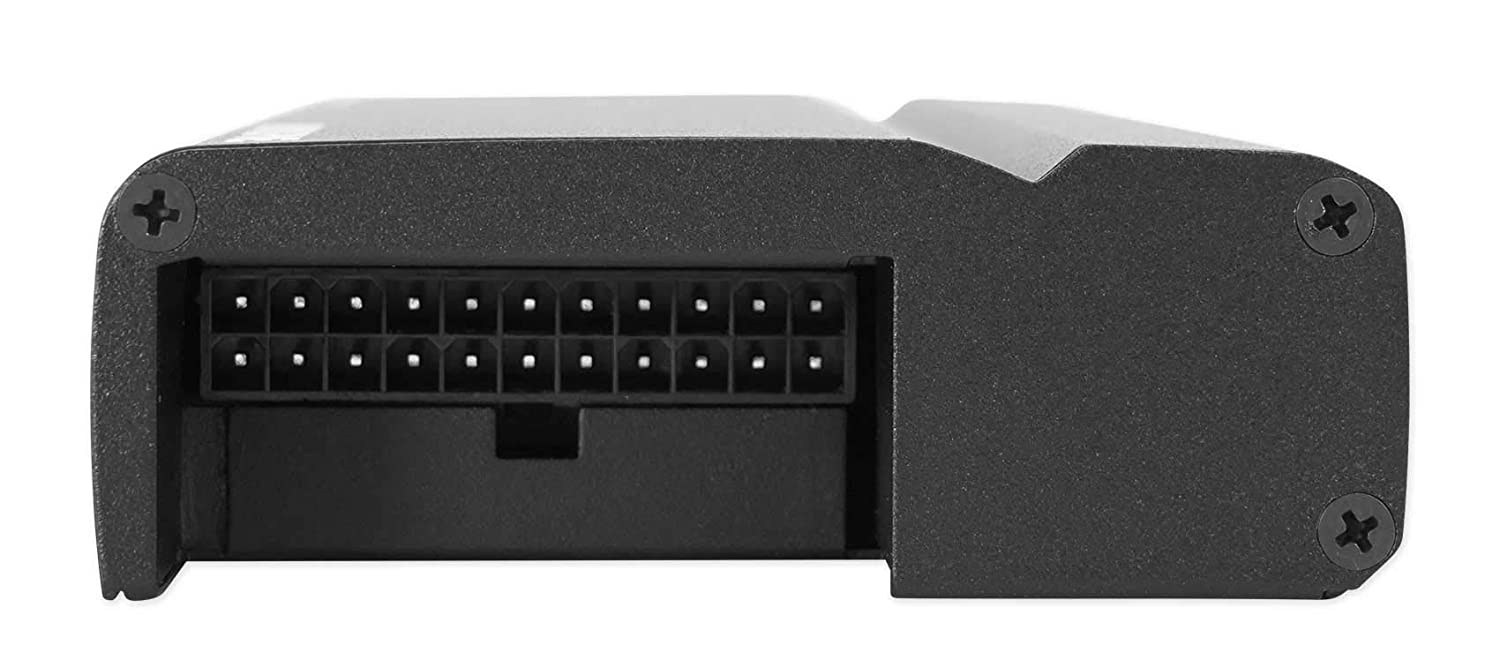

• Single-side 22-pin connector

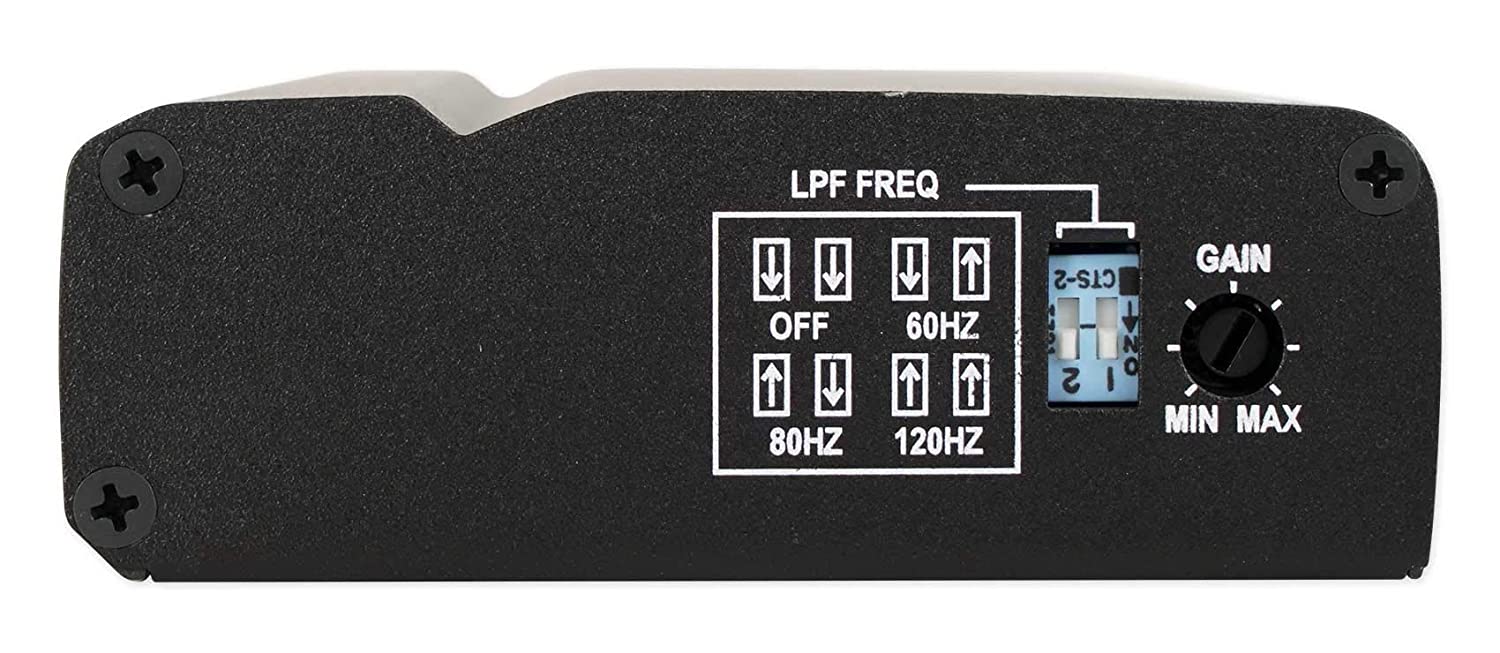

• selectable low-pass filter (60, 80, 120 Hz at 12 dB/octave)
• preamp and speaker-level inputs
• RCA inputs (selectable, Low range=0.2-4V)
• Sound controls; Crossovers-Off/60Hz/80Hz/120Hz Linkwitz Riley LP Filter @ -24dB/Oct. (selectable); Input gain setting (variable)
• Wiring, hardware, and fuses are not included with the amplifier
• Power Stack bracket included for mounting the amp behind the Alpine iLX-W650 digital multimedia receiver
• Authorized Dealer
• 1-year Warranty

Alpine SWT-S10 1200W Max Single 10" Sealed Subwoofer Bass Tube Enclosure

Combining the intense low-bass performance and ground-shaking output of the traditional Type-R subwoofers in a thin package optimized for tiny enclosures. The SWT 10” Truck Subwoofer has been engineered to offer more installation flexibility without sacrificing enormous output, building the ideal sound system for your truck. It is 4-1/8” deep. These subs deliver deep bass performance that is typically unavailable in a car. The vented pole optimized for a 4-1/8” deep box is the ideal enclosure size, meaning excellent bass performance can fit just about anywhere in your truck.

General Features:

• Single 10" Sealed Subwoofer Tube Enclosure
• 1200 Watts MAX Power Handling
• 250 Watts RMS Power Handling
• Final Impedance: 4 ohms
• Preloaded with a single 10" Subwoofer
• Sealed enclosure with embroidered black carpet
• Enclosure Dimensions: 11.25"W x 23.65" D
• 1-year Manufacturer's Warranty

Subwoofer Features:

• 10" Passive Subwoofer
• Push SPK Terminal
• Frequency Response: 35-200 Hz
• Sensitivity: 90dB

Enclosure Features:

• Tube enclosure
• Black Carpet Finish with White Alpine Logo
• Grille included

What is in the SWT-S10 package:

• W10S4 owner's manual
• One 10" Subwoofer per box
• Adhesive-backed foam gasket
• Application Guide
• Online product registration information
• Warranty Information

Alpine RUX-KNOB.2 Remote Bass Knob
With the RUX-KNOB, get complete control over your PDX-M6 or PDX-M12 amplifier conveniently from inside the car. With the RUX-KNOB installed inside the vehicle cabin, easily adjust the bass gain of your amp while seated inside.
