Alpine PSS-24WRA Complete Audio System for 18-Up Jeep Wrangler & 20-Up Gladiator

Compatible Vehicles:

• 2018 – UP JEEP WRANGLER, 4DR / NON-AMPLIFIED
• 2020 – UP JEEP GLADIATOR, NON-AMPLIFIED

TOP-OFF SOUND
Your Jeep begs for top-off drives, whether cruising down the highway or weaving through trails, so you need a sound system that delivers music for all your adventures. The PSS-24WRA is a 300-Watt Complete Audio System Upgrade Package for the four-door, non-amplified 2018–Up Jeep Wrangler and non-amplified 2020–Up Jeep Gladiator.

COMPLETE PACKAGE
Go beyond your wildest expectations for sound with this complete sound upgrade package. The PSS-24WRA has five channels of powered sounds that replace your factory system. The package includes two sets of 6.5” weather-resistant mid-bass drivers and 1” weather-resistant tweeters that replace the front and rear soundbar factory speakers, an 8” powered, compact subwoofer, and a 4-channel power pack amplifier.

TUNED FOR JEEP®
The PSS-24WRA complete audio system is tuned for the unique cabin environment of the 2018-up Jeep Wrangler and 2020–up Jeep Gladiator. The weather-resistant speakers are designed for powerful, top-off performance unhindered by weather, wind, or other noise while driving. The 6.5” mid-bass drivers bring out the full potential of your sound, while the tweeters capture the high frequencies often lost in music reproduction. The 8” compact subwoofer adds deep, accurate bass that grounds your sound system.

PLUG-AND-PLAY INSTALLATION
Vehicle-specific speaker connectors and pods designed for the 2018-up Jeep Wrangler and 2020–up Jeep Gladiator are included for plug-and-play installation. Tweeter adapter plates use the original factory tweeter locations to remove the guesswork from installation. Vehicle-specific mounting brackets are included to secure the 8” compact subwoofer and 4-channel amplifier under the passenger seat without drilling.

SYSTEM COMPATIBILITY
The PSS-24WRA is compatible with the i407-WRA-JL 7-Inch Multimedia Receiver and X409-WRA-JL 9-Inch Weather-Resistant Navigation System with Off-Road Mode. The PSS-24WRA also includes a vehicle-specific T-harness for installation with the factory radio into compatible four-door, non-amplified NEW 2018 – 2020 Jeep® Wrangler and non-amplified 2020 – Up Jeep® Gladiator.

General Features:

• Five-channel powered complete audio system upgrade package
• Compatible with four-door, non-amplified 2018 - Up Jeep Wrangler and non-amplified 2020 - Up Jeep Gladiator
• Also compatible with two-door, non-scissor front seats in 2019 - Up Jeep Wrangler
• Includes Alpine's SPV-65X-WRA, SPV-65-JLT, PWE-S8, and KTP-445U
• 180W, 4-channel Power Pack amplifier
• 120W, 8" powered subwoofer
• (2x) 6.5" weather-resistant mid-bass drivers
• (2x) 1" weather-resistant teteron dome tweeters with vehicle-specific connectors and crossovers
• Vehicle-specific front speaker pods with vehicle-specific connectors
• Tweeter adapter plates allow for the use of the original factory tweeter locations
• SPV-65-JLT weather-resistant rear soundbar speaker system
• Rugged, premium grills designed to emulate the factory look and appeal
• Vehicle-specific connectors for plug-and-play speaker installation 
• Utilizes factory bolt locations
• Durable stamped steel frame speaker basket design
• Includes a template for mounting
• This complete audio system vehicle-specific T-harness for installation with OEM radio into compatible 2018 2018-Up Jeep Wrangler and 2020-Up Jeep Gladiator vehicles
• Vehicle-specific mounting brackets allow the powered sub and amp to be secured

• Front (SPV-65X-WRA):


  • Power handling: 75 watts RMS (225 watts peak)
  • Frequency response: 65kHz – 22kHz
  • Nominal impedance: 4 ohms
  • Weather-resistant: IP55
• Rear (SPV-65-JLT):

• • Power handling: 90 watts RMS (270 watts peak)
  • Frequency response: 50kHz – 22kHz
  • Nominal impedance: 4 ohms
  • Weather-resistant: IP55

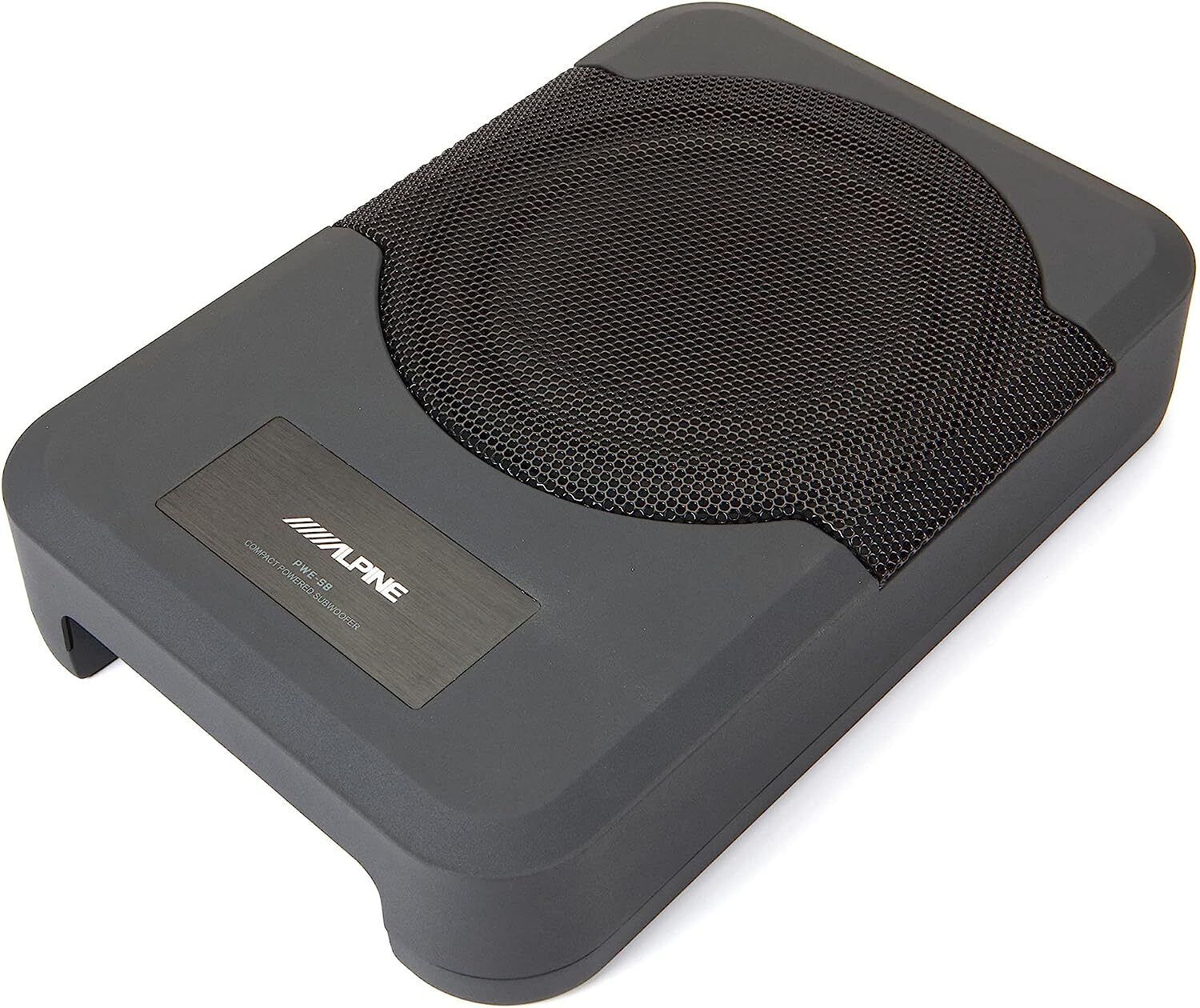

• Powered Subwoofer (PWE-S8):

• • 120 watts RMS (240 watts peak)
  • Frequency response: 32 - 150Hz
  • Variable low-pass crossover (80-200 Hz)
  • Variable phase control (0-180 degrees)
  • preamp- and speaker-level inputs
• Four Channel Power Pack Amplifier (KTP-445U):

• • 45 watts RMS x 4 at 4 or 2 ohms
  • 90 watts RMS x 2 bridged at 4 ohms
  • Selectable high-pass filters (60, 80, or 120 Hz at 12 dB/octave)
  • Switchable RCA or speaker-level inputs
• Dimensions: 27” L x 18.5” W x 19.5” H
• Weight: 40lbs
• Authorized Dealer
• 1-year Manufacturer's Warranty

Note: Not compatible with the factory-equipped subwoofer system

What's in the PSS-24WRA package:

• PSS-24WRA owner's manual

This Complete Audio System Alpine kit contains five individually packaged items:

• PWE-S8 Subwoofer
• KTP-445U Amplifier
• SPV-65X-WRA 6.5" Component Speakers
• SPV-65-JLT 6.5" 2-Way Speakers
• ALP-POD-JLTR Speaker Pods
• PSU-BKT-JL-R PWE Right Bracket JL
• PSU-BKT-JL-L PWE Left Bracket JL
• ALP-HRN-PSU300 PSU Power Harness
• ALP-THRN-CH2 Chrysler T-Harness
• CT6 6" Cable Ties
• PHPSM412 Pan Head Phillips Screw M4x12
• SLWM4 M4 Split Lock Washers
• PHSCR832 8-32 Pan Head Phillips screws
• PSS-WRA-IM Installation Manual
