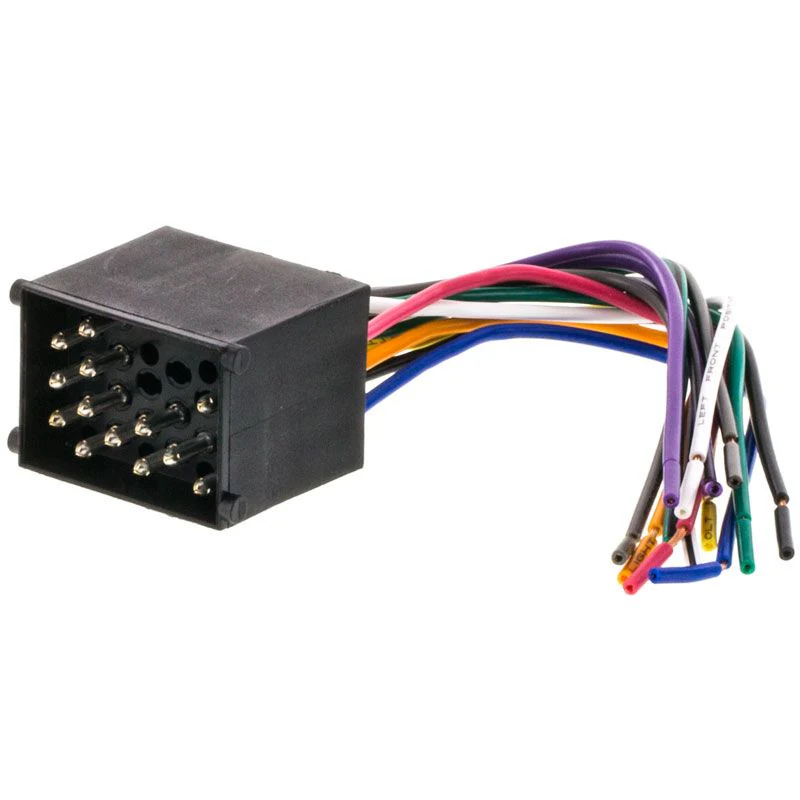

Absolute A470-8590 Wiring Harness 1987-2005 BMW (70-8590, BWH-470, BW01B)

Interchange Harness Part: Metra 70-8590, Scosche BW01B, American International BWH-470

General Features:

• Speaker Wiring Harness
• For Non-Amplified Vehicles Only
• 17-Pin Plug Plugs Into Factory Radio
• Works With Select 1987-2005 BMW Vehicles
• Provides Power And 4 Speakers
• Heat Resistant For Lasting A Lifetime
• Allows Installation Of Aftermarket Radio Using Factory Wiring And Connector
• High Quality, ABS Plastic Molded Connector For The Perfect Fit
• Made With The Highest Quality And Precision Out Of Any Other Brand
• Pre-Stripped To Make Installation Quick And Easy
• No Cutting Of Factory Wiring Needed

Connections:

• Yellow - 12V Constant
• Red - 12V Accessory
• Black - Ground
• Blue - Power Antenna
• Orange - Dash Light Dimmer/Illumination
• Green - Left Rear Speaker (+)
• Green with Black Stripe Left Rear Speaker (-)
• White - Left Front Speaker (+)
• White with Black Stripe - Left Front Speaker (-)
• Purple - Right Rear Speaker (+)
• Purple with Black Stripe - Right Rear Speaker (-)
• Gray - Right Front Speaker (+)
• Gray with Black Stripe - Right Front Speaker (-)

Compatibility Vehicles:

BMW:

• 1990-2005 3 Series
• 1990-2001 5 Series
• 1987-2001 7 Series
• 2000-2001 X5
• 1996-2001 Z3
