2 Absolute USA 12V 30/40 Amp SPDT Automotive Marine Bosch / Tyco Style 5 Pin Relay with Wires & Harness, Socket & In-line Water-resistant ATC Fuse Holder

RLS125-2 + SRS105-2 + FATC-2

General Features:

• Outline Dimensions: 28.0*28.0*25.0mm

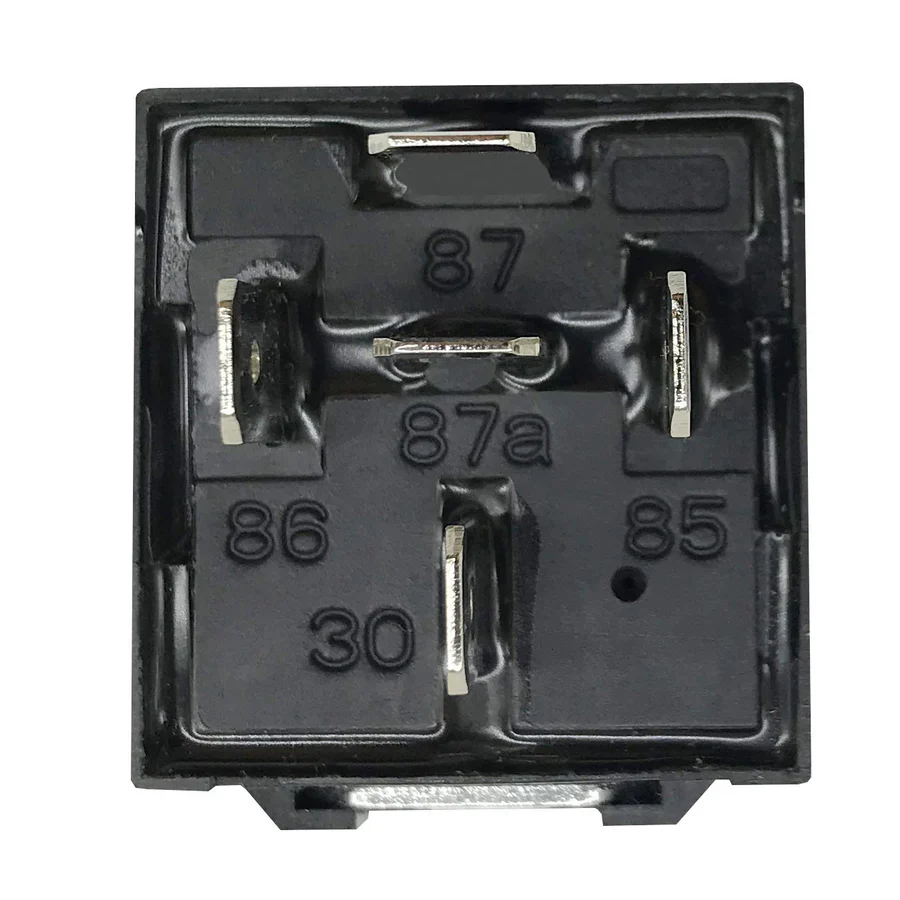

• Relay Sockets Are 5 Wires. Yellow (Pin87 Light/Accessory), Red (Pin87a), White (Pin86 Switch), Blue (Pin30 Positive), Black (Pin85 Ground)
• 40A No/30A NC High Switching Capability Auto Relay-Harness
• Including 5 Prong Relays, 5 Prong Sockets & Wires. Relays and Sockets Are Separated for Various Usages. English Manual Attached
• For Automotive Electrical Appliances, such as Lights, Air conditioners, Windshield wipers, and others, turning on/off almost any device is possible.
• 12v 5-Prong Relays With 5-Prong Sockets Wires (Pigtails)
• Package Including 5 Relays And 5 Sockets with Wires for Car Electronic Applications to Turn-On/Off Almost Any Device
• Heavy-Duty Impact Molded Relay Socket With 5 Wires. Yellow (Common), Red (Normally Closed), And Blue (Normally Open)
• 40a/30a High Switching Capability
• General Purpose Relay
• Automotive Bosch / Tyco Style Relay
• Single Pole Double Throw
• 5 Pin
• 30/40 Amps
• 12v Dc
• Useful for Integrating Your Vehicle's Alarm System
• Control Power Windows, Door Locks, Light, Etc. From Your Security System
• Can Be Used with The Absolute Srs105 or Srs103 Relay ATC Fuse Holder Socket



Specification:

• No 40a 14vdc
• Nc 30a 14vdc
• Max Operating Current: 40a
• Max Operating Voltage: 27v
• Insulation Resistance: 100mω
• Dielectric Strength (Coil and Contact): 500vac
• Ambient Temperature: -40°C~+85°C
• Operate/Release Time: 10ms/10ms
• Mechanical Life: 1000000min
• Electrical Life: 100000min

Absolute RLS125 12-VCD Automotive Bosch / /Tyco Style Relay SPDT 30/40 AMP

General Features:

• General Purpose Relay
• Automotive Bosch Tyco Style Relay
• Single Pole Double Throw
• 30/40 Amps
• 12V DC
• Useful for integrating your vehicle's alarm system
• Control power windows, door locks, lights, etc., from your security system
• Can be used with the Absolute SRS105 relay socket
• Authorized Internet Dealer
