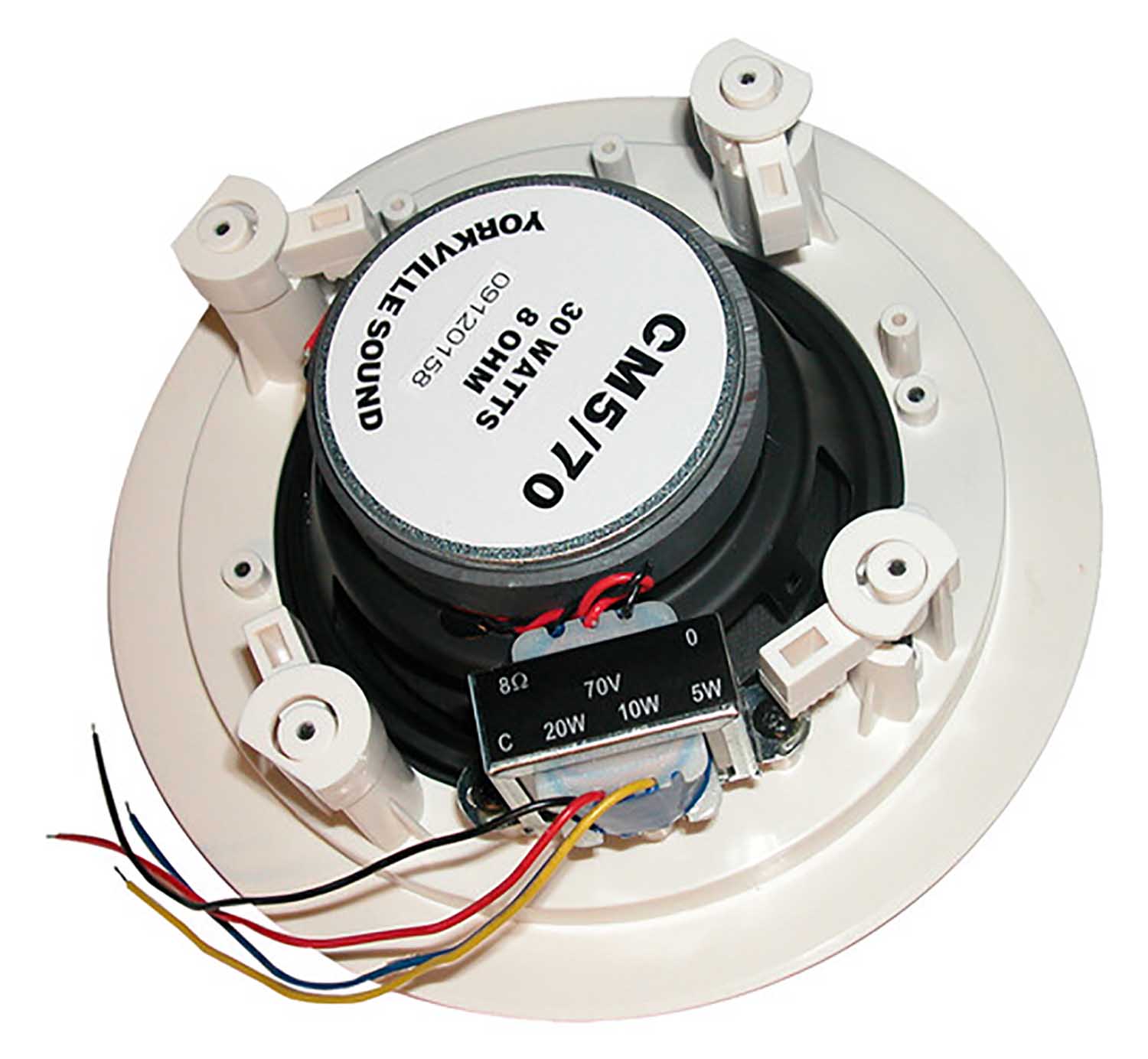

Yorkville Sound CM5/70, Ceiling Mount 5 Inch Speaker 30W with Metal Grill Mounting Hardware 70 Volt - White
The Yorkville Sound CM5/70 is a 30W, 5”, high-performance ceiling-mount loudspeaker. Ideal for any background music or paging system where superior sound quality is a priority, this speaker is made for louder club or restaurant / retail environments. Built in 70V taps at 5, 10 or 20 watts as well as optional 8-ohm (25 watt) operation means that virtually any amplification or paging system, including the Coliseum CA1 or CA1T can drive the CM5/70.
Product Specification:
System Type: Ceiling Speaker
Active or Passive: Passive
Power Rating (Watts): 30
Nominal Impedance (Ohms): 8 / 70-volt Transformer
Sensitivity (dB @1Watt/1m): 91
Frequency Response (Hz +/- 3dB): 150 - 20k
Driver Configuration: Single 5 inch
HF Dispersion (°H x °V): 90 x 90
Inputs - Screw Terminal: Solder Lugs
Enclosure Materials: ABS Plastic
Grille: Perforated Metal
Wiring: 5W (Blue) 10W (Yellow) 20W (Red) for 70V Operation
Dimensions (DWH xbackW, inches): 8 x 3
Dimensions (DWH xbackW, cm): 20 x 7.6
Weight (lbs/kg): 3.0 / 1.4
The Yorkville Sound CM5/70 is a 30W, 5”, high-performance ceiling-mount loudspeaker. Ideal for any background music or paging system where superior sound quality is a priority, this speaker is made for louder club or restaurant / retail environments. Built in 70V taps at 5, 10 or 20 watts as well as optional 8-ohm (25 watt) operation means that virtually any amplification or paging system, including the Coliseum CA1 or CA1T can drive the CM5/70.
Product Specification:
System Type: Ceiling Speaker
Active or Passive: Passive
Power Rating (Watts): 30
Nominal Impedance (Ohms): 8 / 70-volt Transformer
Sensitivity (dB @1Watt/1m): 91
Frequency Response (Hz +/- 3dB): 150 - 20k
Driver Configuration: Single 5 inch
HF Dispersion (°H x °V): 90 x 90
Inputs - Screw Terminal: Solder Lugs
Enclosure Materials: ABS Plastic
Grille: Perforated Metal
Wiring: 5W (Blue) 10W (Yellow) 20W (Red) for 70V Operation
Dimensions (DWH xbackW, inches): 8 x 3
Dimensions (DWH xbackW, cm): 20 x 7.6
Weight (lbs/kg): 3.0 / 1.4
Original: $30.00
-65%$30.00
$10.50Description
The Yorkville Sound CM5/70 is a 30W, 5”, high-performance ceiling-mount loudspeaker. Ideal for any background music or paging system where superior sound quality is a priority, this speaker is made for louder club or restaurant / retail environments. Built in 70V taps at 5, 10 or 20 watts as well as optional 8-ohm (25 watt) operation means that virtually any amplification or paging system, including the Coliseum CA1 or CA1T can drive the CM5/70.
Product Specification:
System Type: Ceiling Speaker
Active or Passive: Passive
Power Rating (Watts): 30
Nominal Impedance (Ohms): 8 / 70-volt Transformer
Sensitivity (dB @1Watt/1m): 91
Frequency Response (Hz +/- 3dB): 150 - 20k
Driver Configuration: Single 5 inch
HF Dispersion (°H x °V): 90 x 90
Inputs - Screw Terminal: Solder Lugs
Enclosure Materials: ABS Plastic
Grille: Perforated Metal
Wiring: 5W (Blue) 10W (Yellow) 20W (Red) for 70V Operation
Dimensions (DWH xbackW, inches): 8 x 3
Dimensions (DWH xbackW, cm): 20 x 7.6
Weight (lbs/kg): 3.0 / 1.4
