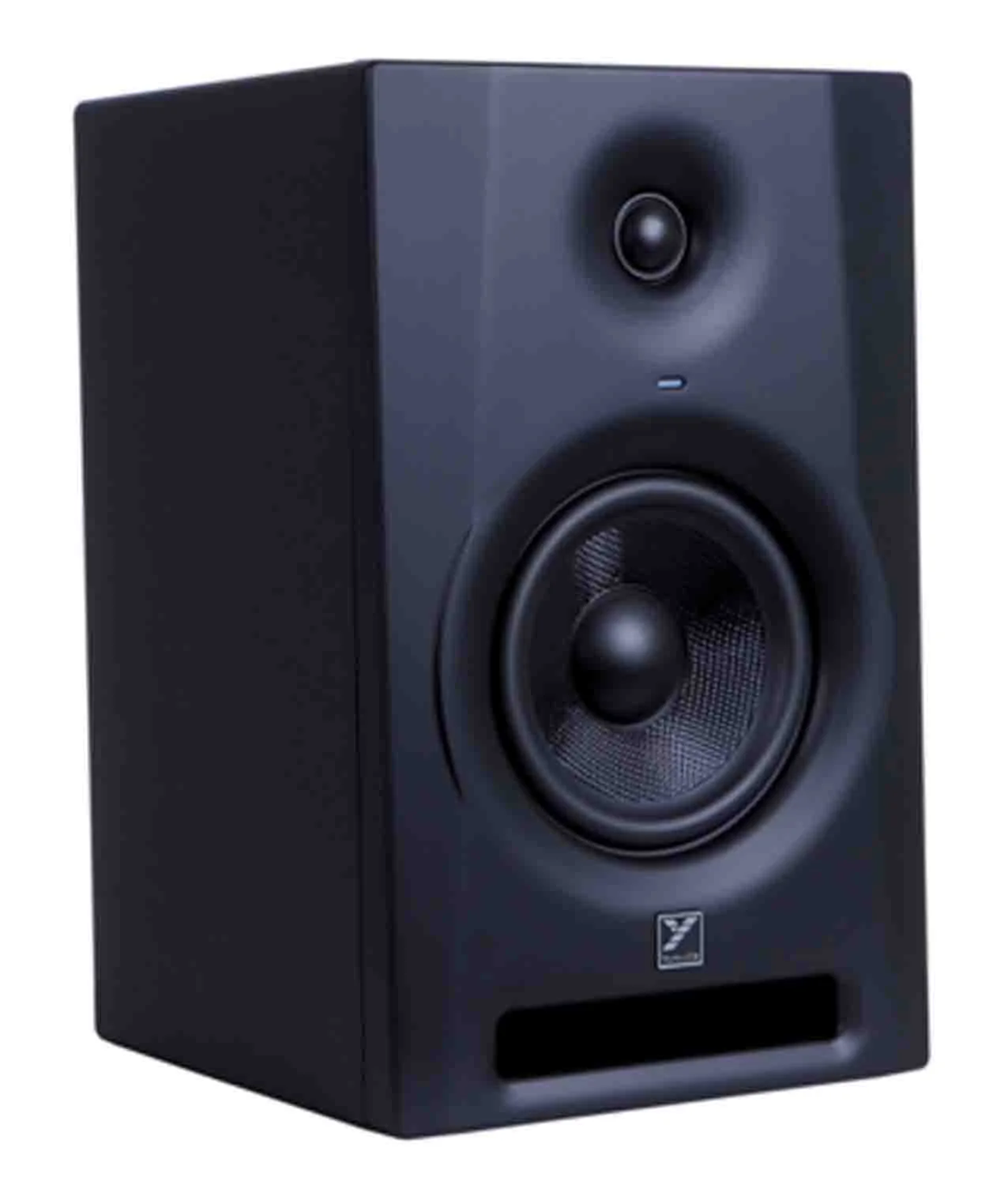

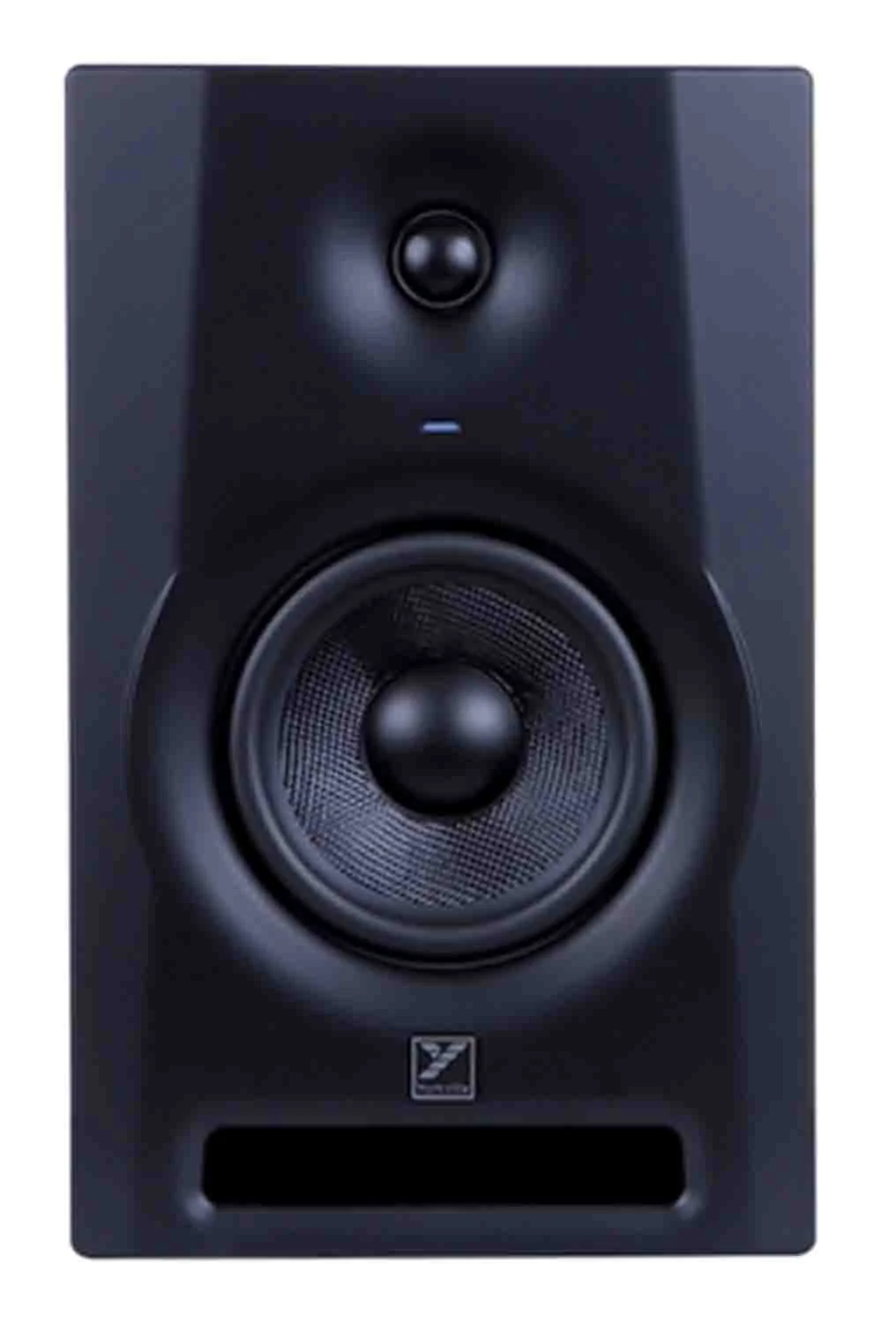

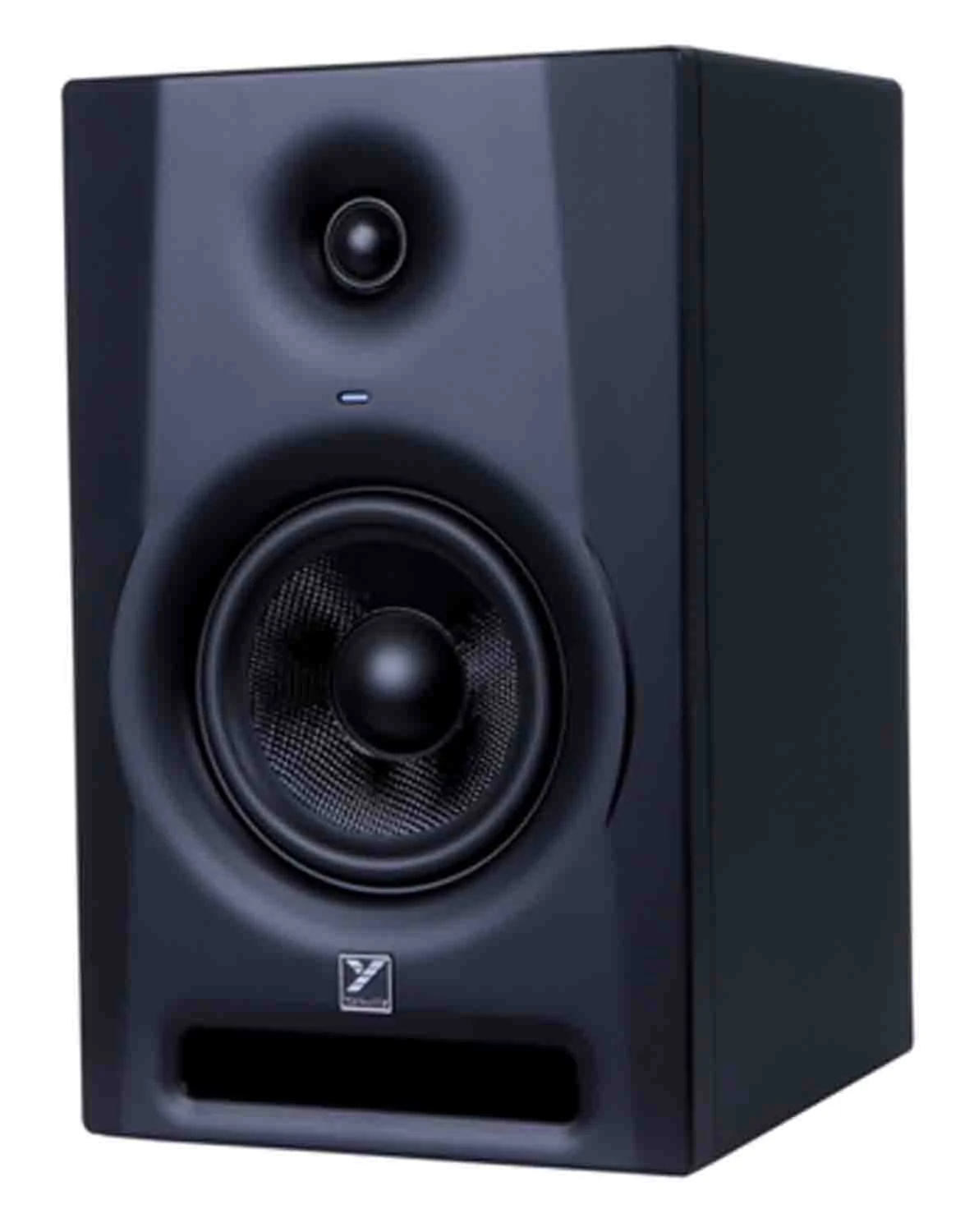

The Yorkvile YSM6-2 is a 6-inch Powered Studio Monitors - 75W are engineered to deliver the uncompromising clarity your mixes demand. Designed with project and professional studios in mind, the YSM SERIES II has been developed to be the best-sounding monitor in its class. The YSM6-2 features 1-inch black-silk diaphragm neodymium dome tweeters. These tweeters blend seamlessly into the specially designed low-diffraction waveguide which is integrated into the front baffle.

The edges of the wave-guide perfectly couple the tweeter with the woofer, reducing sonic anomalies normally associated with driver/tweeter proximity. The fibre-reinforced composite cone woofers have also been designed to perform with sonic excellence, providing a wide dynamic range at all levels. Integrated DSP is utilized to deliver transparent signal processing and bi-amplification has been optimized for each driver. The woofer and tweeter have been perfectly time aligned to eliminate any phase irregularities usually associated with 2-way designs.

Product Specifications:

System Type: 2-Way

Active or Passive: Active

Power Rating (Watts): 75

Biamp Operation Only: Yes

Max SPL (dB): 105

Frequency Response (Hz +/- 3db): 45Hz-22kHz

Crossover Frequency (Hz): 2.1 kHz

HF Driver(s): Neo Soft dome Ferro Fluid

HF Power Rating (Watts): 25

HF Protection: Therm, Over voltage, Clip

LF Driver(s): 6.5-inch composite

LF Power Rating (Watts): 50

LF Protection: Therm, Over voltage, Clip

HF Distortion: 0.015

LF Power Amplifier (Watts): Class D

LF Distortion: 0.01 %

Cooling Scheme: convection

Power Cable: Included

Power Switch: Back, with LED on Baffle

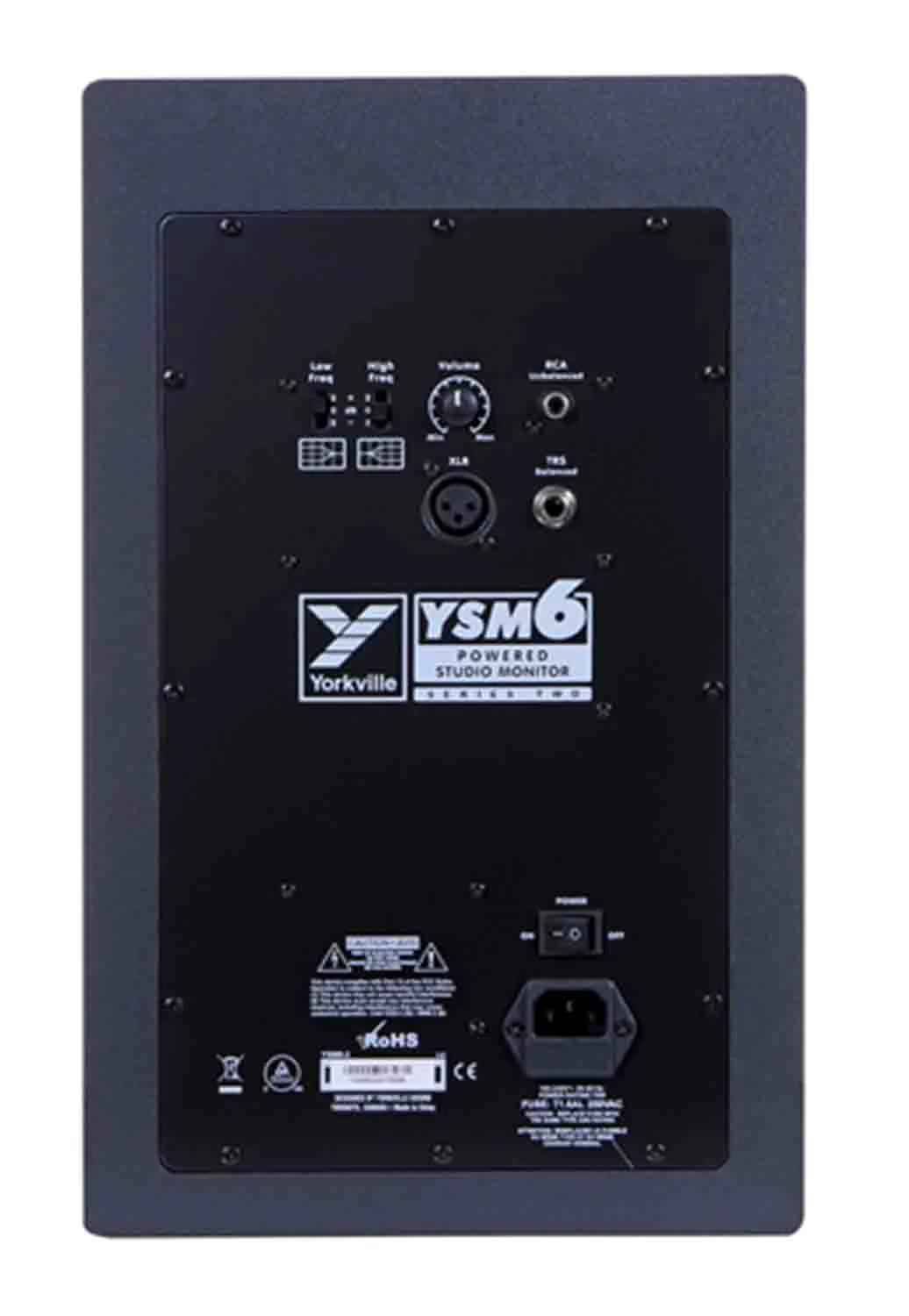

Inputs: 1 RCA

Inputs - 1/4" Jacks: 1

Inputs – XLR: 1

Input Sensitivity (Vrms Sine): 1.2

Level Controls:  1

Enclosure Materials; MDF

Baffle Material: MDF/ABS

Covering / Finish: Textured Vinyl

Dimensions (DWH xbackW, inches): 10 x 9.5 x 15

Dimensions (DWH xbackW, cm): 25.4 x 24.13 x 38.1

Weight: (lbs/kg) 15 / 6.8
