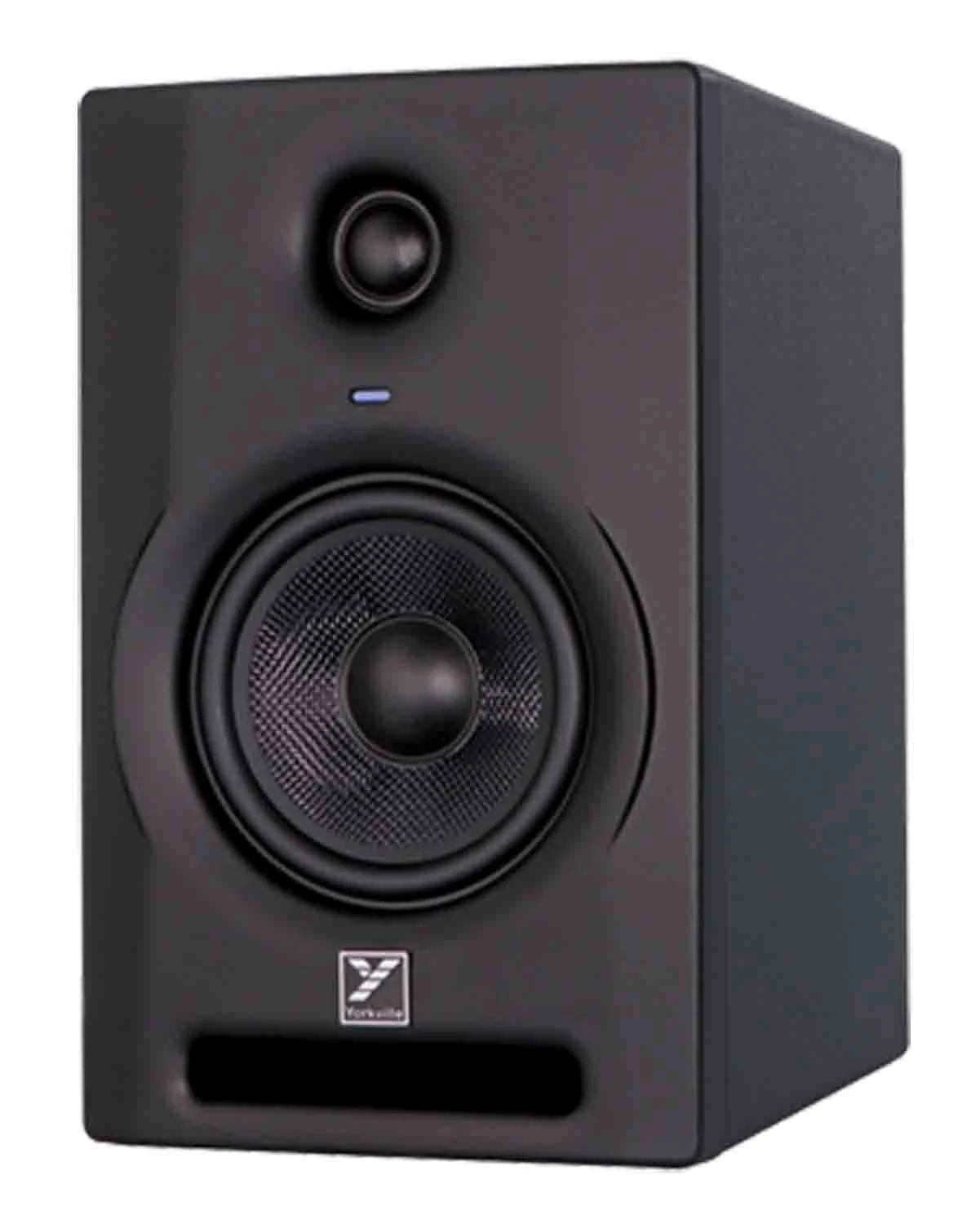

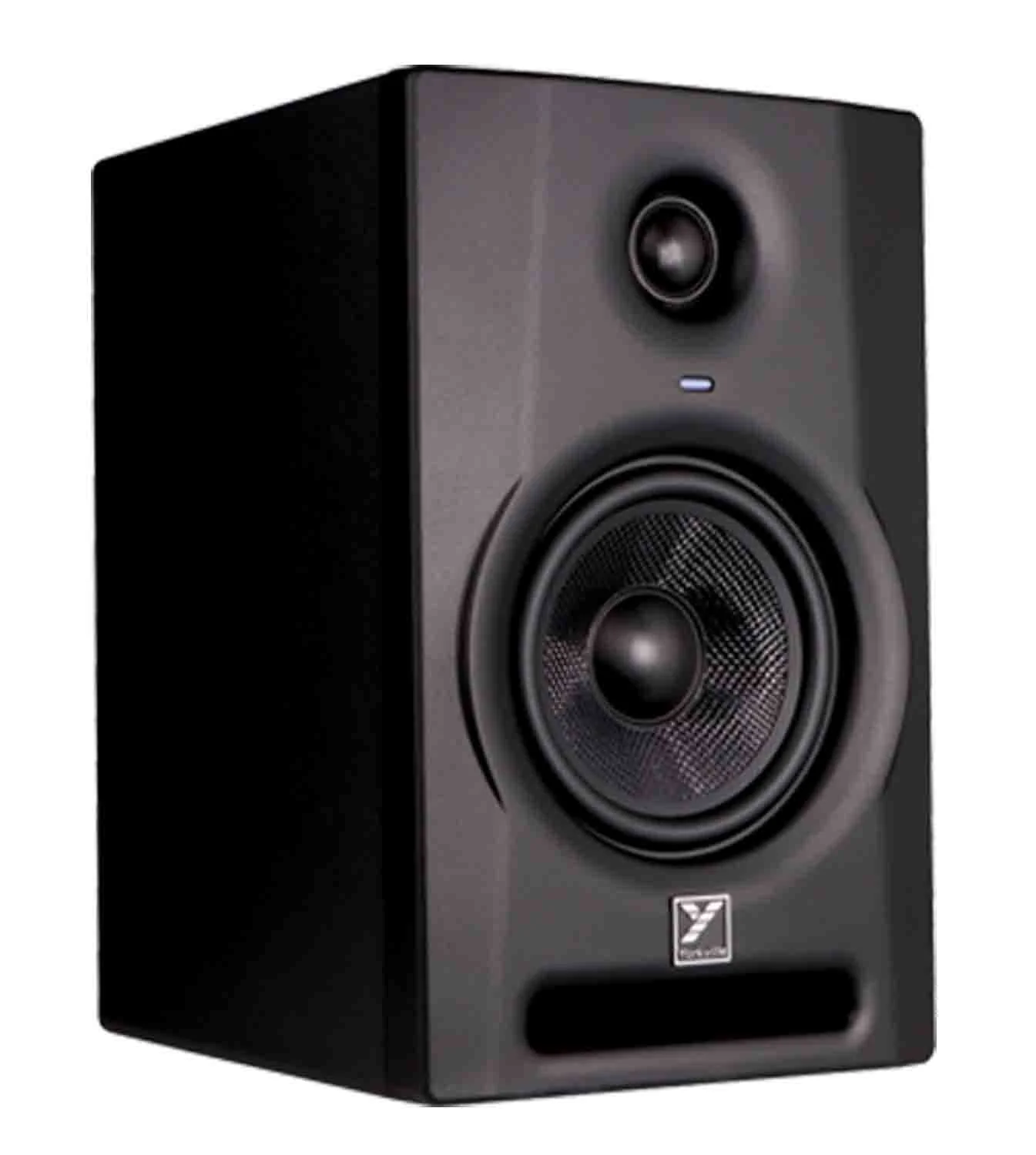

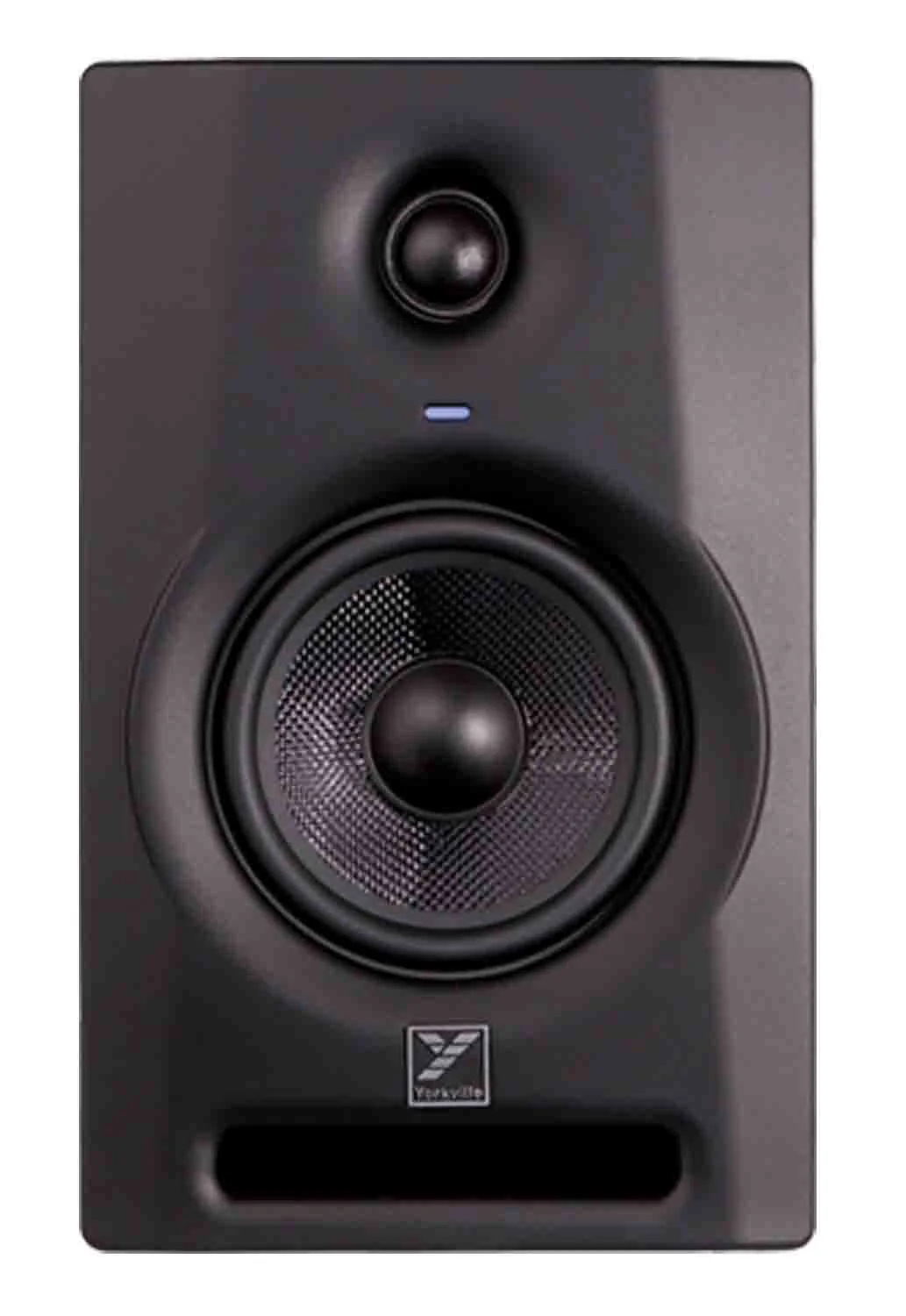

The Yorkvile YSM5-2 is a 5-inch Powered Studio Monitors - 50W. Yorkville Sound's YSM SERIES II Powered Studio Monitors are engineered to deliver the uncompromising clarity your mixes demand. Designed with project and professional studios in mind, the YSM5-2 has been developed to be the best sounding monitor in its class. The YSM5-2 features 1-inch black-silk diaphragm neodymium dome tweeters.

These tweeters blend seamlessly into the specially designed low diffraction wave guide which is integrated into the front baffle. The edges of the wave-guide perfectly couple the tweeter with the woofer, reducing sonic anomalies normally associated with driver/tweeter proximity. The fibre reinforced composite cone woofers have also been designed to perform with sonic excellence, providing a wide dynamic range at all levels. Integrated DSP is utilized to deliver transparent signal processing and bi-amplification has been optimized for each driver. The woofer and tweeter have been perfectly time aligned to eliminate any phase irregularities usually associated with 2-way designs.





Product Specifications:

System Type: 2-Way

Active or Passive: Active

Power Rating (Watts): 50

Biampable: Self Powered

Max SPL (dB): 105

Frequency Response (Hz +/- 3db): 50Hz-22kHz

Crossover Frequency (Hz): 2.1 kHz

HF Driver(s): Neo Soft dome Ferro Fluid

HF Power Rating (Watts): 15

HF Protection: Therm, Over voltage, Clip

LF Driver(s): 5-inch composite

LF Power Amplifier (Watts): Class D

LF Distortion: 0.01 %

Power Cable: Included

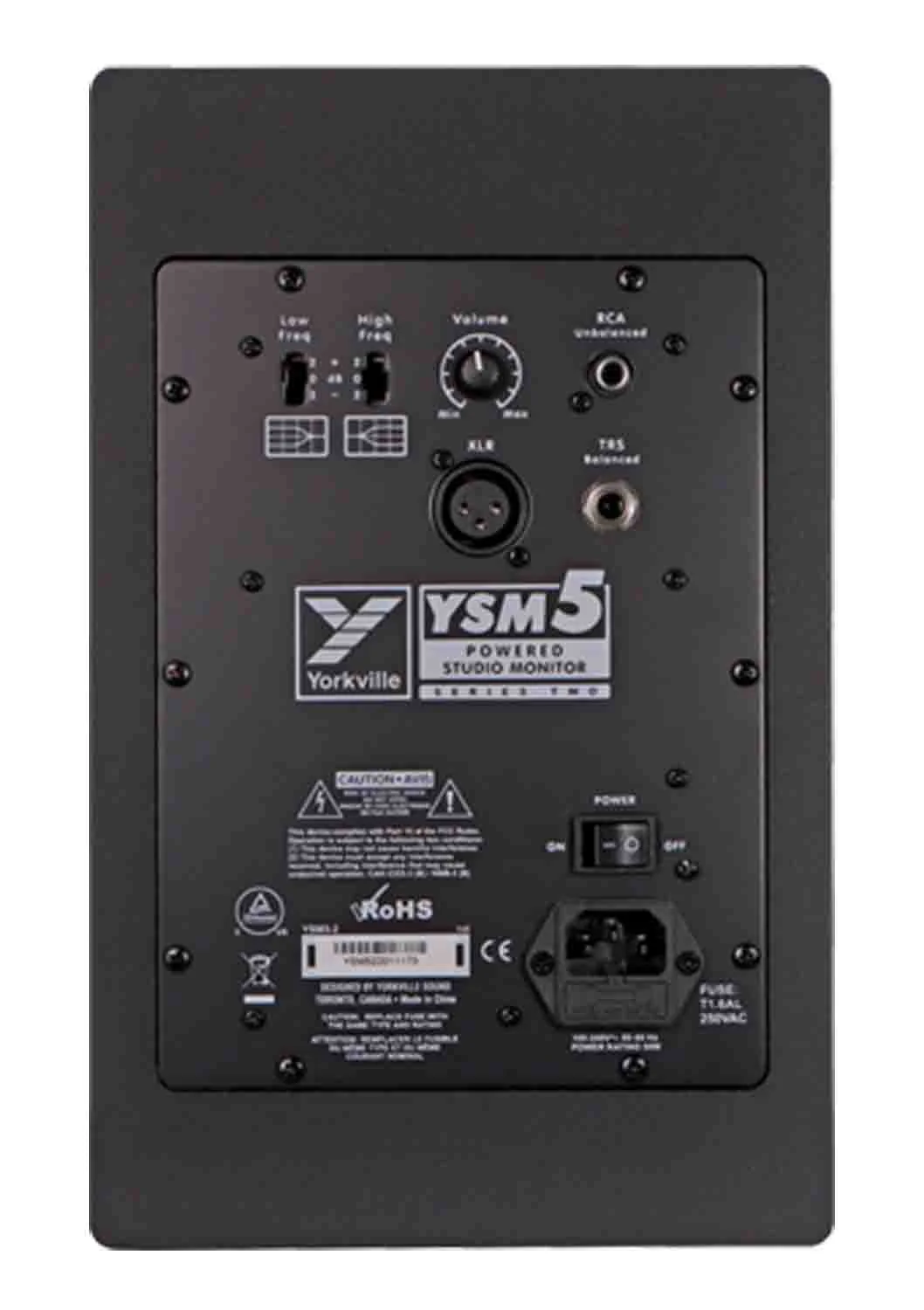

Inputs - 1/4" Jacks: 1

Inputs – XLR: 1

Level Controls:  1

LED Indicators: power on front

Enclosure Materials: MDF

Dimensions (DWH xbackW, inches): 9.5 x 7.5 x 11.5

Dimensions (DWH xbackW, cm): 24.13 x 19.05 x 29.21

Weight: (lbs/kg) 11 / 5.0
