Traynor BLOCK10 200 Watt Keyboard Amp
Traynor BLOCK10 200 Watt Keyboard Amp
The Traynor Block10 keyboard combo amplifier delivers 200 Watts of clean power into a specially optimized 10-inch speaker/horn combination.
Four input channels allow direct connection to stereo keyboards, laptops, electronic drums, sound modules and microphones, making it the most compact mixer/speaker solution in the Traynor line. A handy link function allows two Block10 amplifiers to be connected for stereo operation with double the input channels.

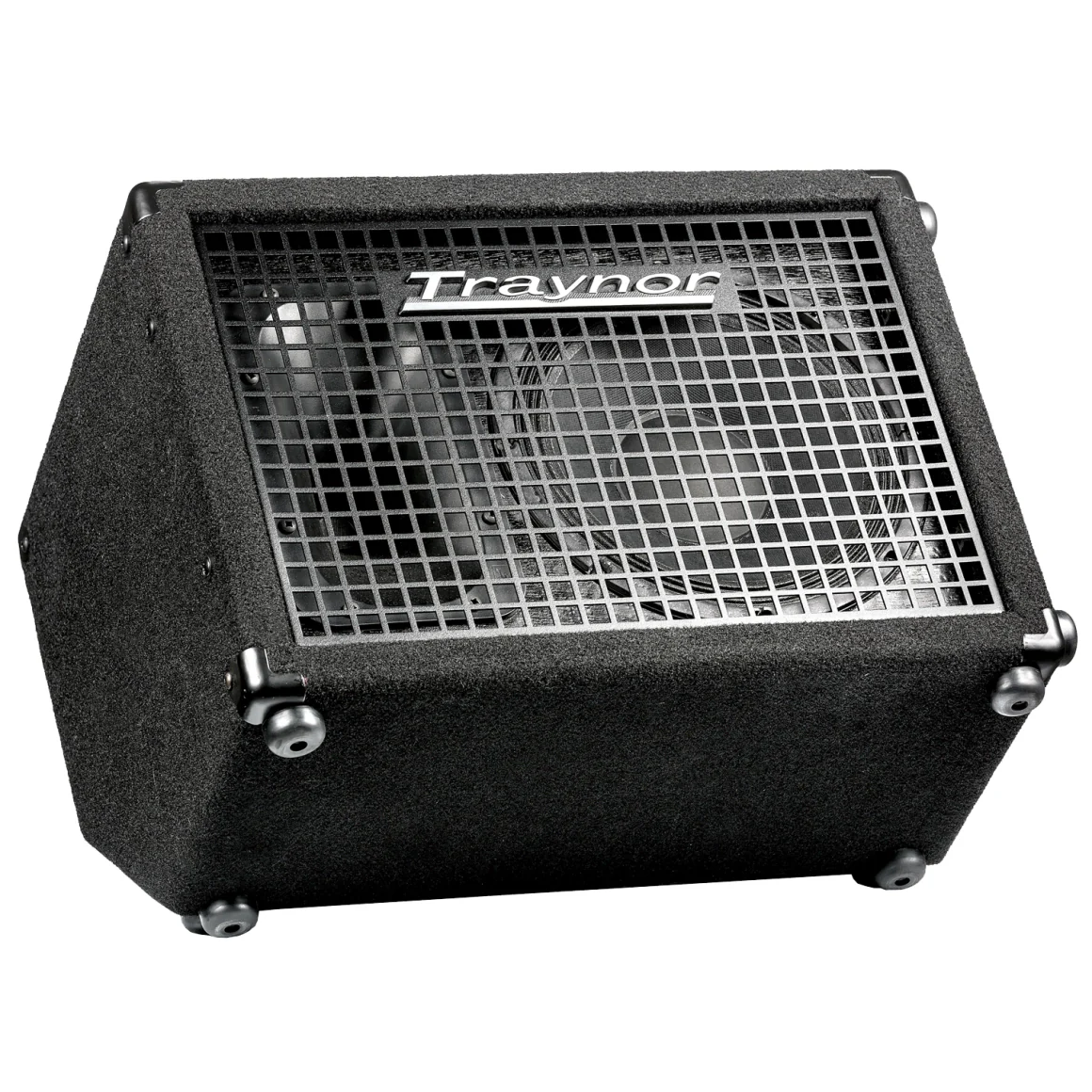

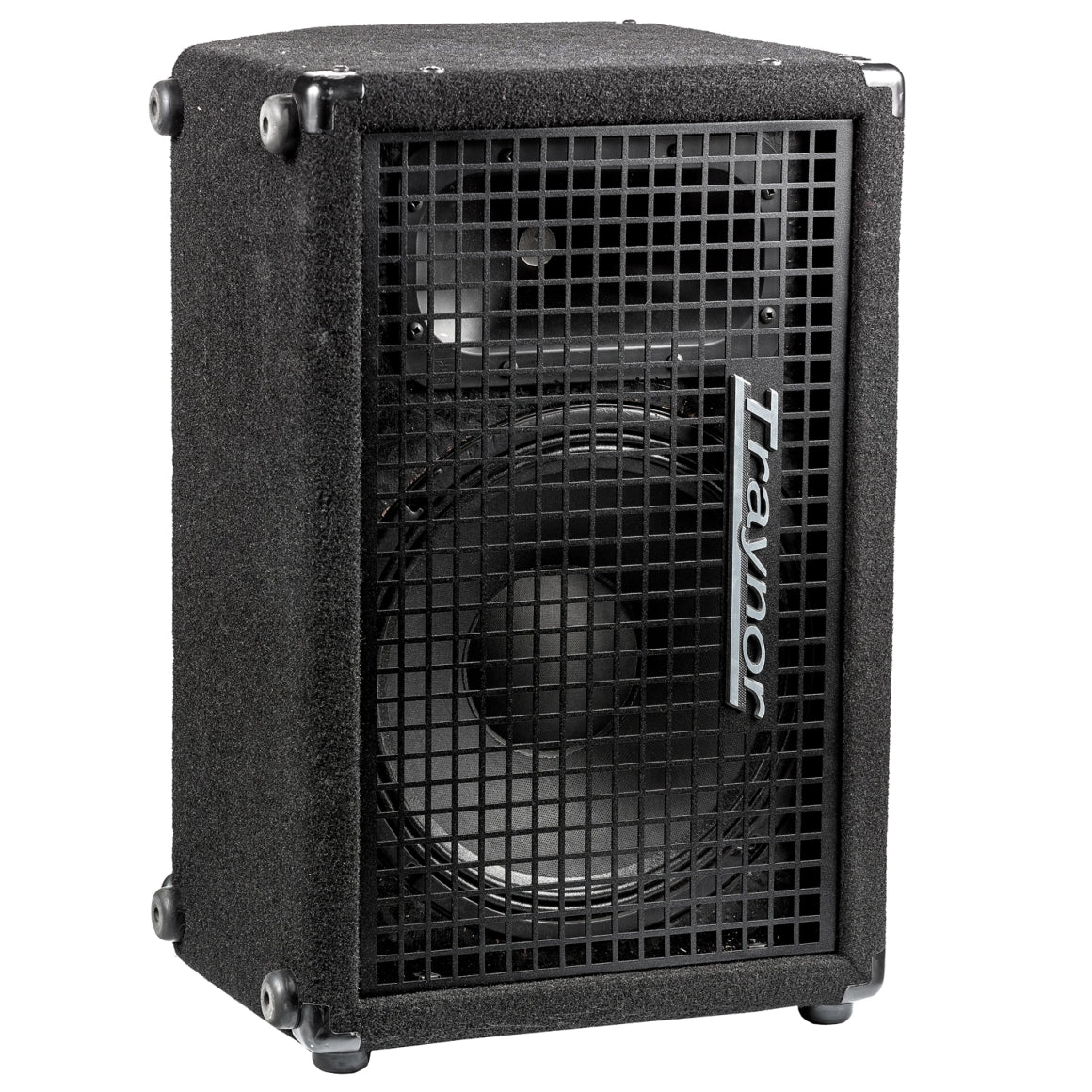

Designed for maximum versatility, the Block10 is a compact combination box design that allows the cabinet to operate in an upright position for small PA applications, or in a wedge format for use as a monitor. A solid plywood cabinet construction, black carpet covering, and a curved, perforated all-metal grille ensure unmatched long-term reliability.
Integrated standmount adaptor allows the Block10 to be used on a standard speaker stand for added versatility.
General Features:

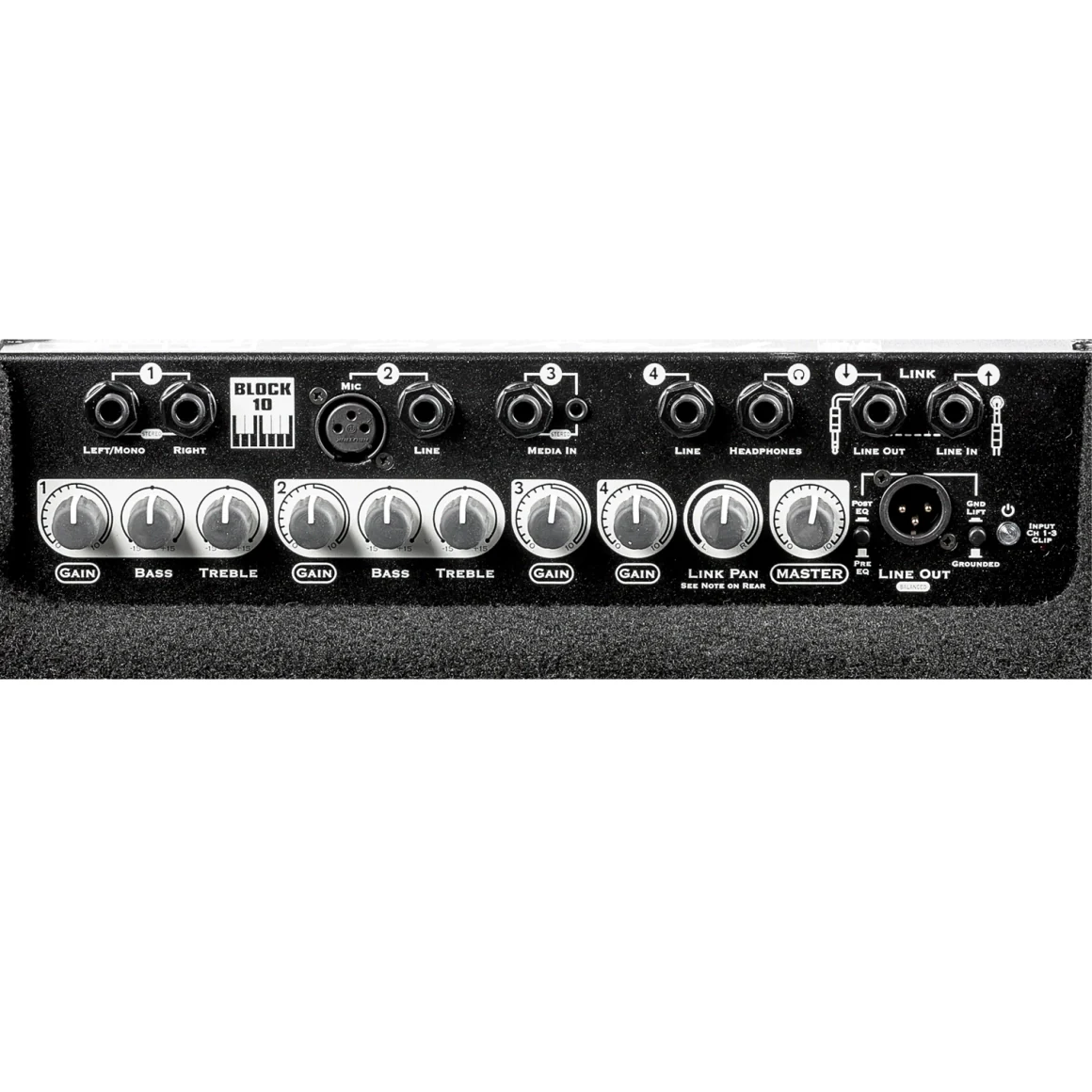

- Four channel integrated mixer
- XLR, TRS 1/4-inch and TRS 1/8th -inch inputs
- 200 Watts
- 10-Inch woofer / 1-inch horn
- XLR balanced DI output
- Stereo Link Out for stereo operation and expansion (when used with another Block10 Amplifier)
- Solid plywood cabinet construction
- Wedge design for monitor applications
- Integrated standmount adaptor
- Made in Canada
Specifications:
| Max Power (Watts) | 200 |
| Speaker Configuration - LF | 10-inch/200 watts |
| Speaker Configuration – HF | 1-inch/50 watts |
| Frequency Response (Hz +/-3dB) | 20 – 20k |
| Inputs | 4 |
| Channel 1 – Inputs | 2 x 1/4-inch |
| Channel 1 – Controls | Gain, 2 band EQ |
| Channel 2 – Inputs | 1/4-inch/XLR |
| Channel 2 – Controls | Gain, 3 band EQ |
| Channel 3 – Inputs | Stereo 1/4-inch, Stereo 3.5mm |
| Channel 3 – Controls | Gain |
| Channel 4 – Inputs | Mono, 1/4-inch |
| Channel 4 – Controls | Gain |
| Master Volume Control | Yes |
| Line Out (type / configuration) | Balanced XLR (Pre/Post EQ, Pre Master) |
| Line Out Sensitivity (Vrms) | 1 Vrms |
| LED Indicators | Power, Ch. 1-3 Clip |
| Protection | Thermal |
| Other Features | Link Pan Control |
| Headphone Jack | Yes |
| Dimensions (DWH, inches) | 13.75 x 18.75 x 14 |
| Dimensions (DWH, cm) | 35 x 48 x 36 |
| Weight (lbs / kg) | 28 / 12.6 |
**Specifications subject to change without notice
Warning:
This product can expose you to chemicals known to the State of California to cause cancer. For more information, go to P65Warnings.ca.
