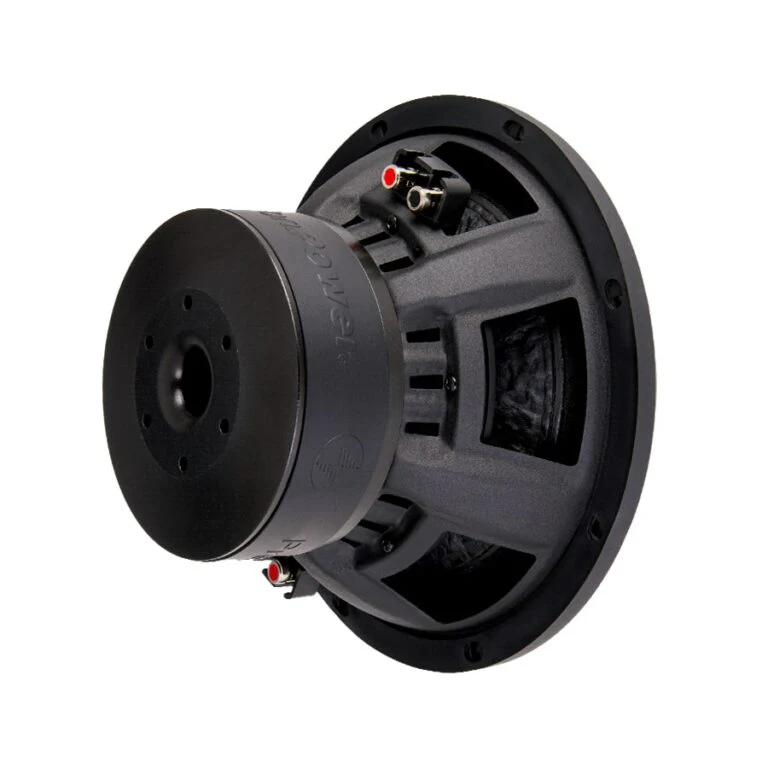

Precision Power AW-10D2 ATOM Series 10″ D2 Subwoofers

Intriguing from the first look, ATOM subwoofers offer more than what meets your eyes…

The first thing you noticed was the wild dustcap; it’s not just for your viewing pleasure. The three fins brace the cone and eliminate cone flex during high excursion. And since they are aluminum and couple to the voice coil, they act as a heatsink or heat extractor. Essential to keeping the subwoofers more relaxed and helping them last longer.

ATOM subs use a composite sandwich cone with a polypropylene surface for durability and Spruce pulp backing for smooth, low bass. This new series for Precision Power will use an aluminum dust cap that couples to the voice coil former and extends over the cone. Sparing no compromise, the ATOM series’s motor assembly includes an extended tap top plate, which expands the magnetic field results in dynamic sounds & performance quality you demand and expect. ATOM subwoofers are engineered to be the pinnacle of Precision Power, delivering you absolutely state-of-the-art mobile audio.

General Features:

• 10" Dual 4 ohm Atom Series Subwoofer
• Power Handling:
• Peak: 1000 watts
• RMS: 500 watts
• Non-Transfer Spruce Pulp cone with UV and chemical protection
• 2.5"4-layer oxygen-free Copper voice coil on Aluminum former
• Cast aluminum heatsink dust cap coupled to the voice coil former
• Dual poly-cotton suspension maintains magnetic gap linearity
• Hot forged 1-piece 10mm top plate with +5mm expanded magnetic gap
• Hot forged 1-piece 10mm T-yoke with center pole and back plate venting
• 22.5 mm Xmax
• Single-stacked magnet motor structure
• Resonance Frequency (Fs): 29.24 Hz
• Sensitivity: 82.20 dB
• Recommended sealed box volume: .75 cubic feet
• Recommended ported box volume: 1.5 cubic feet
• Top-mount depth: 5.5"
