Peavey Lo Max 18" Replacement Subwoofer for Versarray 218 or 118 Speaker Cabinet Enclosure

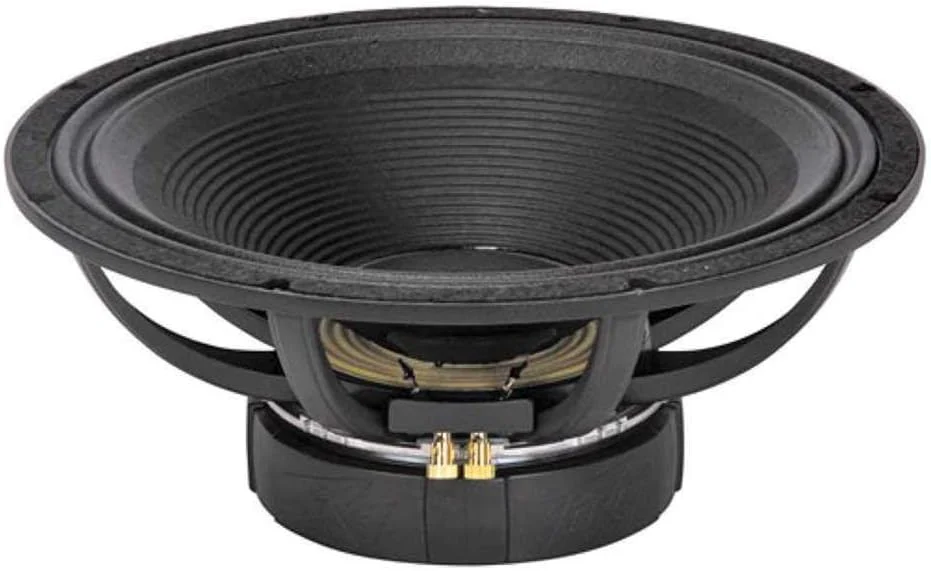

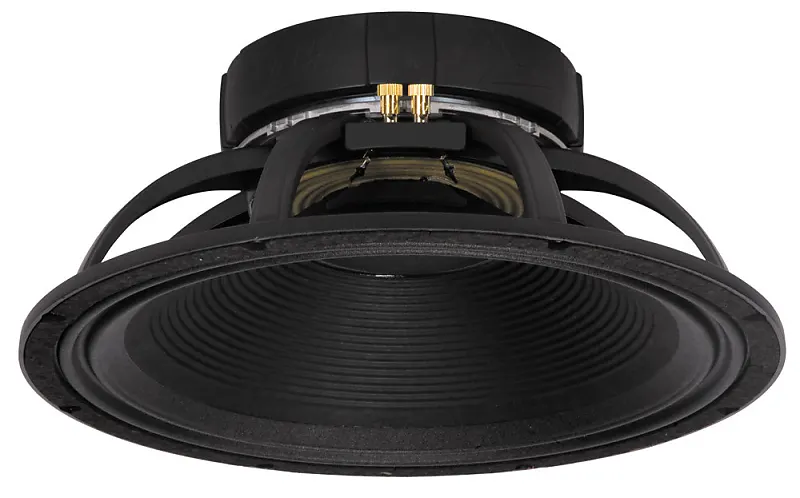

Peavey Lo Max 18" Subwoofer Speaker Driver
Finally, there’s a subwoofer driver that just might be stronger than your biggest amplifier. With an almost inconceivable power handling capacity of 2400 watts program, the Lo Max has more real-world power handling than any other commercially available sound reinforcement loudspeaker. A no-compromise design combines this power capacity with high efficiency, excellent frequency response, and low distortion for revolutionary performance. It even works well in compact enclosures.
General Features:
- 18 inch
- Revc (ohms) 6.10
- Sd (Square Meters) 0.1237
- BL (T/M) 25.51
- Znom (ohms) 8
- Vas (liters) 294.7
- Cms (uM/N) 135.6
- Mms (gm) 167.9
- QMS 8.741
- Qes 0.330
- Net weight lb. / kg: 33.5 lbs. / 15.2 kg
- Qts 0.318
- Voice coil material: Polyimide-coated copper ribbon wire Polyimide-impregnated fiberglass former Nomex® stiffener Solderless diffusion welded OFHC copper leads
- Xmax (mm) 8.25
- Voice coil diameter: 4.0" / 100 mm
- Le (mH) 0.751
- Cone: Kevlar® impregnated cellulose
- SPL (1W 1m) 97.1
- Usable freq. range: 30 Hz ~ 500 Hz
- No (%) 3.21%
- Sensitivity: 97.1 db
- Vd (cu. in. / ml) 128.7 / 2110
- Power capacity: 4800 W Peak, 2400 W Program, 1200 W Continuous
- Pmax (Watts pgm.) 2400
- Impedance 8 ohm
- Disp (cu. in. / ml) 284 / 4655
- Fo (Hz) 33.5
- Packed Weight: 24.14 lb (10.95 kg)
- Packed Length: 20.866" (53 cm)
- Packed Width: 20.079" (51 cm)
- Packed Height: 8.268" (21 cm)
- Model: 00560400
