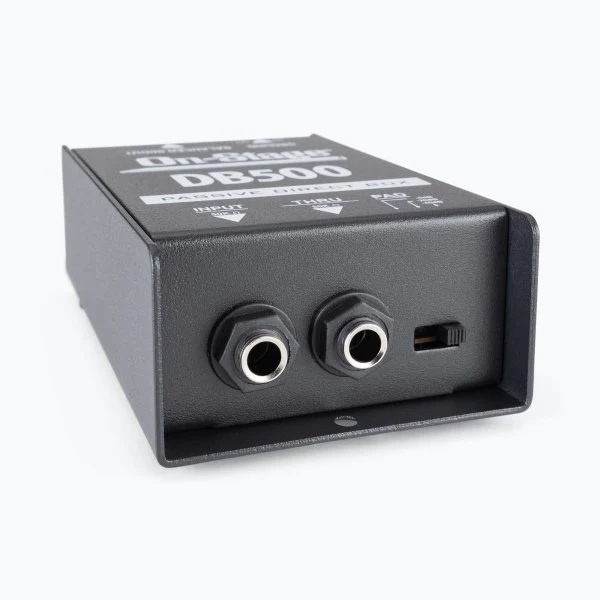

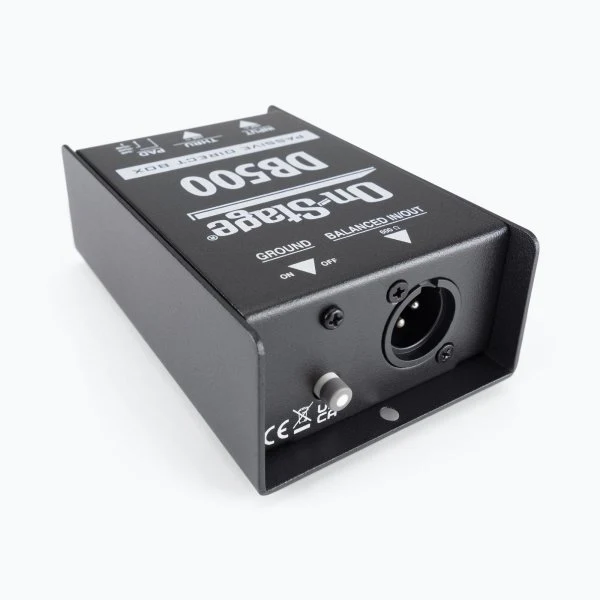

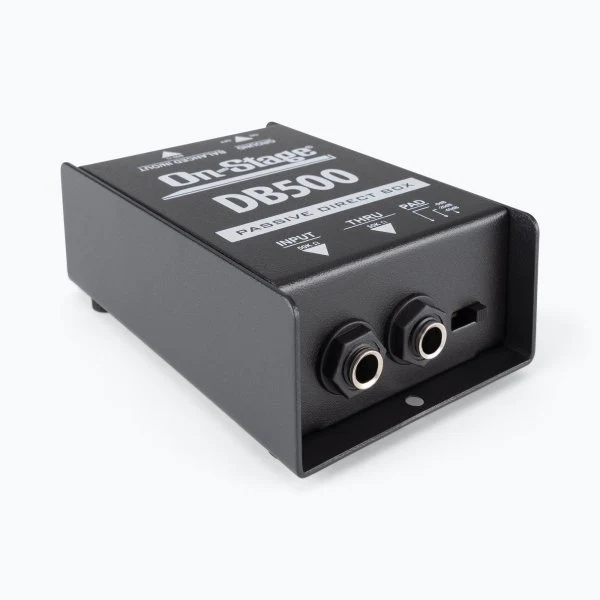

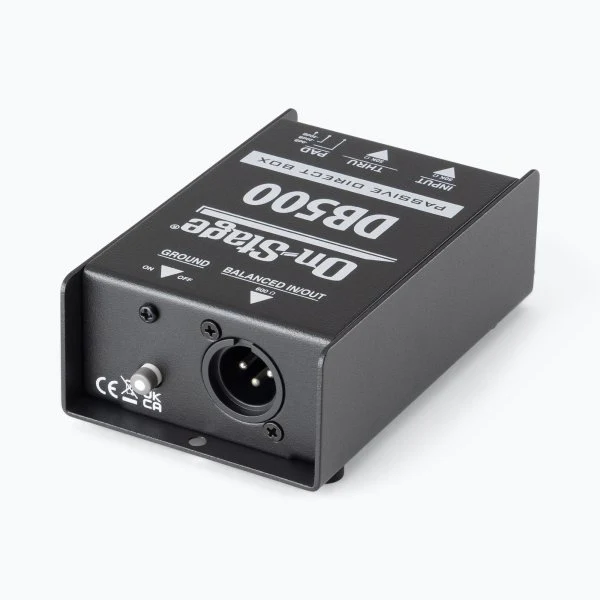

On-Stage DB500 Passive DI Box

Our DB500 Passive DI Box converts any high-impedance 1/4" source to a low-impedance XLR signal ready to send via a long cable run to a mixer or PA system. Features include low-distortion passive circuitry that doesn't require power, a -20 dB or -40 dB pad switch to prevent clipping, a ground-lift switch to defeat ground-loop hum, and a throughput connector to pass unaltered signal to a stage amp. Its heavy-duty metal enclosure protects the internal components and ensures reliable performance.

General Features:

• Converts a high-impedance (1/4") input to a balanced, low-impedance (XLR) output
• Output signal can be sent via a long cable to a mixer or PA system without frequency loss
• Passive circuit does not require a power supply or batteries
• High-quality transformer for low distortion and an isolated signal path

Product Properties:

• Application
• Acoustic guitars, bass guitars, keyboards, and more

• Construction
• Metal

• Dimensions
• (W)4.75" x (H)1.375" x (D)2.875"

• Input Impedence
• 350K Ohms

• Inputs
• 1/4"

• Output
• XLR

• Output Impedence
• 80 Ohms

• Pad
• 20dB, 40dB, Ground Lift: Yes

• Power
• Passive/not required

• Product Type
• Direct Box

• Weight
• 0.5 lb
