Amplifier Type & Design 2-Channel Dynamic Series Class AB power amplifier delivering clean, stable, and professional audio output
Audio Control & DSP Onboard DSP provides precise sound control for fine-tuning in any venue or speaker setup
Display & Monitoring Large LCD display with 4-segment signal and limit LEDs for easy setup and real-time performance monitoring
Wireless Connectivity Built-in Bluetooth 5.3 for stable, high-quality audio streaming from phones, computers, and tablets
Power Supply & Efficiency Power Light Switch Mode Power Supply ensures high efficiency, reduced heat, and improved audio performance
Power Output 3000W P.M.P.O, 880W ×2 Max @ 4Ω, 440W ×2 RMS @ 4Ω, 220W ×2 RMS @ 8Ω
Audio Performance 20 Hz–20 kHz (±0.5 dB) frequency response, THD <0.5%, THD+N <0.05% @ 8Ω (1/3 Po), 22 V/µs slew rate, >102 dB SNR, >82 dB channel isolation @ 1 kHz, >65 dB crosstalk @ 8Ω (1 kHz), damping factor >400
Input & Sensitivity 1V input sensitivity, >0 dB input level, 20 kΩ balanced and 10 kΩ unbalanced impedance with gain attenuator for precise control

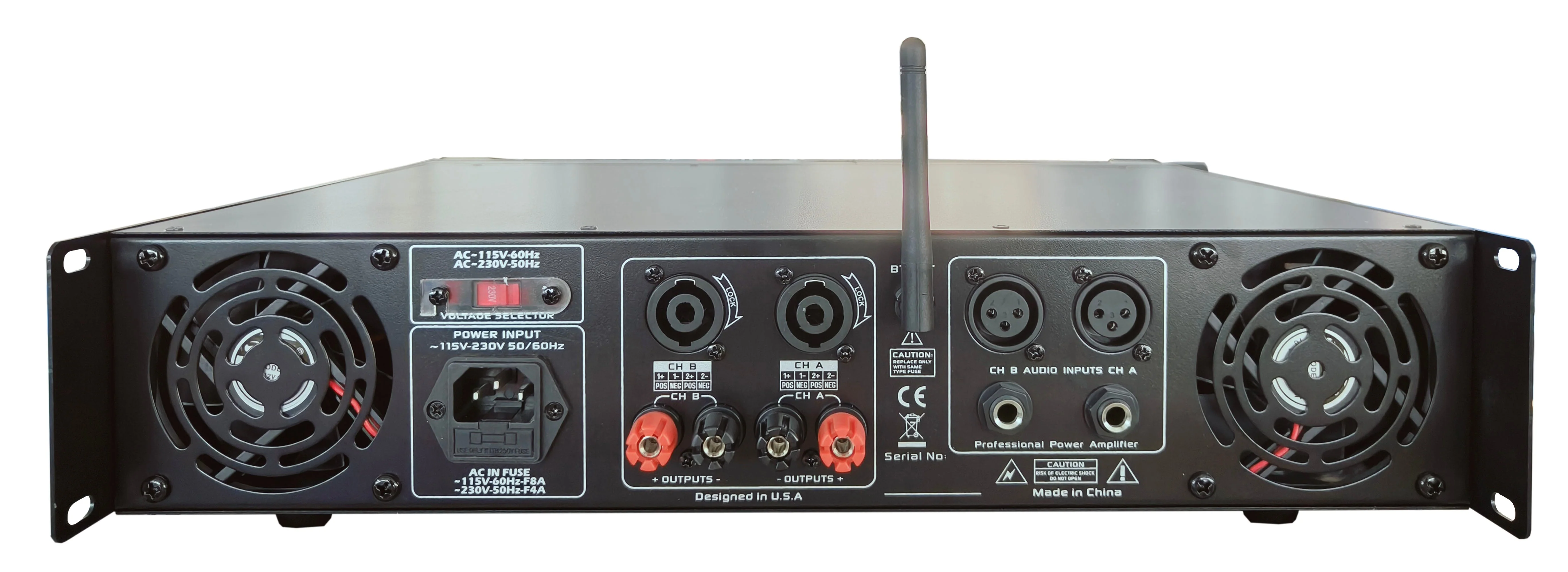

Connectivity Balanced XLR inputs, XLR & 1/4” TRS combination inputs, and professional twist-lock speaker outputs for secure, universal connections
Cooling & Thermal Management Flow-thru air path, solid aluminum heat sinks, and double fan cooling for maximum heat dissipation and long-term stability
Protection & Reliability Heavy-duty aluminum alloy construction with rack-mountable design for professional installations
Power Compatibility 110V/220V switchable operation, designed and engineered in the USA
