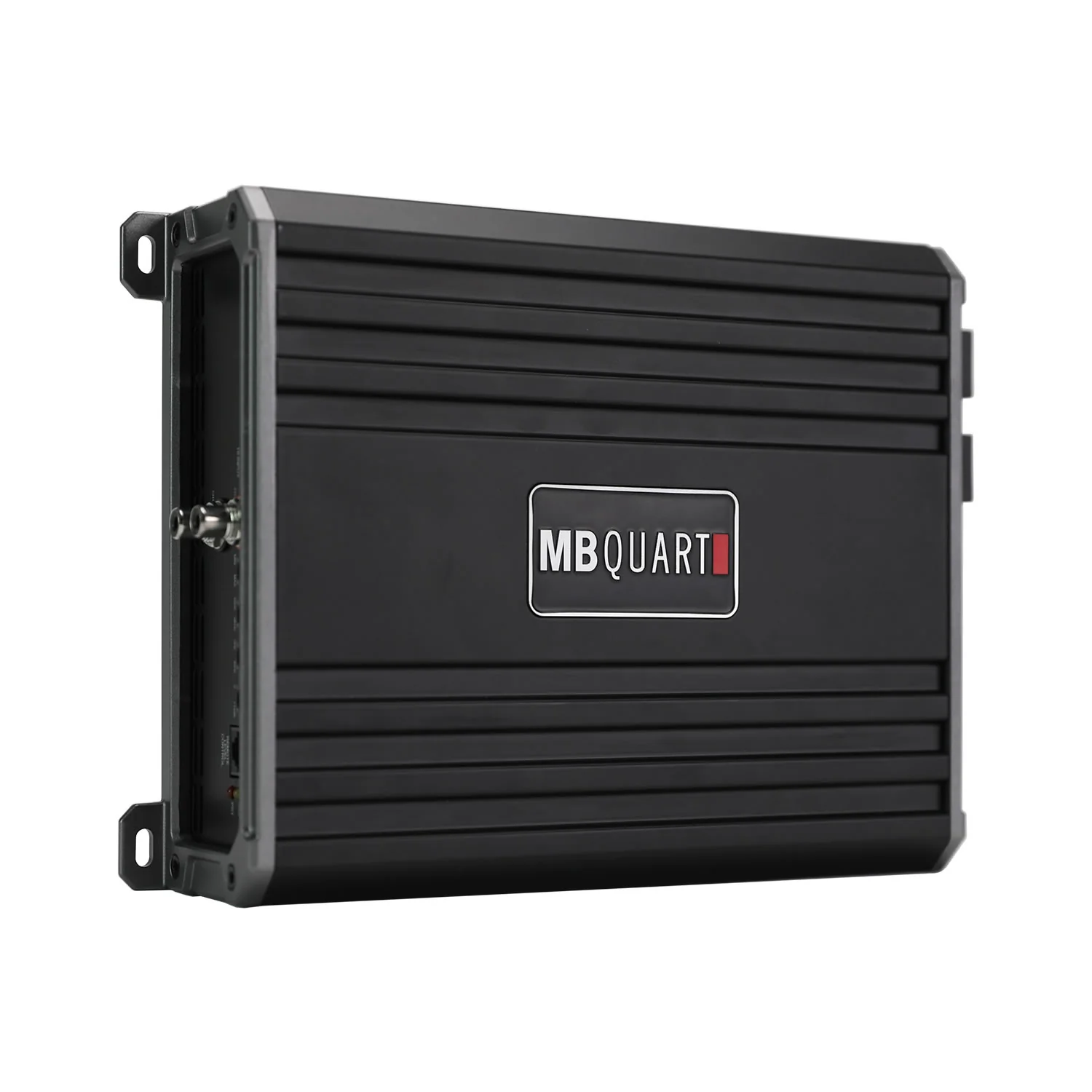

MB Quart PA1-5000.1 Premium Pro 5000 watt mono-block subwoofer amplifier designed to produce higher power output in an efficient form factor. Bass remote included.

General Features:

• Low Noise Preamplifier Circuit
  Engineered pre-amplifier stage reduces incoming noise from source units and dramatically improves sound quality.
• RCA Inputs
  1 pair tiffany style nickel-plated RCA jacks create an efficient connection that is corrosion-resistant.
• High Level Inputs
  Easily tie into OEM audio systems that do not offer RCA output to maximize after market amplifier power.
• Operation Mode
  Mono operation: Designed to power 1 subwoofer or subwoofer system.
• Crossover Type
  Switch LPF On / Off: Complete control of amplifier signal, essential when using two or more amplifiers.
• Class / Topology
  Full Range Class D: Highly efficient circuit topology which helps the amplifer develop a lot of power in a very small heatsink.
• Output Device Technology
  PWM MOSFET Power Supply: Stable power through the PC board with minimal heat generation.
• Heat Sink
  Extruded aluminum heat sink paired with built in fans quickly dissapates heat to allow the amplifer to run lower impedance for longer duration.
• Power Supply
  MOSFET Pulse Width Modulation power supply that allows the amplifier to produce efficient power without taxing the electrical system.
• Output Connections
  Heavy duty output terminals allows for secure connection so electrical signal can pass into wiring and resist corrosion.
• Connection Type
  Nickel plated corrosion resistant connections.
• LED System Protection Circuitry Diagnostics
  Three-stage protection circuits: Monitor thermal, overload, DC, and speaker short protection with lighted indicators on the amplifier end panel.
• Bass Remote Included
  Included: Wired Bass Remote allows adjustments to gain level to be made from the control mounted anywhere in the vehicle.

Specifications:

• Type
  Amplifier
• Brand
  MB Quart
• Series
  Premium
• Category
  Mobile
• Condition
  New
• Color
  Black
• Warranty
  1 Year
• Compatible Vehicles
  Universal
• Amp Class
  Full Range Class D
• Amp Total Channels
  Mono
• Amp Max Power (watts)
  5000
• Amp Power @ 2 Ohms (ch x watts)
  1 x 5000
• Amp Power @ 4 Ohms (ch x watts)
  1 x 2500
• Amp Crossover
  Variable Electronic 12dB Per Octave
• Amp Variable Low Pass Crossover 12dB per Octave
  50Hz-6kHz
• Amp Tone Control / Parametric EQ
  Built-in Bass Control
• Amp Bass Boost
  0-12dB
• Amp Subsonic Filter
  5Hz-40Hz
• Amp Variable Voltage
  High: 2.9-40V, Low: 0.3-5.5V
• Amp Signal to Noise
  > 95dB
• Amp Frequency Response
  10Hz-6.3kHz
• Amp Total Harmonic Distortion (THD)
  1.0%
• Amp Speaker Level Audio Inputs
  Yes
• Amp Power Terminal 12v/GND
  1/0 AWG
• Amp Speaker Terminal Wire Gauge
  8 AWG
• Amp Fusing
  External 400A
