Install Bay PMX-400MS 400 Watt Power Inverter

General Features:

• Inverts 12V DC to 120V AC
• Available in output sizes
  • 200W
  • 400W
  • 800W

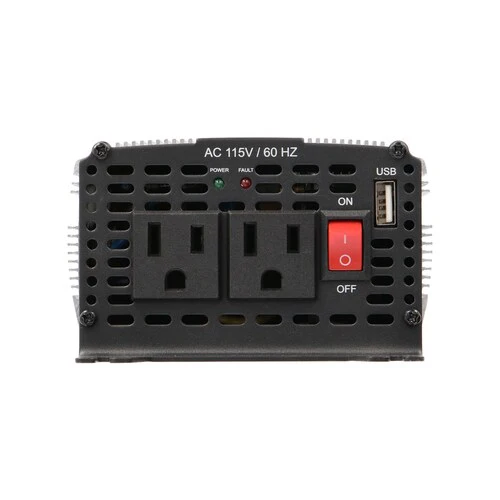

• (2) 110Vac and (1) USB outlets
• Low and high cut off with alarm

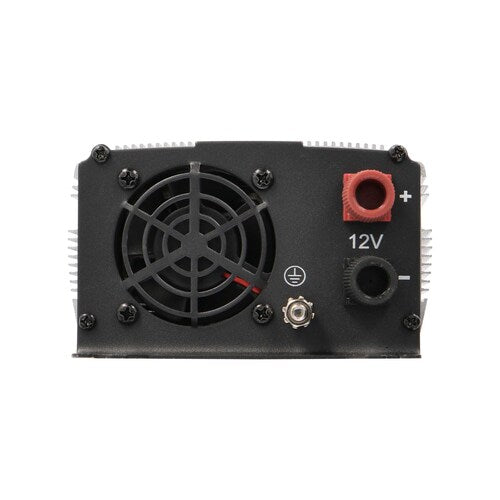

• Cooling fan
• Meets 120V AC electronic appliance safety operating standard
• Can be used to power most household electronics, small appliances and equipment

Specifications

• Maximum Output Power: 400 W
• Peak Output: (0.3 sec) 800 W
• DC Input Static Current (No Load): ≤ 1.5 Amp
• AC Output Wave Form: modified sine wave
• Output AC Voltage: AC 115V ± 10% RMS
• Output Frequency Level: 60 ± 1Hz
• Low Voltage Alarm / Cut Off Level: 10.5 ± 0.5V
• Auto-Reset after Shut-Down: 12 V ±0.5V
• High Voltage Cut Off Level: 15V-16.5V
• Full Load Optimum Efficiency: ≥ 85%
• AC Output Short Circuit Protection: system shut down (no damage)
• Temperature Protection: ＜ 65°C
• Cooling Fan: depends on inner temperature rising above ≥ 45°C
• LED Indicators:
  • Normal: Green
  • Fault: Red
• 12V cigarette adapter and battery cables with clamps included

Vehicle Applications:

• Universal
