Heise HE-DR14 Dual Row Lightbar - 14 Inch, 24 LED

Product image 1
1 / 4

Heise HE-DR14 Dual Row Lightbar - 14 Inch, 24 LED

Heise HE-DR14 Dual Row Lightbar - 14 Inch, 24 LED

General Features:

  • Advanced thermal management- short circuit and open circuit protection and many other innovative features
  • Intense spotlights in the center flanked by widebeam driving lights on each side give you everything in one light bar
  • Heavy duty rubber foot mounts help reduce vibration for LED light bars anywhere

Specs

  • Input Voltage: 10-30V DC
  • Power Consumption: 72W (24-3W LEDs)
  • Lumen Flux: 5760lm
  • Color Temperature: 6000K
  • Beam Pattern: combo – flood (90°)/spot (8°)

Construction

  • Housing Material: die-cast aluminum housing
  • Housing Color: black
  • Lens Material: PC
  • Mounting Bracket: die-cast aluminum

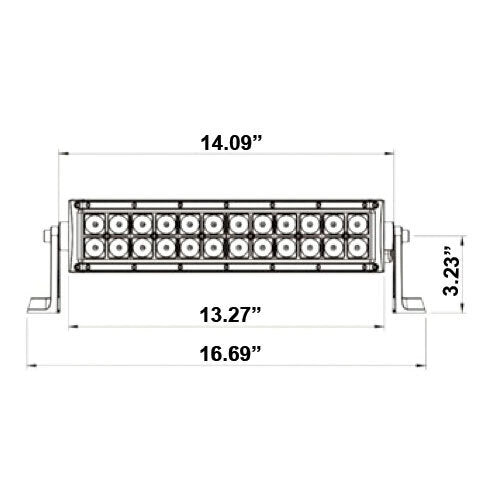

  • Hole Dimensions:
    • Brackets turned inward – 13.50"
    • Brackets turned outward – 14.75"
  • Mounting Bolt Drill— .25"
  • Electronics: integrated-epoxy encapsulated
  • Hardware: stainless 316

Operation
Operating Temperature: -40°C to +60°C
IP Rating: IP67
Protections: reverse polarity

Warning:
This product can expose you to chemicals known to the State of California to cause cancer. For more information, go to P65Warnings.ca.

Heise HE-DR14 Dual Row Lightbar - 14 Inch, 24 LED

General Features:

  • Advanced thermal management- short circuit and open circuit protection and many other innovative features
  • Intense spotlights in the center flanked by widebeam driving lights on each side give you everything in one light bar
  • Heavy duty rubber foot mounts help reduce vibration for LED light bars anywhere

Specs

  • Input Voltage: 10-30V DC
  • Power Consumption: 72W (24-3W LEDs)
  • Lumen Flux: 5760lm
  • Color Temperature: 6000K
  • Beam Pattern: combo – flood (90°)/spot (8°)

Construction

  • Housing Material: die-cast aluminum housing
  • Housing Color: black
  • Lens Material: PC
  • Mounting Bracket: die-cast aluminum
  • Hole Dimensions:
    • Brackets turned inward – 13.50"
    • Brackets turned outward – 14.75"
  • Mounting Bolt Drill— .25"
  • Electronics: integrated-epoxy encapsulated
  • Hardware: stainless 316

Operation
Operating Temperature: -40°C to +60°C
IP Rating: IP67
Protections: reverse polarity

Warning:
This product can expose you to chemicals known to the State of California to cause cancer. For more information, go to P65Warnings.ca.

$399.99
Heise HE-DR14 Dual Row Lightbar - 14 Inch, 24 LED—
$399.99

Description

Heise HE-DR14 Dual Row Lightbar - 14 Inch, 24 LED

General Features:

  • Advanced thermal management- short circuit and open circuit protection and many other innovative features
  • Intense spotlights in the center flanked by widebeam driving lights on each side give you everything in one light bar
  • Heavy duty rubber foot mounts help reduce vibration for LED light bars anywhere

Specs

  • Input Voltage: 10-30V DC
  • Power Consumption: 72W (24-3W LEDs)
  • Lumen Flux: 5760lm
  • Color Temperature: 6000K
  • Beam Pattern: combo – flood (90°)/spot (8°)

Construction

  • Housing Material: die-cast aluminum housing
  • Housing Color: black
  • Lens Material: PC
  • Mounting Bracket: die-cast aluminum
  • Hole Dimensions:
    • Brackets turned inward – 13.50"
    • Brackets turned outward – 14.75"
  • Mounting Bolt Drill— .25"
  • Electronics: integrated-epoxy encapsulated
  • Hardware: stainless 316

Operation
Operating Temperature: -40°C to +60°C
IP Rating: IP67
Protections: reverse polarity

Warning:
This product can expose you to chemicals known to the State of California to cause cancer. For more information, go to P65Warnings.ca.
