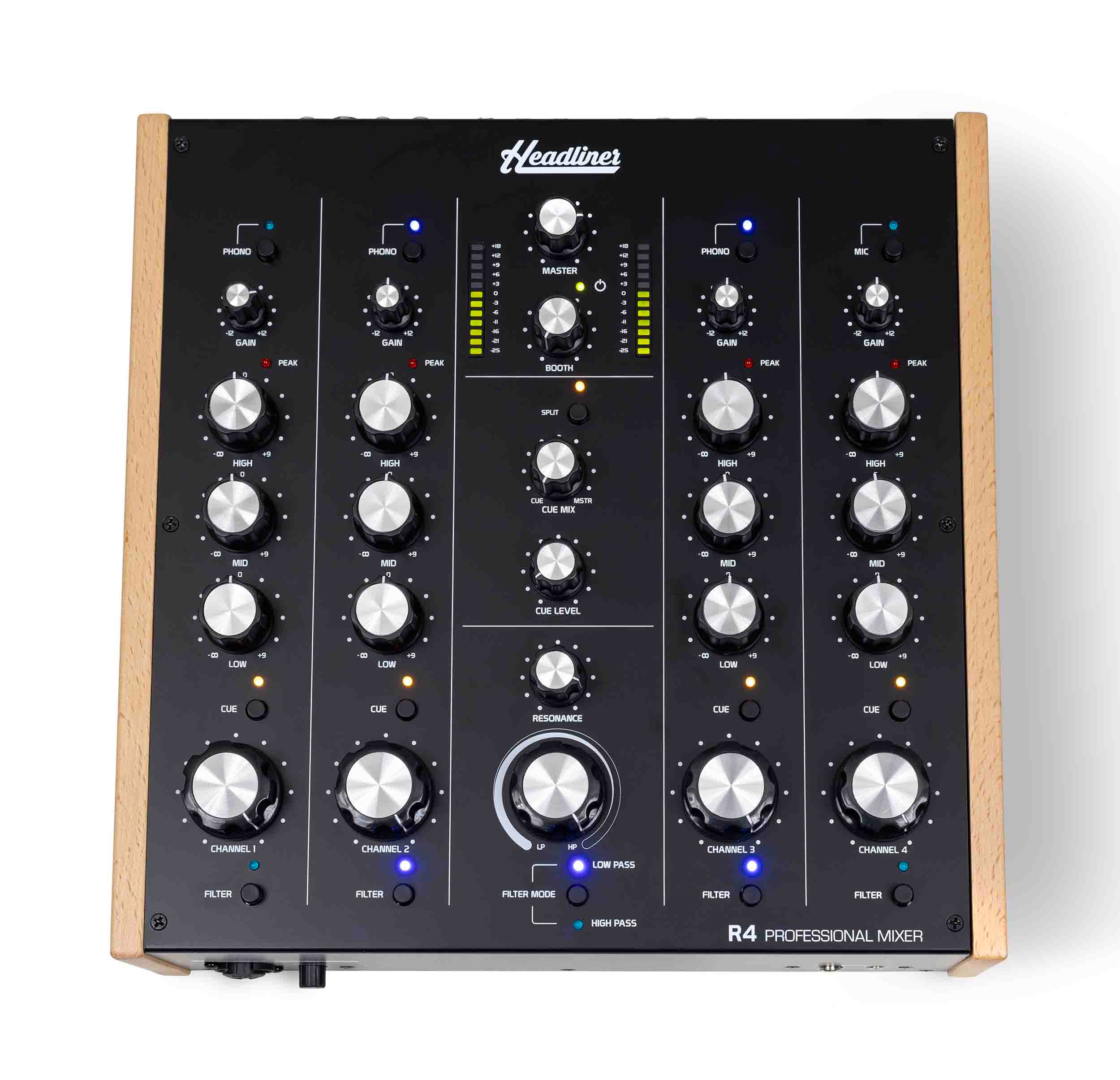

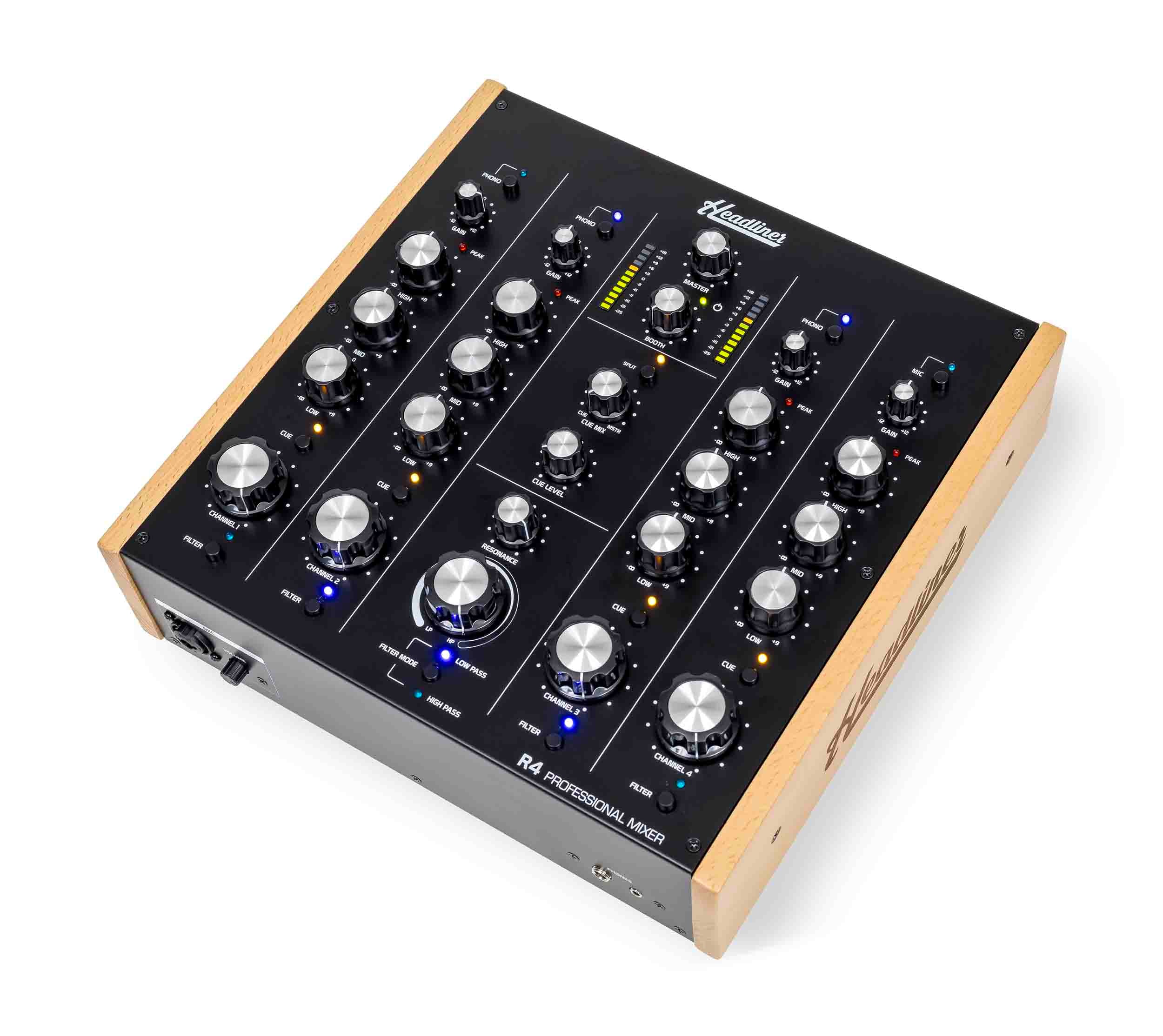

The Headliner HL90120, 4 Channel Rotary DJ Mixer is designed to elevate your DJ experience. Continuing the tradition of precision, warmth, and affordability, the R4 is packed with enhanced features and top-notch components, including genuine ALPS potentiometers, ensuring an unparalleled mixing experience.

Crafted with four Line inputs, three phono inputs, and one mic input on four stereo channels. Each channel boasts essential features like gain control with peak LED, a 3-band isolator EQ, headphone cue selector, generous channel volume knob, and a filter activation switch, granting DJs precise control over their sound.

At the heart of the R4 lies the Master channel, equipped with an analog filter, headphone monitoring, and a comprehensive output control section. Seamlessly toggle between High Pass / Low Pass Filter modes with Frequency and Resonance controls to shape your signature sound.

Empowering DJs with absolute control, the headphone Cue control section offers headphone volume control, headphones mix control (Cue/Master), and a split monitor switch for smooth transitions between outputs.

Featuring independent Master and Booth outputs, both equipped with volume controls and balanced XLR and unbalanced RCA connectors, the R4 ensures seamless connectivity across various sound systems. Dual LED level meters for the Master output facilitate precise monitoring and adjustment of audio levels. Additionally, the mixer boasts a dedicated Record output with unbalanced RCA jacks, and an additional microphone input with level control located on the front panel.

Sporting genuine ALPS potentiometers, a robust metal enclosure, and stained wood side panels, the R4 exudes a classic aesthetic that complements any DJ setup. Its modular internal construction and an external power supply connected via a locking Mini XLR guarantee superior audio performance.

The Headliner R4 stands as a testament to precision and warmth in the DJ realm. Whether spinning house, techno, or the timeless funk/soul/disco beats, this versatile mixer elevates your setup, ensuring your mixes stand out with exceptional quality and control.

Product Specifications:

Nominal Input Level: -50dBu

Frequency Response: 20Hz - 20kHz (+/- 0.1dB)

THD + N: < 0.1%

EIN: -120dBu (150Ω Load)

Input Impedance: 3 kOhm

Nominal Input Level: -10dBV (-7.8dBu)

Gain Range: -12dB to +12dB

Frequency Response: 20Hz - 20kHz (+/- 0.1dB)

THD + N: < 0.05%

Input Impedance: 47 kOhm

Maximum Input Level: -40dBu

Gain Range: -12dB to +12dB

Frequency Response: RIAA

THD + N: < 0.05%

Input Impedance: 47 kOhm

Nominal Output Levels, balanced: +4dBu

Maximum Output Level, balanced: +20dBu

Nominal Output Levels, unbalanced: -10dBV (-7.8dBu)

Maximum Output Level, unbalanced: +12dBu

Frequency Response: 20Hz-20kHz (+/-0.5dB)

Residual noise: <-80dBu

Dynamic Range: > 100dB

Crosstalk: < -65dB

THD + N: < 0.05%

Maximum Output Level: 70mA/channel into 150Ω

Minimum Load Impedance: 32 Ohms/channel

Type: External with locking mini-XLR connector

Input Voltage: 100-240v ~ 50/60Hz

Output Voltage: +/-15V; 500mA

Voltage Range: 32 Ohms/channel

Measurements (WxDxH): 12.2” x 12” x 3.35”

Weight: 7.7 lbs (3.5Kg)
