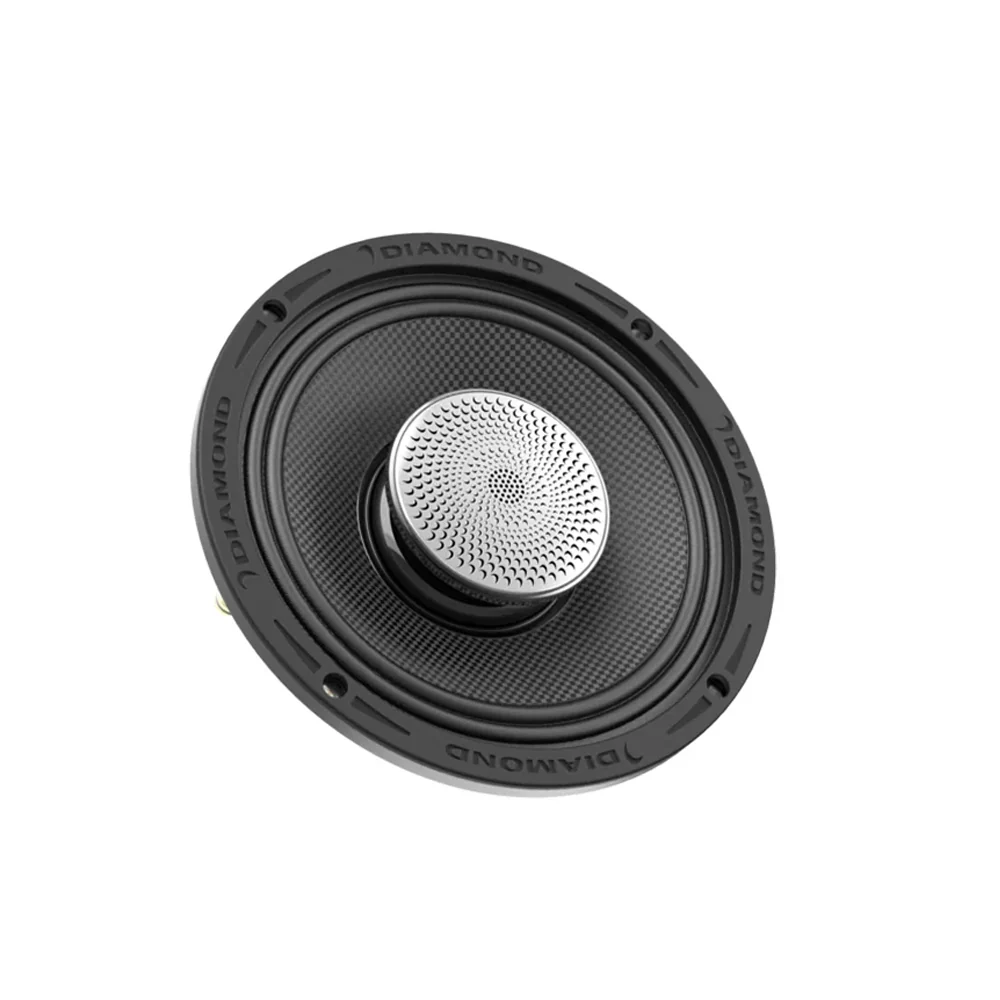

Diamond Audio MS652NEO4S 6.5" MS NEO Series 1200W 2-Way 4-ohm Powersports Motorcycle Shallow Speakers

Step into the future of sound with Diamond Audio’s NEO Series Coaxial Drivers — the pinnacle of audio innovation. At Diamond Audio, we’re driven by a relentless passion for perfect sound. That’s why we’ve reimagined the legendary Coaxial horn driver with our latest NEO Series, combining the best features of our NEO midbass and midrange drivers with our exclusive waterproof horn technology. The result? Unparalleled sound quality, exceptional output, and effortless installation.

Every element of these drivers is crafted to the highest standards, from the premium voice coils and advanced motor structures to the rock-solid basket design, flexible bi-amp capabilities, and waterproof components. These speakers don’t just play music — they transform your listening experience into something extraordinary. If you’ve heard our MS NEO drivers before, get ready for a whole new level of sonic brilliance.

Don’t settle for ordinary sound. Choose Diamond Audio’s NEO Series Coaxial Drivers — because your music deserves the best.

Specifications:

• SPEAKER SIZE - 6.5"

• SPEAKER TYPE - HORN LOADED CO AXIAL

• BI-AMPABLE YES

• OHMS (PER COIL) - 2

• NUMBER OF VOICE COILS - DUAL

• FIELD SERVICABLE VOICE COIL - YES

• CONE MATERIAL - CARBON FIBER

• DIAPHRAGM MATERIAL - (PEN) POLYETHYLENE NAPHTHALATE

• BASKET MATERIAL - CAST ALUMINIUM

• MAGNET TYPE - NEODYMIUM

• SURROUND MATERIAL - RUBBER

• WATER RESISTANCE -

• VOICE COIL DIAMETER - INCH (MM) - 2"

• THIELE/SMALL PARAMETERS

• SENSITIVITY (1W/1M): 93

• RE (Ω) [SERIES]: 3.2

• QMS: 10.357

• QES: 0.67

• QTS: 0.629

• FS (HZ): 151

• VAS (L): 2.756

• CMS (MM/N): 0.094

• MMS (G): 11.728

• SD (M2): 143.14

• BL (T*M): 7.289

• XMAX (MM): 1.2

• POWER HANDLING RMS: 200

• POWER HANDLING MAX: 400

• MOUNTING DEPTH: IN. (MM):2.74" (69.50MM)

• CUT OUT DIAMETER IN. (MM):5.63" (143MM)

• OVERALL DIAMETER IN. (MM):6.29" (159.68MM)

• OVERALL HEIGHT IN. (MM):3.38" (85.9MM)
