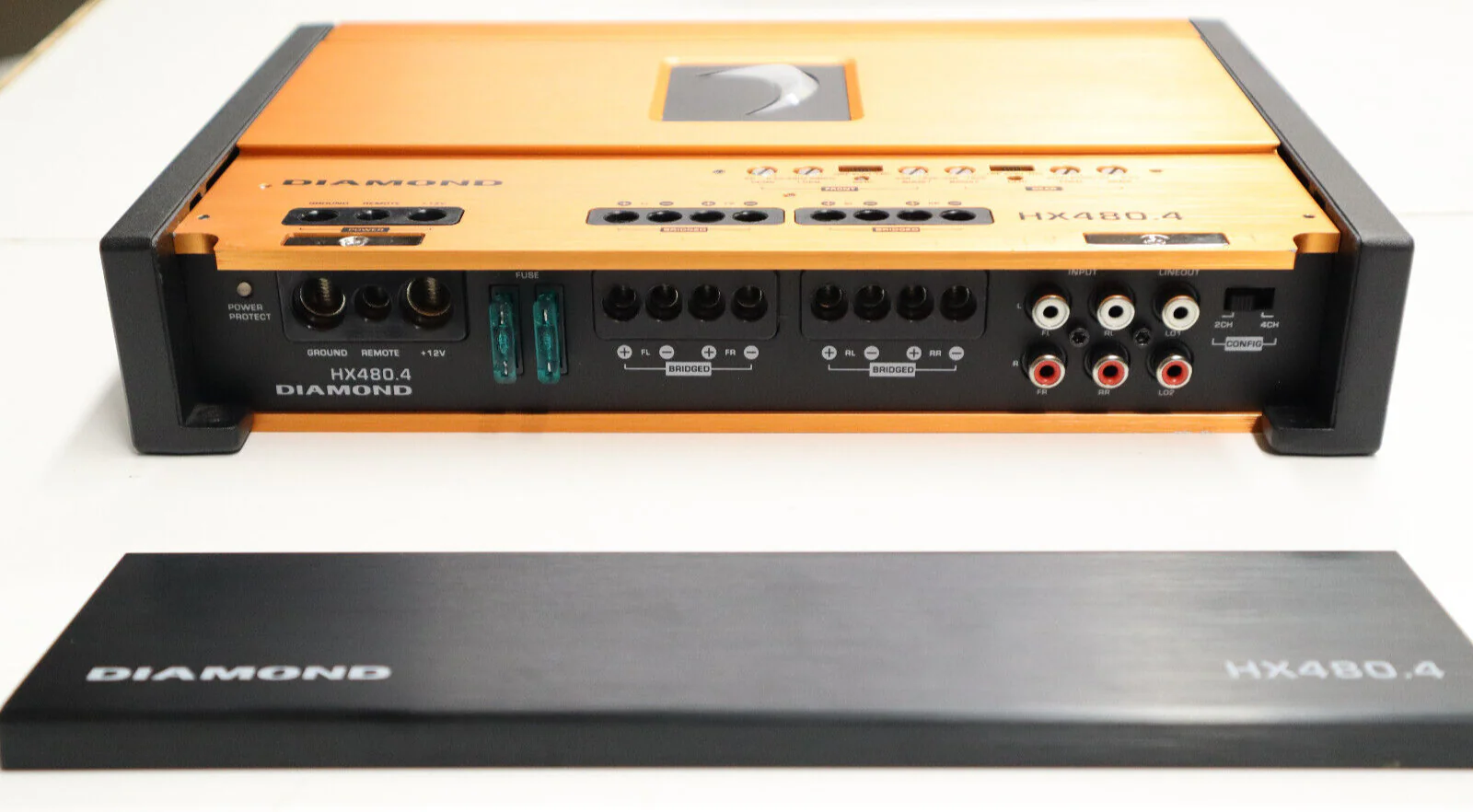

Diamond Audio HX480.4 4-Channel 480W RMS Full Range Class D

AmplifierAudiophile-grade high tolerance components - 4-layer PCB board with balanced differential inputs - full-range digital class-d Ir chip sets - fine-tuned variable - crossover and phase control- top mounted controls for convenient amplifier adjustment turn to hex series amplifiers for superior sound quality and unparalleled power for the ultimate audiophile system set up. Composed of high-tolerance grade components and tuning adjustments to fit your listening desires, hex series amplifiers are the choice for those who expect the best!

General Features:

• 120 W x 4 @ 4Ω
• 185 W x 4 @ 2Ω
• 370 W x 2 @ 4Ω bridged
• S/N: ≤ 95 dBA / THD: .06%
• Dimensions: (Remote Included): 8.75" x 7.67" x 2" (222 x 195 x 51.5 mm)
• Anodized Extruded Aluminum Heat Sink Provides Superior Thermal Performance
• 4-Layer PCB Board with Balanced Differential Inputs
• Full Range Class D IR Chipset
• "SNAP" Capacitors used Throughout the Circuit
• Audiophile Grade High Tolerance Components
• Spring Steel FET Clips Provide a Cleaner Board Design
• Illuminated Logo / Fully Concealed Mounting
• Output Clip Indicators for Precise Set-Up
• Fine Tuned Fully Variable Crossovers and Phase Control
• Top Mounted Controls for Convenient Amplifier Adjustment
