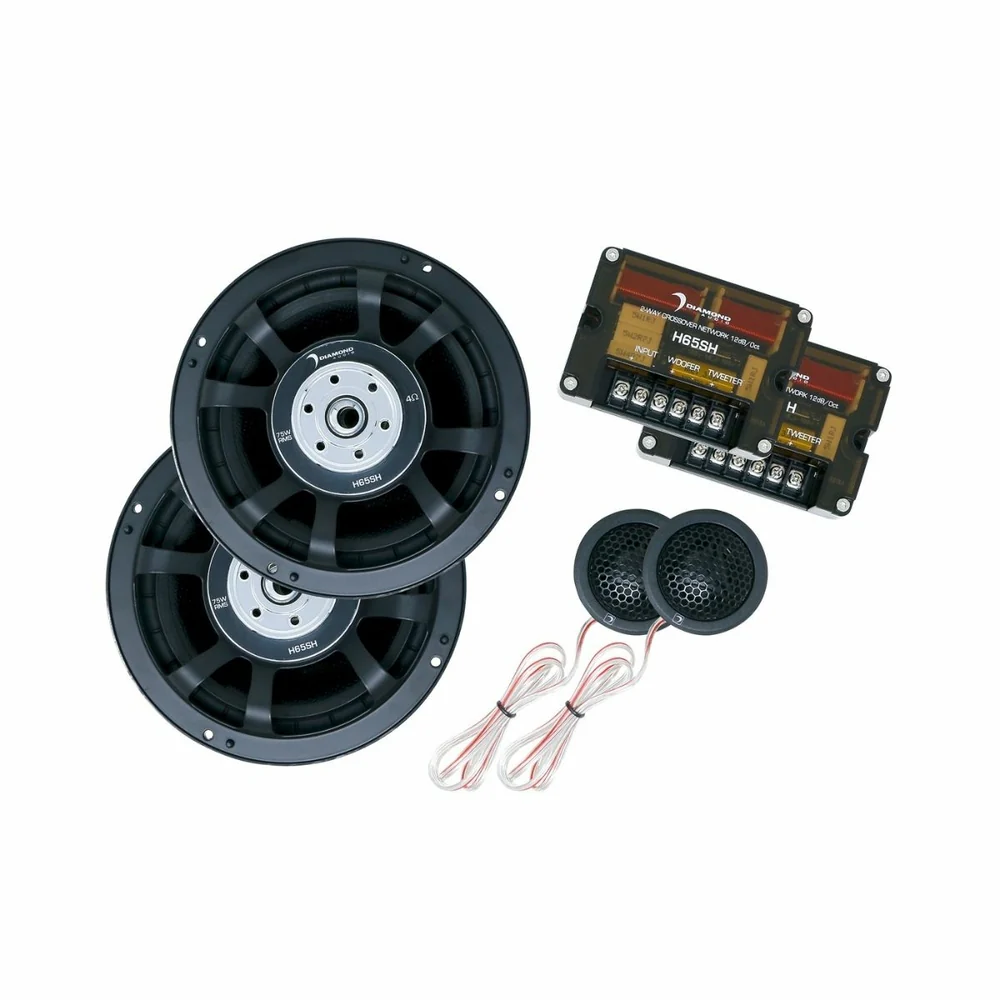

Diamond Audio H65SH HEX Series 6.5 “ 2-Way Shallow Component Set w/Silk Dome Tweeter
Diamond Audio H65SH HEX Series 6.5 “ 2-Way Shallow Component Set w/Silk Dome Tweeter
Discover the unparalleled audio excellence of Diamond Audio's HEX Series Speakers, where high-end craftsmanship meets esoteric design. Revered for their crisp, extended highs and sparkling detail, these speakers offer pinpoint mid-bass accuracy, making them the ultimate choice for discerning audiophiles and professional musicians alike.
The HEX Series embodies a rich heritage of innovation and quality, delivering an in-car listening experience that is nothing short of extraordinary. Utilizing exotic materials and cutting-edge technology, these speakers are engineered to perfection.
The HEX Series Speakers are not just a product; they are a statement of high-end audio prowess. Experience the solid, die-cast aluminum alloy basket that houses the powerful components, ensuring durability and aesthetic appeal. The adjustable phase and tweeter attenuation allow you to tailor the sound to your preferences.
Elevate your in-car audio experience with the Diamond Audio HEX Series Speakers. Feel the difference that superior craftsmanship and cutting-edge technology can make. Rediscover your favorite music with the HEX Series – the preferred choice of professional recording artists and musicians around the world.
General Features:
- 6-1/2" Diamond Audio HEX Series 2-way Component System Car Speakers
- Peak Power Handling: 300 watts per set / 150 watts each side
- RMS Power Handling: 150 watts per set / 75 watts each side
- Reinforced Glass Fiber cone material
- 2" Silk Dome tweeters
- 1.5" voice coil
- FEA optimized high-power motor with vented pole piece
- Klippel DA optimized motor and suspension symmetry
- Oversized speaker terminals for large gauge speaker wire
- 2-part crossover terminal
- Solid, die-cast aluminum alloy basket
- Shallow-mount design
- Top-mount Depth: 1.3"
- Cutout Dimensions: 5.7"
- Impedance: 4 ohms
- Sensitivity: 89 dB
- Authorized Internet Dealer
- 1-year Manufacturer's Warranty
The H65SH component system includes a pair of crossovers, providing attenuation and crossover adjustments. The tweeter adjustment has settings for -3dB of attenuation, 0dB, +3dB of gain. There is also a "LPF/FLAT" switch that you may use to correct issues caused by placement of the drivers in the vehicle.
REAR ACOUSTIC FILL
Each H65SH component crossover has a third set of outputs marked “RAF”. This stands for Rear Acoustic Fill. This output can be used to power and additional speakers off the same channel without affecting the impedance load on the source unit. The level of this output is pre-determined at -10dB of attenuation, for a REAL “rear fill” This creates a much more real stereo image and a bigger sound stage.
Warning:
This product can expose you to chemicals known to the State of California to cause cancer. For more information, go to P65Warnings.ca.
