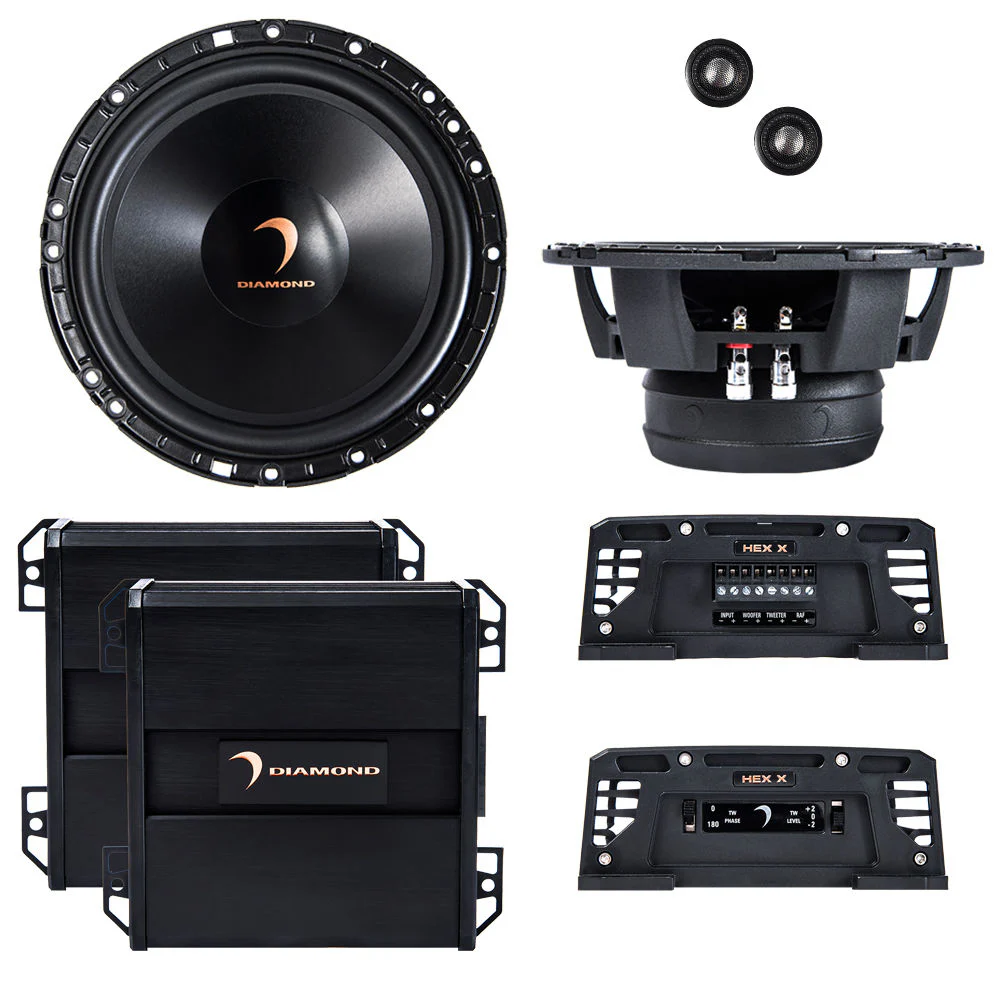

Diamond Audio H65A HEX Series 6.5 “ 2-Way Component Set w/25mm Aluminum Dome Tweeter
Diamond Audio H65A 300W Peak (150W RMS) 6.5" HEX Series 2-Way 4-ohm Component Speaker SystemÂ
Discover the unparalleled audio excellence of Diamond Audio's HEX Series Speakers, where high-end craftsmanship meets esoteric design. Revered for their crisp, extended highs and sparkling detail, these speakers offer pinpoint mid-bass accuracy, making them the ultimate choice for discerning audiophiles and professional musicians alike.
The HEX Series embodies a rich heritage of innovation and quality, delivering an in-car listening experience that is nothing short of extraordinary. Utilizing exotic materials and cutting-edge technology, these speakers are engineered to perfection.
The HEX Series Speakers are not just a product; they are a statement of high-end audio prowess. Experience the solid, die-cast aluminum alloy basket that houses the powerful components, ensuring durability and aesthetic appeal. The adjustable phase and tweeter attenuation provide the flexibility to tailor the sound to your preferences.
Elevate your in-car audio experience with the Diamond Audio HEX Series Speakers. Feel the difference that superior craftsmanship and cutting-edge technology can make. Rediscover your favorite music with the HEX Series – the preferred choice of professional recording artists and musicians around the world.
General Features:
- New 6.5” die-cast aluminum alloy basket
- 25mm neodymium tweetersÂ
- Hard anodized black aluminum cone
- FEA optimized high power motor with vented pole piece
- Klippel DA optimized motor and suspension symmetry
- Oversized speaker terminals for large gauge speaker wire
- Neodymium tweeters are available in silk or aluminum
- Grill and trim ring included.
Specifications:
THIELE/SMALL PARAMETERS
- Sensitivity (dB): 88.3
- Re(Ω): 3.6
- Qts: 0.68
- Fs (Hz): 65
- Vas (L): 11.2
- Xmax (mm): 2.4
- Power (W): 75W RMS/150MAX
- Mounting Diameter: 5.73“ (95mm)
- Mounting Depth: 2.9“ (73.5mm)
CROSSOVER
Each HEX component system comes with a pair of model-specific adjustable crossovers, giving you attenuation and phase adjustments. The tweeter adjustment has settings for -2dB of attenuation, OdB, or +2dB of gain. There is also a “Phase switch” that you may use in different application/locations to correct for acoustical phase issues caused by placement of the drivers in the vehicle’s particular environment.
REAR ACOUSTIC FILL
Each HEX component crossover has a third set of outputs marked “RAF”. This stands for Rear Acoustic Fill. This output can be used to power and additional speakers off the same channel without affecting the impedance load on the source unit. The level of this output is pre-determined at -10dB of attenuation, for a REAL “rear fill” This creates a much more real stereo image and a bigger sound stage.
Warning:
This product can expose you to chemicals known to the State of California to cause cancer. For more information, go to P65Warnings.ca.
