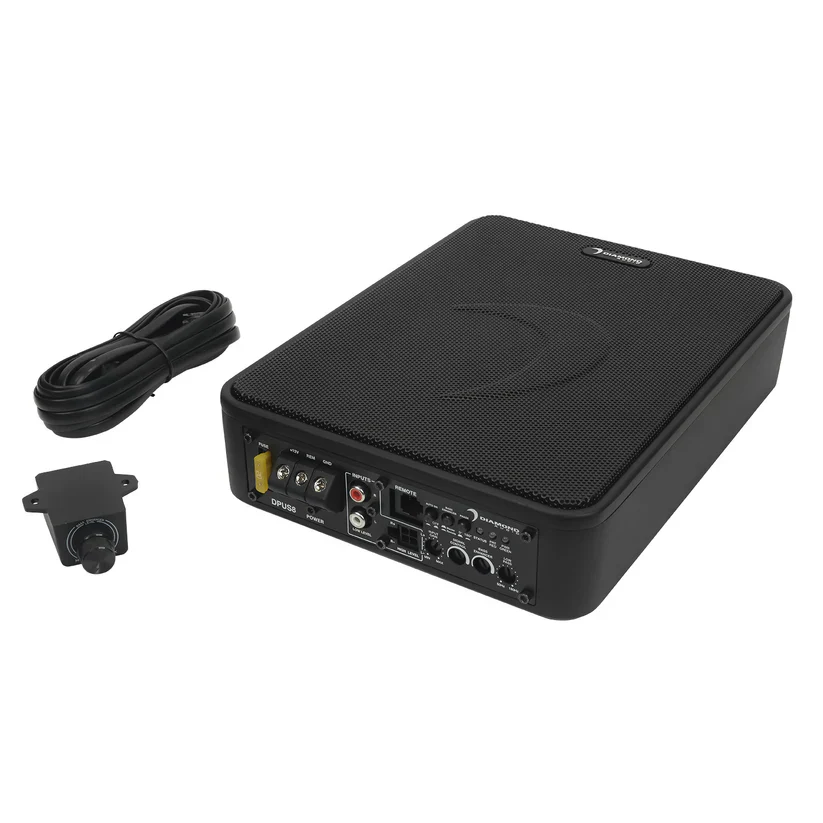

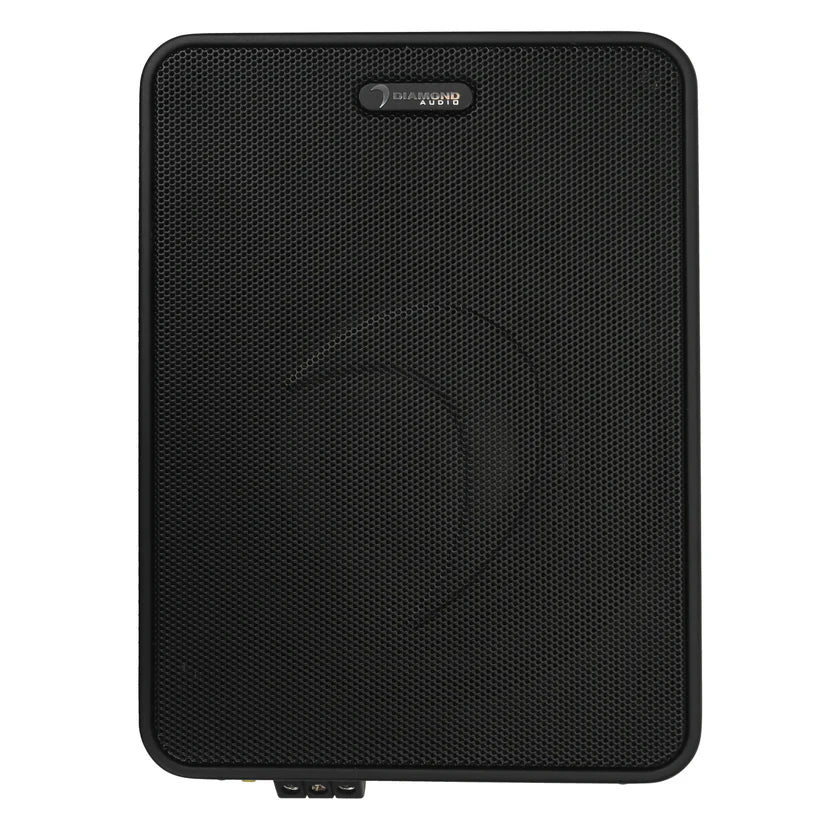

Diamond Audio DPUS8 DMD Series 8" Active Slim Subwoofer w/Bass Enhancement

The DPUS8, an addition to Diamond’s line of under-seat enclosures, boasts a range of unique features designed to simplify installation, address audio issues from OEM vehicle’s audio signal, and alleviate space concerns. For OEM integration, the DPUS8 offers 20V line-level inputs and auto turn-on circuits. To com-bat poor OEM signal quality, the DPUS8 features dual bass controls, one for level and the second with Diamonds’ exclusive bass enhancement circuit. The DPUS8 also includes the standard low-pass and subsonic filters, as well as phase adjustments. Notably, the enclosure/amplifier housing is remarkably compact, ensuring it fits a wide range of applications while still delivering impressive output from the onboard 8” active slim subwoofer and 100WRMS amplifier.

General Features:

• Single 8" Sealed Loaded Active Slim Subwoofer Enclosure with Built-In Amplifier
• Power Handling:
• Peak: 250 watts
• RMS: 100 watts
• Final Impedance:
• Built-in Class D amplifier
• Includes Remote Bass Level Controller
• Sealed Underseat enclosure
• Compact and fits under vehicle seat without compromising storage
• Simple installation, no major modification required
• 4 AWG gauge power and ground wiring is recommended for installation
• Enclosure Dimensions: 7.1" TD x 7.1" W x 8.84" H
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty

Subwoofer Features:

• 8" Active Slim Subwoofer
• Polypropylene Cone material
• Rubber Surround material
• Magnet Motor Structure
• DMD Series

Amplifier Features:

• Class D Monoblock Amplifier
• Diamond bass enhancement circuit
• PWM MOSFET power supply
• Adjustable input sensitivity (low level and high level)
• Power/Protect/Status LED indicator
• Thermal, short, overload protection
• Phase Adjustment: 0 - 180 degree
• Low-Pass Crossover Frequency: 50 - 180 Hz
• Bass Boost: 0 - 16 dB
• Subsonic Filter: 20 Hz (fixed)
• Speaker-level (high-level) inputs (20 volts)
• Fuse Rating: 20A x 1

Enclosure Features:

• 8" Active Slim Subwoofer Sealed Enclosure
• Super slim enclosure design
• Box Finish: Die-cast Black Aluminum
