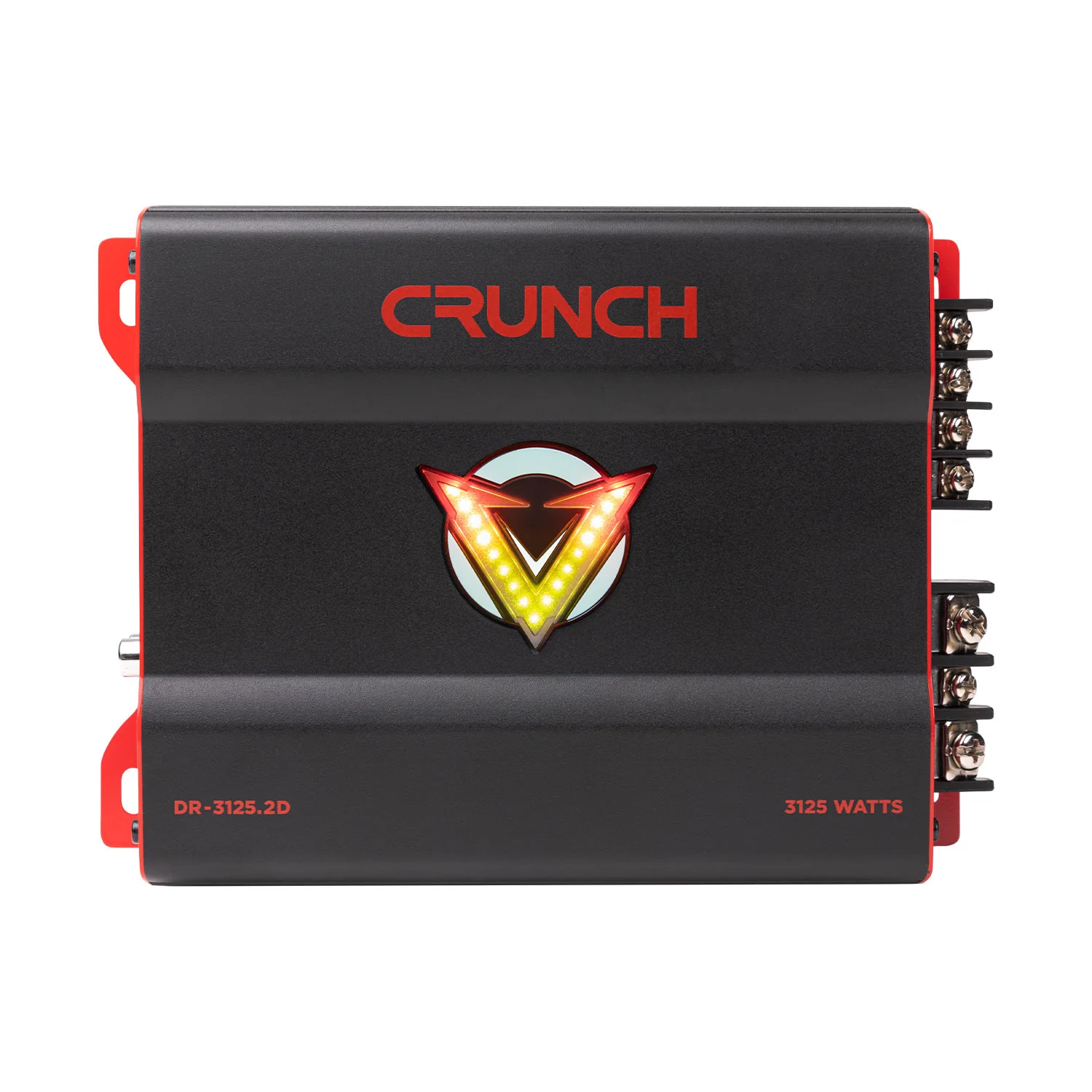

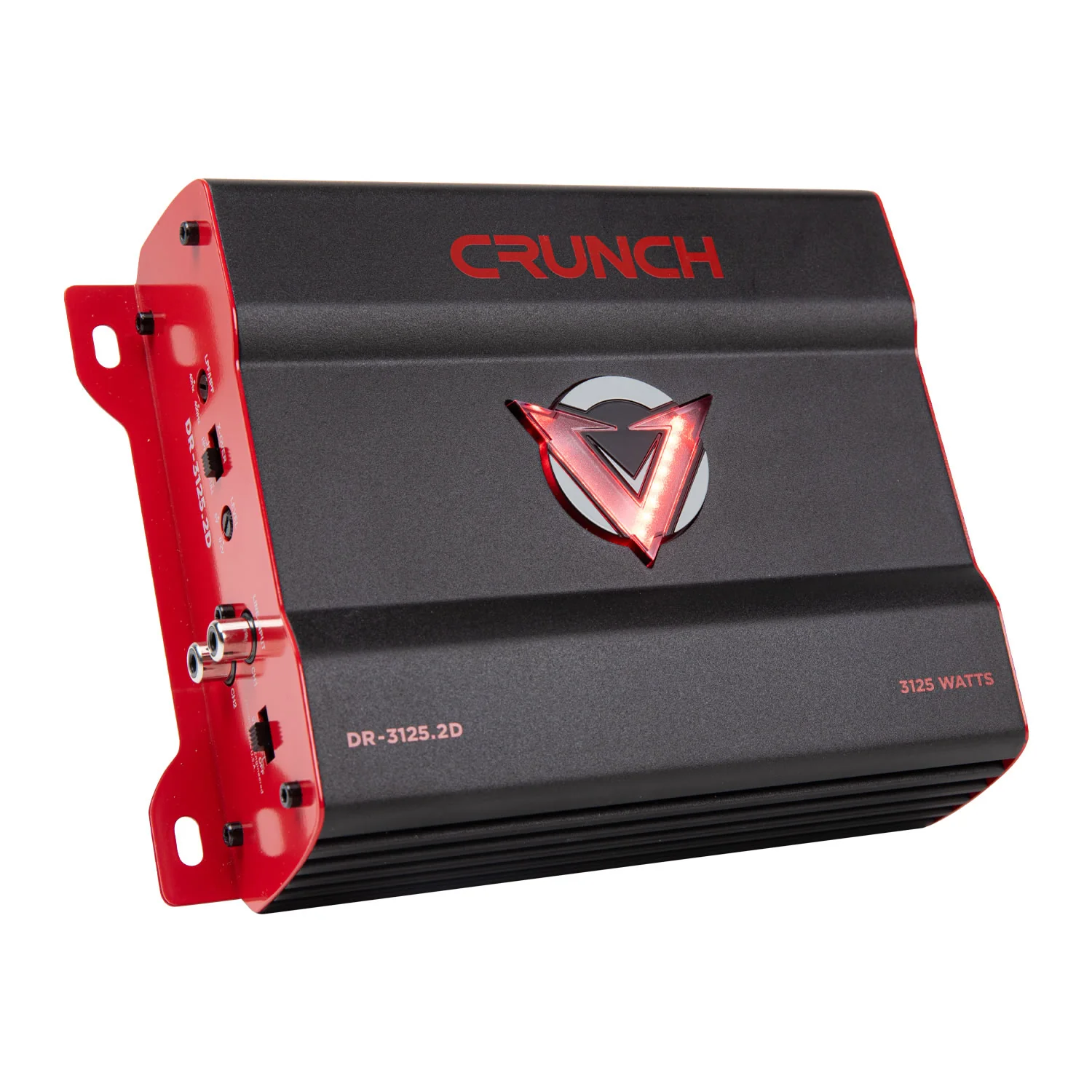

Crunch DR-3125.2D V-DRIVE 3125 Watt Two Channel Amplifier

Crunch DR-3125.2D V-DRIVE amplifier series features a built-in LED VU-Meter for adjusting gain levels, Quick Thermal Dispersion Technology delivering 3125 watts to speakers, and electronic crossovers.

General Features:

• Low Noise Preamplifier Circuit
  Maximum low voltage signal from the source unit comes into the amplifier through a low voltage circuit which delivers minimal distortion through the amplification process.
• RCA Inputs
  Highest sound quality connection with quality RCA materials helps prevent interference and minimize distortion in the signal path.
• Operation Mode
  Stereo, Bridged Mono or Stereo/Bridged Mono Simultaneously
• Crossover Type
  Fully Adjustable 12dB Crossovers
• Electronic Equalizer
  Control of amplifier output with on board electronic crossover to tailor specific frequencies to speakers and subwoofers.
• Class / Topology
  Class D: Very efficient Class D design to drive additional power to speaker frequencies while remaining a small footprint
• Output Device Technology
  Proprietary Crunch SPEED-FET MOSFET components maximize the amplifier's power efficiency while improving sound quality and minimizing distortion.
• Heat Sink
  QTD Technology Aluminum: Quick Thermal Dispersion Technology assures additional mass in the aluminum heat sink keeps the amplifier running cool with nearly undetectable distortions during normal music listening.
• Power Supply
  Pulse Width Modulated(PWM) Power Supply delivers power with minimal impact on the vehicle's electrical system.
• Output Connections
  Nickel-plated brass connection terminals allow for a secure connection while resisting corrosion.
• Connection Type
  Screw Down Connectors: Easy access for hand tool allowing a quick and secure connection.
• LED System Protection Circuitry Diagnostics
  Monitor overload and speaker short protection with the lighted indicator on the amplifier end panel.
• Additional Features
  Selectable Logo Illumination Modes: Switch between full constant red LED lights, VU Meter mode, or full off. When switched to VU Meter mode, the amplifier's logo reflects the audio level, making it useful for gain adjustment and creating a cool lighting effect.

Specifications:

• Type
  Amplifier
• Brand
  Crunch
• Series
  V-DRIVE
• Category
  Mobile
• Condition
  New
• Color
  Black
• Warranty
  1 Year
• Compatible Vehicles
  Universal
• Amp Class
  Class D
• Amp Total Channels
  2
• Amp Max Power (watts)
  3125
• Amp Power @ 2 Ohms (ch x watts)
  2 x 1560
• Amp Power @ 4 Ohms (ch x watts)
  2 x 780
• Amp Mono Bridged @ 4 Ohms (ch x watts)
  1 x 3125
• Amp Crossover
  Variable Electronic 12dB Per Octave
• Amp Variable High Pass Crossover 12dB per Octave
  40Hz-400Hz
• Amp Variable Low Pass Crossover 12dB per Octave
  40Hz-400Hz
• Amp Variable Voltage
  0.2-6V
• Amp Signal to Noise
  >100dB
• Amp Frequency Response
  20Hz-20kHz
• Amp Total Harmonic Distortion (THD)
  < 0.5%
• Amp Speaker Level Audio Inputs
  RCA
• Amp Power Terminal 12v/GND
  4 AWG
• Amp Speaker Terminal Wire Gauge
  8 GA
• Amp Fusing
  External 125A
