Absolute CAM1500S Silver Chrome License Plate Frame Front or Rearview Reverse Backup Camera W/ Built-In I.R. Camera for Pioneer MVH-300EX MVH300EX

Displays a reversed backup camera image on the monitor to duplicate the normal view seen in a rear-view mirror. The perfect solution to get rid of that poor rear-view visibility in your car, boat, trailer, camper, truck, or any vehicle that has no rear-view mirror or poor rear vision. Connect to any type of monitor with a composite yellow RCA jack for crystal clear resolution mounted inside will fit into most vehicle keyholes, no other installation is needed. High-definition 170° wide viewing angle Waterproof and dust-proof design 8pcs IR LED light with night vision Minimum illumination auto fill light Concealed installation.

General Features:

• Front or Rearview Reverse Backup Camera
• Solid Silver Metal Frame Protects Form Incidental Damage
• Water -Cold Weather & Vibration Proof Ip67
• Viewing Angle 90 °(Default) /170 ° (optional)
• Image Solution 712 x 486 pixels
• Powerful 1/4 CMOS RGB Color/ Image Sensor
• Effective Pixels 628* 586
• Sensor Size 5.961* 4.276mm
• Min Resolution 420 Tv Lines
• Lens 1.8 Mm 170 Degrees
• Electronic Shutter Speed 1/50-1/100,000 Per Second
• Low Current Consumption 300ma Max
• Min Operating Temperature 30 Degrees C
• Cold Temperature Anti Fog Function

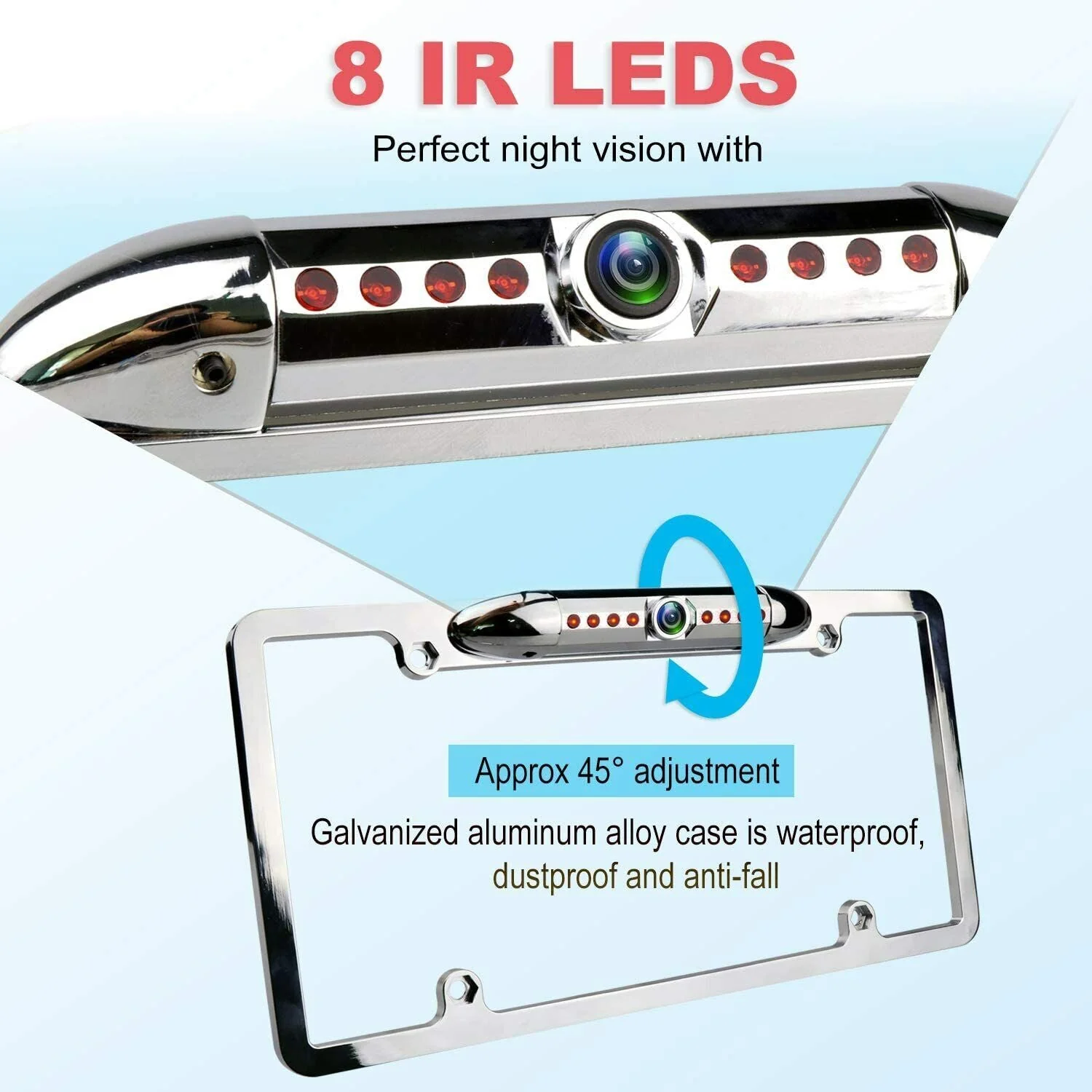

• 8 Powerful Infrared LEDs
• Real-Time Viewing Up To 300 Meters
• 170 Degree Adjustable Wide-Angle Lens for Optimal Blindspot Elimination
• Min Illumination 0 Lux
• On-Screen Distance Guide Display for Assisted Parking
• Easy-to-Follow Installation Instructions
• Backup Camera Comes with 17’ Video Cable Mounting Hardware
• Video Cable Available for SUV & RV Applications
• TV System NTSC
• Definition 480TV lines
• Synchronous system Internal synchronization
• Scanning System 2:1 interlaced scanning
• Vertical sync frequency 60Hz
• Min. Illumination 1Lux/F 1.2
• Video Output 1.0vp-p. 750hm.
• Gamma coefficient 0.45
• AGC Auto
• SNR > 48db
• White Balance Auto.
• Electronic Shutter 1/60-1/20,000 second
• BLC Auto
• Working current Max 120mAh
• Power supply DC 12V
• Working temperature -20°C - 70°C
• Storage temperature -40°C - 80°C
• 1 Year Warranty Included

THIS IS A BRAND-NEW MODEL NIGHT VISION BACKUP CAMERA AND WILL WORK WITH PIONEER MVH-300EX MVH300EX,...., THIS ITEM IS NOT MANUFACTURED BY PIONEER, ITEM RECEIVED MAY DIFFER SLIGHTLY FROM THE PICTURES SHOWN.
