ART USBMIX Mini USB Recording Mixer

The USB Mix is a portable analog mixer and class-compliant digital audio interface.

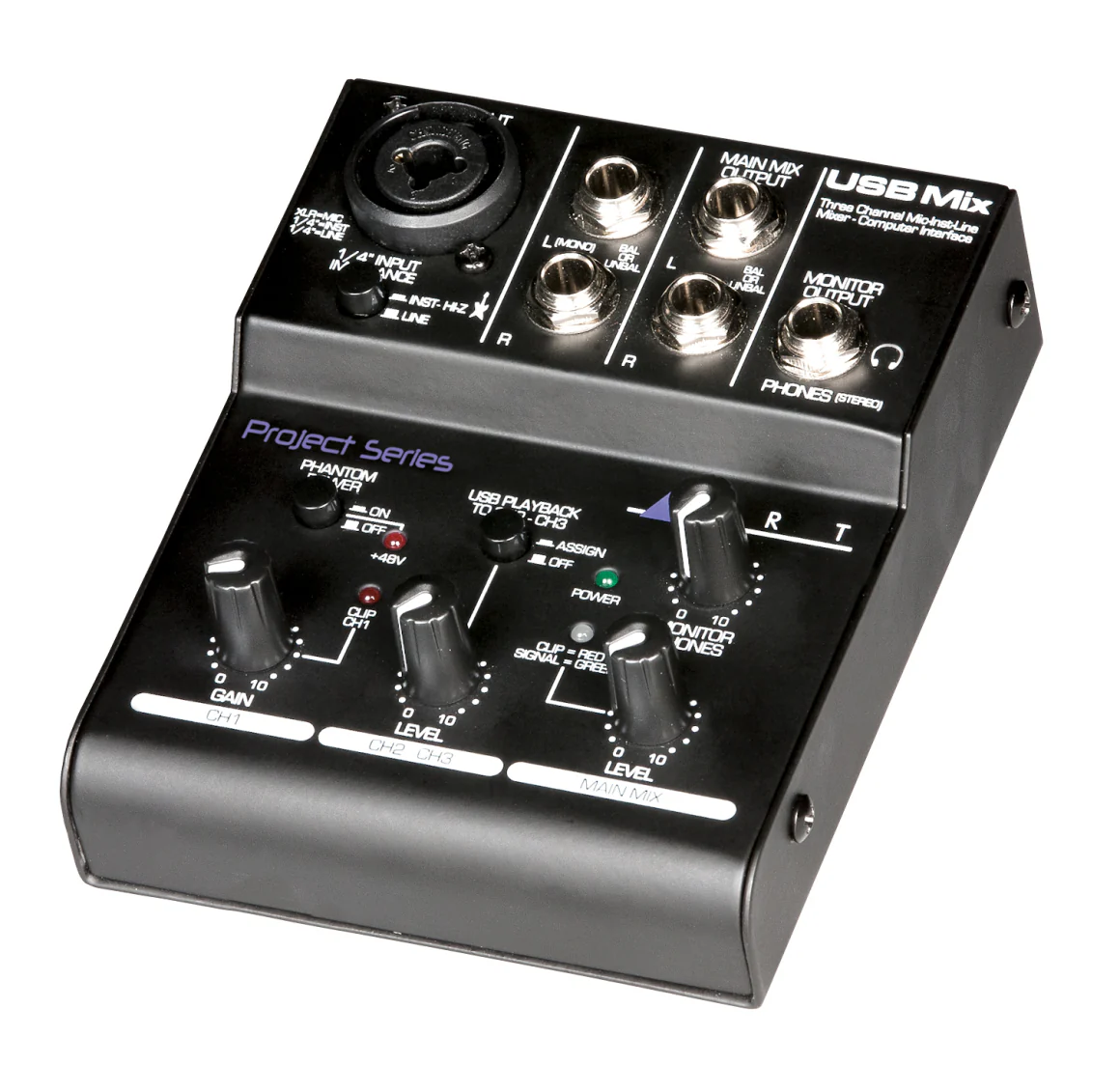

Channel 1 features an XLR / 1/4 combo jack that can accept mic, line, or instrument signals. It also has switchable phantom power to work with condenser mics. Channels 2 and 3 are configured as a stereo pair with 1/4 line inputs.

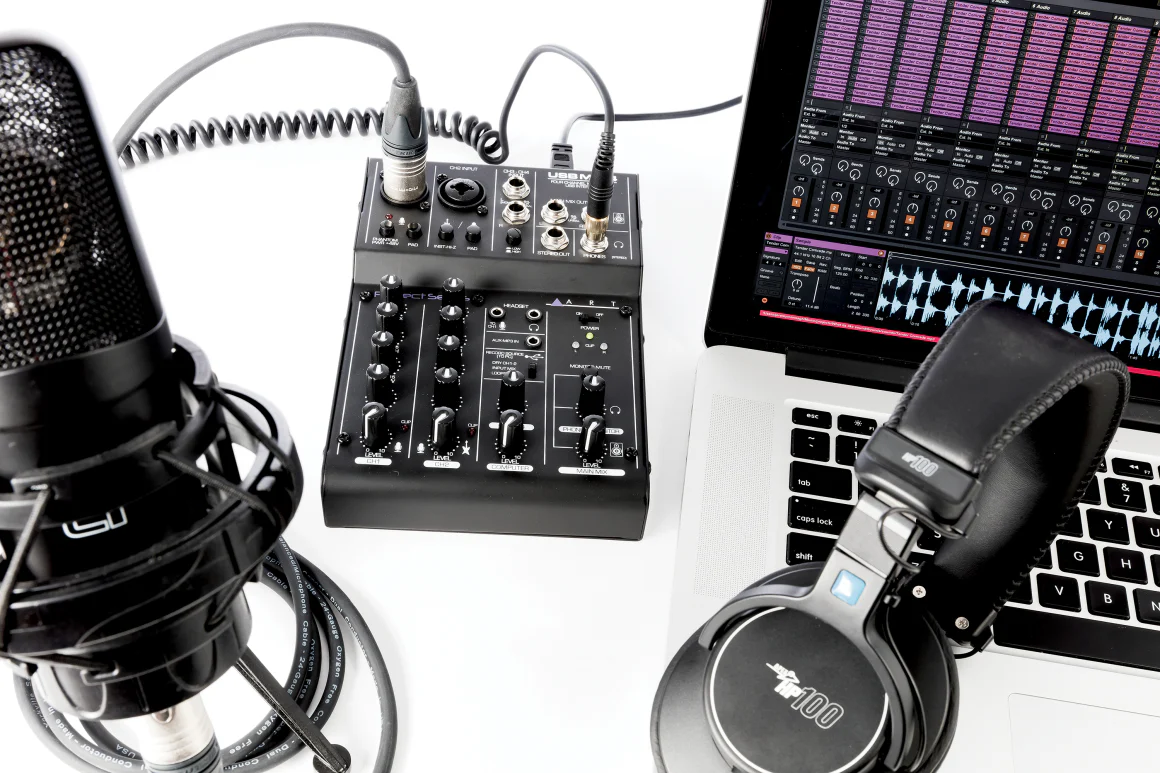

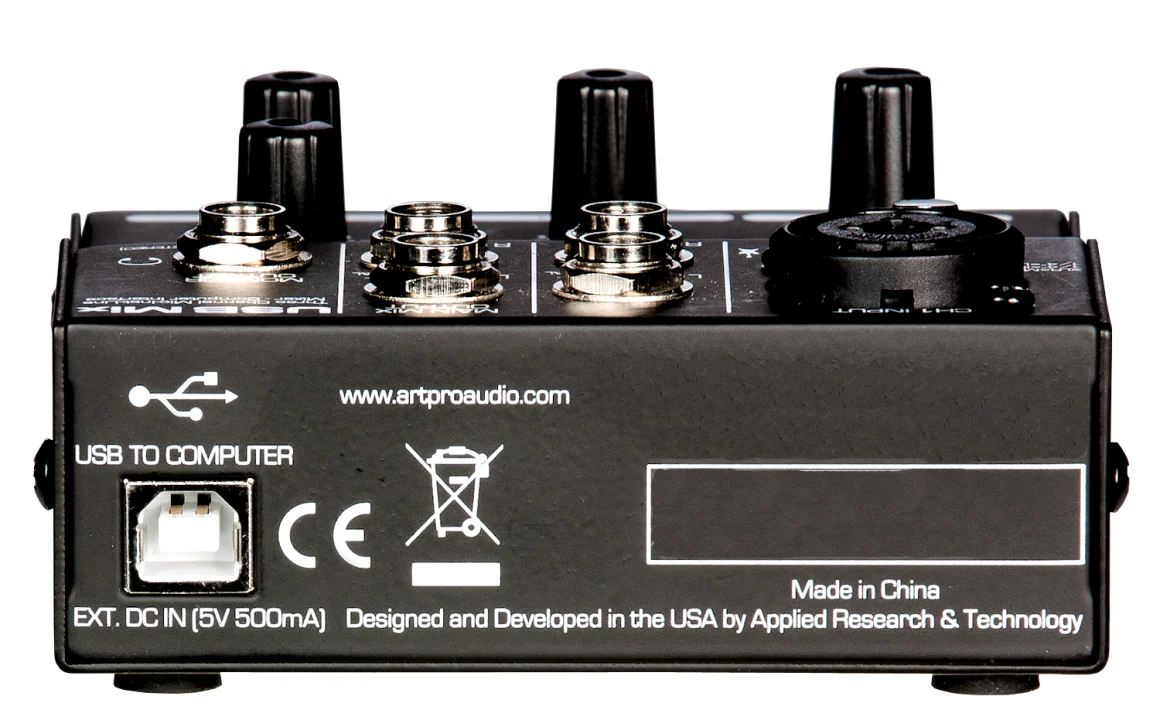

You can switch between monitoring only the mixer inputs, or blend them with the audio playback from your recording software. There are stereo outputs for studio monitors, a headphone output with an independent volume control, and a USB 2.0 connection for your computer or mobile device.

Easy to set up and use, the USB Mix is a compact and convenient entry point into digital recording, and a convenient bus-powered solution for mobile tracking.

Need more channels? Check out the USB Mix 4 and USB Mix 6.

General Features:

• USB powered, no external power supply needed when used with a computer
• Balanced XLR or unbalanced 1/4-inch Instrument inputs with switchable impedance
• Switchable low noise +48V phantom power
• Balanced 1/4-inch TRS inputs for stereo or mono line-level sources
• 1/4-inch TRS output jacks work with balanced or unbalanced lines
• Stereo 1/4-inch TRS headphone jack with independent level control for output monitoring
• Independent controls for both sets of inputs, main output, and headphone monitor
• Green/Red LED signal/clip indicator
• Switchable assignment of USB playback to channels 2 and 3
• USB 2.0 compliant USB cable, AC adapter, and Audacity recording software included

Specifications:

Inputs	XLR balanced / 1/4″ unbalanced “Combo” jack (ch1 input) 1/4″ balanced or unbalanced (Ch2-Ch3 inputs)
Outputs	1/4″ TRS balanced (Main Mix outputs) 1/4″ TRS stereo (Monitor output)
Input Impedance	240k (Inst-HiZ), 20k Ω (Line) (Ch 1, Ch2-Ch3 1/4″ inputs) > 4k Ω (Ch1 XLR input)
Output Impedance	<1k Ω (balanced 1/4″), <500 Ω (unbalanced 1/4″) 100 Ω (Monitor output)
Maximum Input Level	+4 dBu (XLR input), +14 dBu (1/4″ input)
Maximum Output Level	+14 dBu (Main Mix Outputs), +13 dBu (Monitor output)
Frequency Response	20 Hz – 20 kHz (+0, -1 dB)
Total Harmonic Distortion	<0.01% @ 1 kHz
Equivalent Input Noise	-120 dBu typical (XLR balanced, max gain), -100 dBu typical (1/4″)
Signal to Noise Ratio	> 90 dB typical (Ref 0 dBu)
CMRR	> 54 dB typical
Phantom Power	Switch selectable, +48 V DC, filtered, current limited
Connectivity	USB 2.0 compliant, Windows 7, Vista, XP, 2000, ME, 98SE Mac OS 9.1 / OS X computers with native USB support, Linux
Resolution	16 Bit, 44.1 kHz or 48 kHz, USB selectable from computer 0.4 ms A/D latency @ 44.1 kHz
Enclosure	All steel black finish
Power Requirements	5.0V DC @ <500 mA (external) or USB bus powered @ 150 mA typical
Dimensions (HWD)	1.6″ x 4.0″ x 4.75″ (4.1 cm x 10.1 cm x 12.1 cm)
Weight	1.1 lbs / 0.5 kg
Note	0 dBu = 0.775Vrms Weight includes power supply and USB cable

**Specifications subject to change without notice
