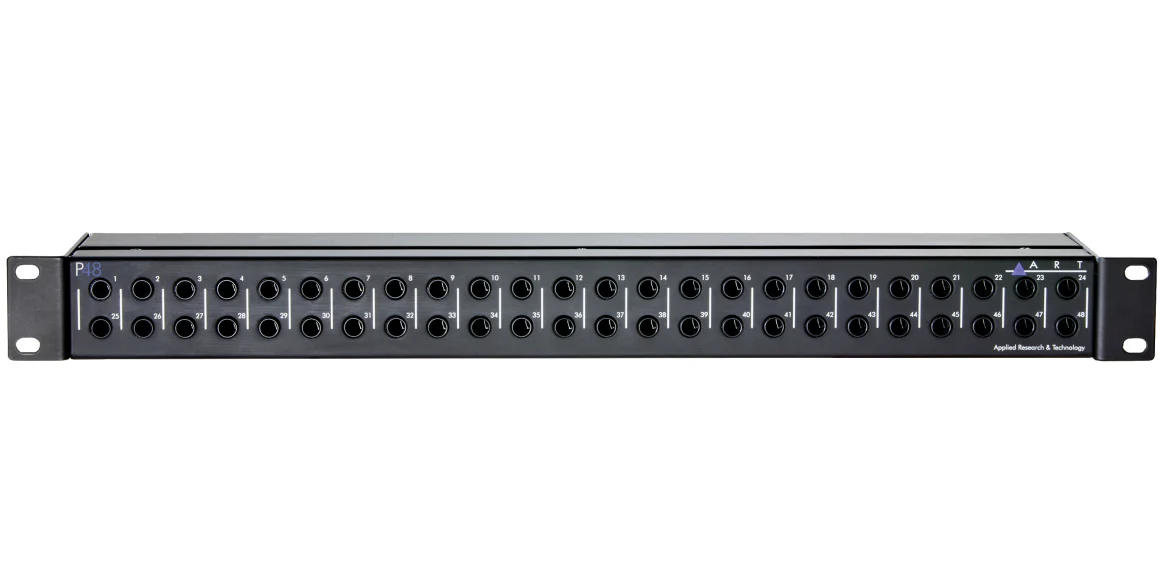

ART P48 48-point 1/4 inch TRS Balanced Patchbay

The P48 simplifies connecting and re-routing signals in your studio or live rack.

It’s a 48-point patchbay, which means there are 24 channels of linked inputs and outputs, all with balanced 1/4” TRS connections.

Each channel can switch between normal and half-normal operation. In normal operation, connecting the front output will break the connection between the rear input and output. In half-normal operation, the rear connection remains unbroken so you can split the signal to a second destination.

It adapts quickly and easily to your workflow. Unlike some patchbays which require that you physically flip channel modules, the P48 has a button on each channel to change between normal and half-normal operation.

It also features a shielded 1U steel chassis, a passive design so no power is required, reversible rack ears, and high-quality connectors for long-term reliability.

General Features:

• 24 Channels of Linked Input / Output Pairs
• 1/4" TRS Connections
• Switchable between Normal and Half-Normal Operation per Channel
• Passive Design - No Power Required
• Fully Shielded Steel Enclosure
• 1U Rackmount
• Reversible Rack Ears

Specifications:

CMRR	Better than -90 dB (-95 dB Typical)
Isolation	Better than -90 dB (-95 dB Typical)
Dimensions (DWH)	3.5" x 19" x 1.75" 89 mm x 483 mm x 44 mm
Weight	4.5 lbs / 2 kg

**Specifications subject to change without notice
