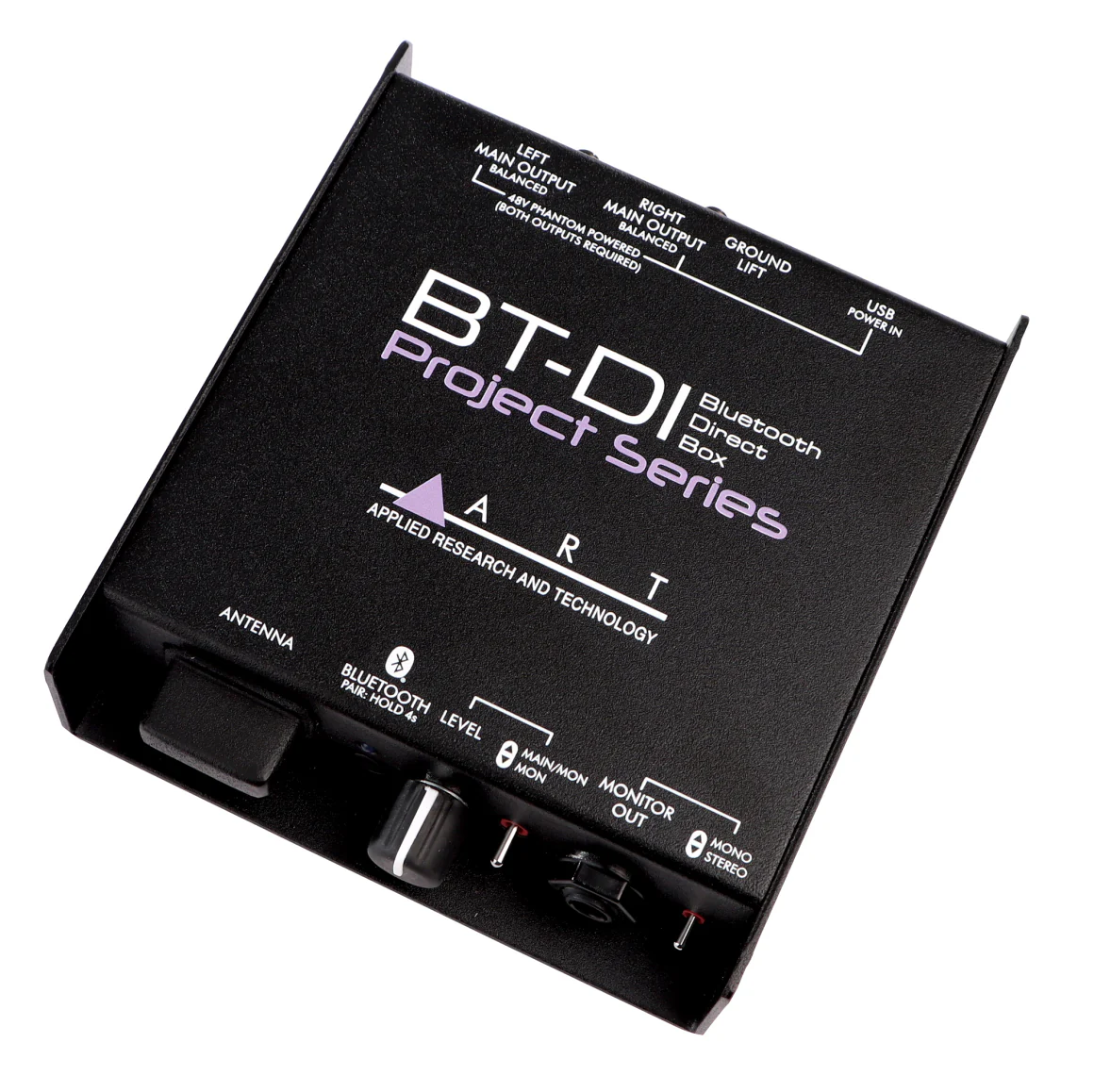

ART BTDI Bluetooth® Direct Box
ART BTDI Bluetooth® Direct Box
The BT-DI lets you connect Bluetooth® audio to a mixer, PA system, or audio interface.

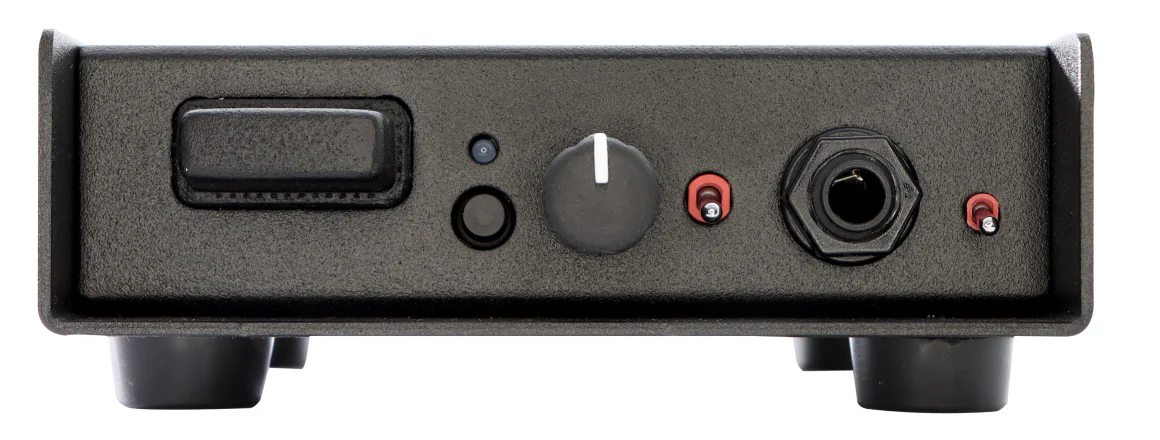

It’s a rugged unit with simple controls. Hold the Bluetooth button to pair or disconnect a device. A front panel switch selects between a fixed volume at the main outputs or variable adjustment with the Level knob, which also controls the monitor output.

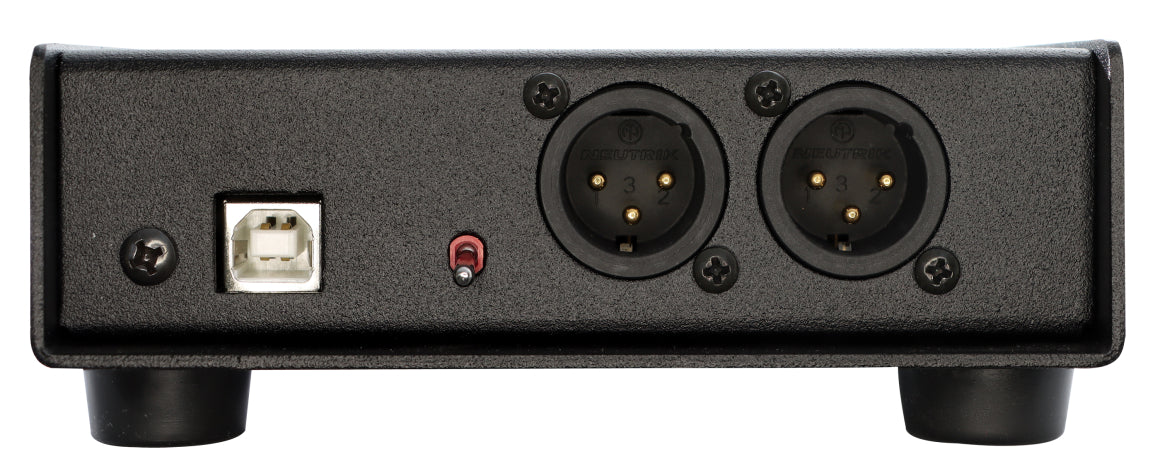

The monitor output is switchable between mono and stereo operation, and supports headphone and line level connections. The Ground Lift on the rear panel can eliminate grounding noise when the BT-DI is connected to a computer.
The XLR connections accept phantom power, so an external adaptor isn’t required. The unit can also be powered over USB using bus power or a 5-volt 80 mA adapter (not included). With a range of up to 100 feet (30 metres), the BT-DI makes it easy to integrate wireless audio into your sound system.
General Features:
- Bluetooth® 5.0 Receiver
- Up to 100 ft / 30 m Range (Line of Sight)
- Transformer-Isolated XLR Outputs
- Line / Headphone Monitor Out with Mono / Stereo Switch
- Fixed or Variable Main Output Level
- Level Control Adjusts Monitor or Main + Monitor Volume
- Ground Lift
- Powered by USB or Phantom Power
- Rugged Steel Case
Specifications:
| Active or Passive | Active |
| Inputs |
Bluetooth® Version 5.0 Class 2 Device (BR / EDR) Supports SBC and AAC Codecs |
| Range | Up to 100 ft / 30 m Range (Line of Sight) |
| Outputs |
2x XLR 1x 1/4" TRS Headphone / Line |
| Output Impedance | 300Ω |
| Maximum Output Level | 0 dBu |
| Controls | Bluetooth Pair, Level, Main / Monitor Switch, Monitor Mono / Stereo Switch, Ground Lift |
| Signal to Noise Ratio | -90 dB Unweighted (Typical) |
| Total Harmonic Distortion | < 0.05% (Typical) |
| Power Requirements | USB (5V, 80 mA) or Phantom Power (Requires Connection of Both XLR Outputs) |
| Dimensions (HWD) |
1.6" x 5" x 5.5" 3.6 cm x 12.6 cm x 14 cm |
| Weight | 2 lbs / 907 g |
**Specifications subject to change without notice
Warning:
This product can expose you to chemicals known to the State of California to cause cancer. For more information, go to P65Warnings.ca.
