Antari DFXIPS510 IP Rated UV LED Spot

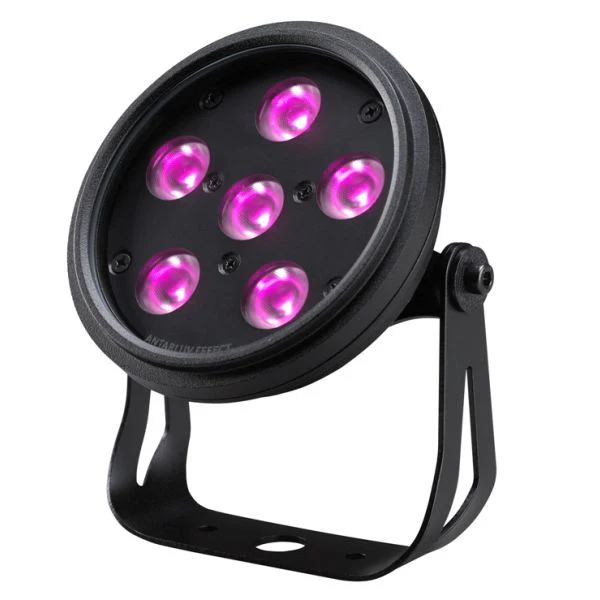

The Antari DFXIPS510 is an outdoor-rated professional high-output UV LED spot well suited for UV-reactive materials, art, amusement park displays, and signage with bright and vivid colors. The 6 x 1.9W high-power UV LEDs offer a peak wavelength of 365nm and a radiant flux output of 4500mW at full intensity and minimal visible light.

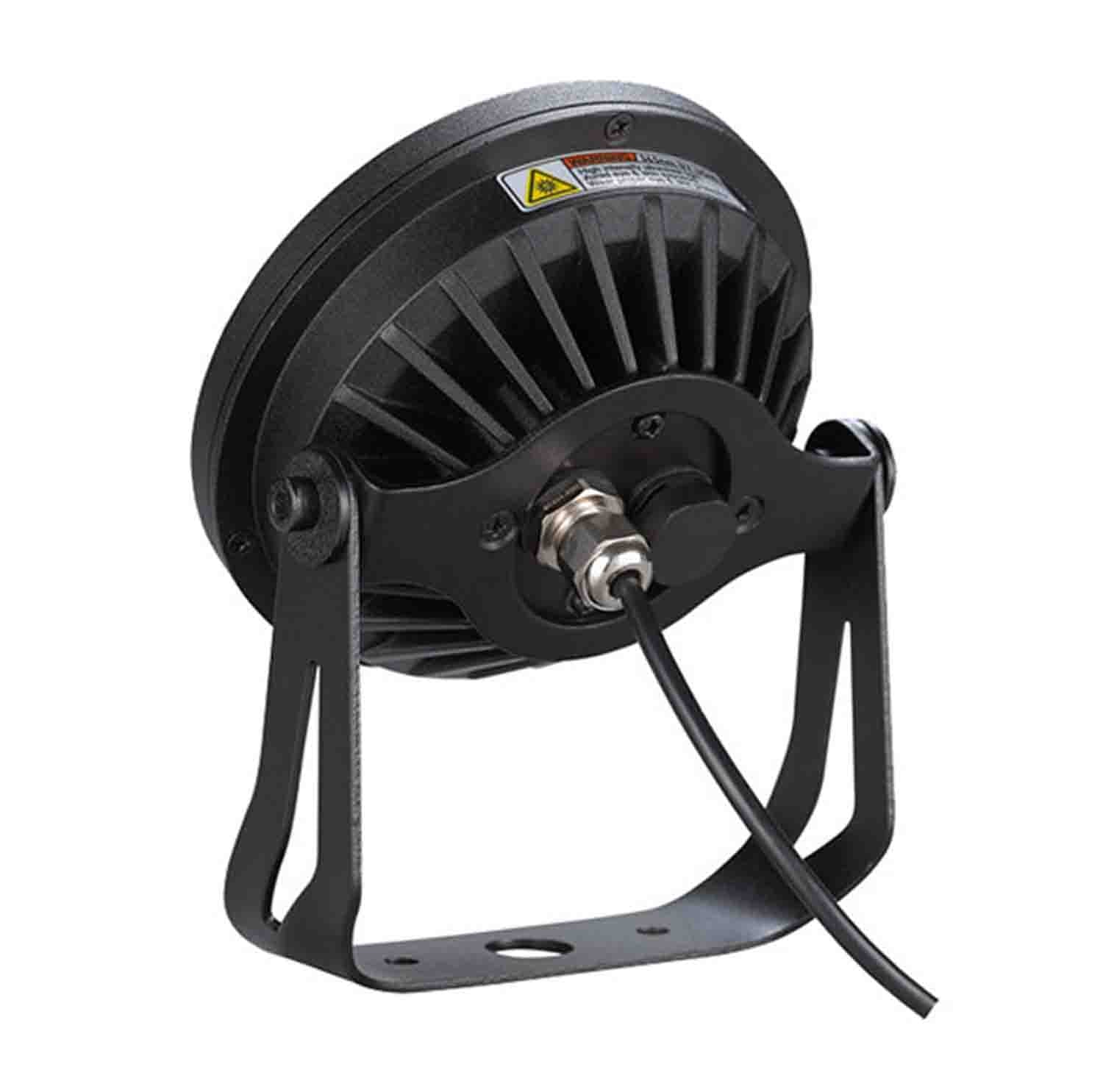

The fixture offers a 15° beam angle and is flicker-free for TV and film production. Special optics prevent wear degradation from high UV exposure. The aluminum extruded housing features a built-in adjustable yoke for versatile mounting options. A 22 AWG power/data bare-wire-end pigtail cable is attached on the back and connects to the Antari DarkFX Drive 4 fixture driver (sold separately), which is required for power and DMX control.

General Features:

• IP65 Rated High Efficiency UV LED Spot

• 15 Degrees Narrow Beam Angle

• Peak Wavelength at 365nm

• Minimum Visible Light

• High Output 4500mW at Full Intensity

• Special Optics to Prevent Wear Degradation from High UV Exposure

• Flicker Free Operation for TV and FILM

• SKU: AUV510

• Input Voltage: DC20-24V

• Power Consumption: 12W

• LED: 6 x 3W High Power UV LEDs

• Optics: 15 Degrees

• Radiant Flux Output: 4500 mW

• Project Lamp Life: 20,000 hrs L70 at 25C

• Peak Wavelength: 365nm

• Cable Connection: 22 AWG Wire Cable

• Housing: Die-Cast Aluminum

• IP Rating: IP65

• Dimensions: L 110.5 x W 49.8 x H 134.25 mm

• Dry weight 0.71 kg
