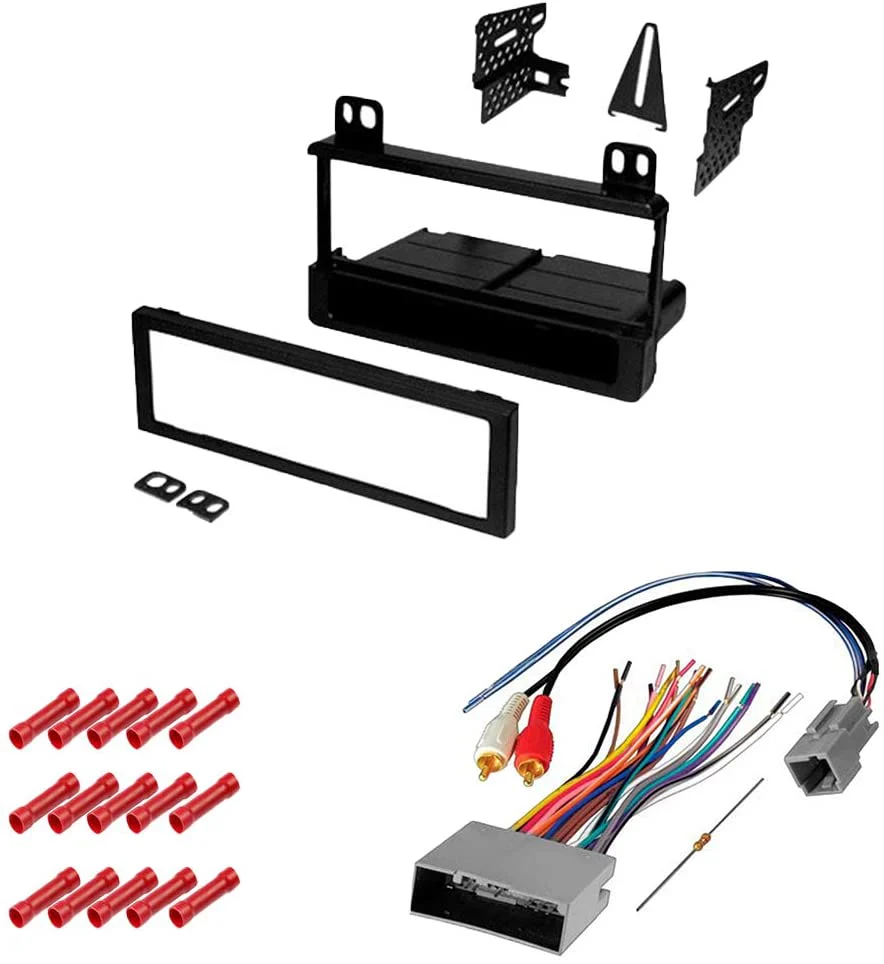

American Terminal KIT5802 Single Din Car Stereo Dash Kit + Harness Ford Lincoln Mercury Mazda 1995-2010, 15 Red Butt Connector

Interchange Dash Part Number: Metra 95-5802, Scosche FD1327B, AI FMK550

Interchange Harness Part Number: Metra 70-5519, Scosche FDK13B, AI FWH698

Dash Kit Features:

• Single DIN Install Dash Kit With Harness/ ISO Radio
• Compatible With Select 1995-2010 Ford, Lincoln Mercury
• Comes With Oversized Under Radio Storage Pocket
• Specially Designed Patent Pending Side Mount Brackets
• Designed And Contoured To Match Factory Dashboard
• High-Grade ABS Plastic Structure
• Factory Style Texture Design
• All Necessary Hardware Included
• Kit Includes:
• Radio Housing
• Radio Housing Trim Plate
• Radio Housing Brackets
• (2) 3/8” Phillips Screws

Harness Features:

• 16-Pin Plug & One 8-Pin Plug Amplifier Interface Harness
• No Cutting Of Factory Wires Is Necessary
• Color-Coded Wires Allow for a Consistent And Simplified Installation
• Allows Installation Of Aftermarket Radio Using Factory Wiring And Connector
• High Quality, ABS Plastic Molded Connector For The Perfect Fit
• Can Be Used To Repair A Cut-Off Or Damaged Wiring Harness

Connections guide:

• Yellow – 12V Constant
• Red – 12V Accessory
• Black - Ground
• Orange – Dash Light Dimmer/Illumination
• Green – Left Rear Speaker (+)
• Green With Black Stripe Left Rear Speaker (-)
• White – Left Front Speaker (+)
• White With Black Stripe – Left Front Speaker (-)
• Purple – Right Rear Speaker (+)
• Purple With Black Stripe – Right Rear Speaker (-)
• Gray – Right Front Speaker (+)
• Gray With Black Stripe – Right Front Speaker (-)

Compatibility List:
Ford:

• 1998-2008 Ecoline Van
• 2000-2004 Excursion
• 1998-2002 Expedition
• 2003 Expedition (Early Production Models)
• 1998-2005 Explorer
• 2000-2006 Explorer Sport Trac
• 1999-2003 F-150
• 2004 F-150 Heritage
• 1999-2004 F-250 / F-350
• 2001-2003 Mustang

Lincoln:

• 2003-2005 Aviator
• 2002-2003 Blackwood

Mercury:

• 1998-2002 Mercury Grand Marquis
• 1998-2005 Mercury Mountaineer
