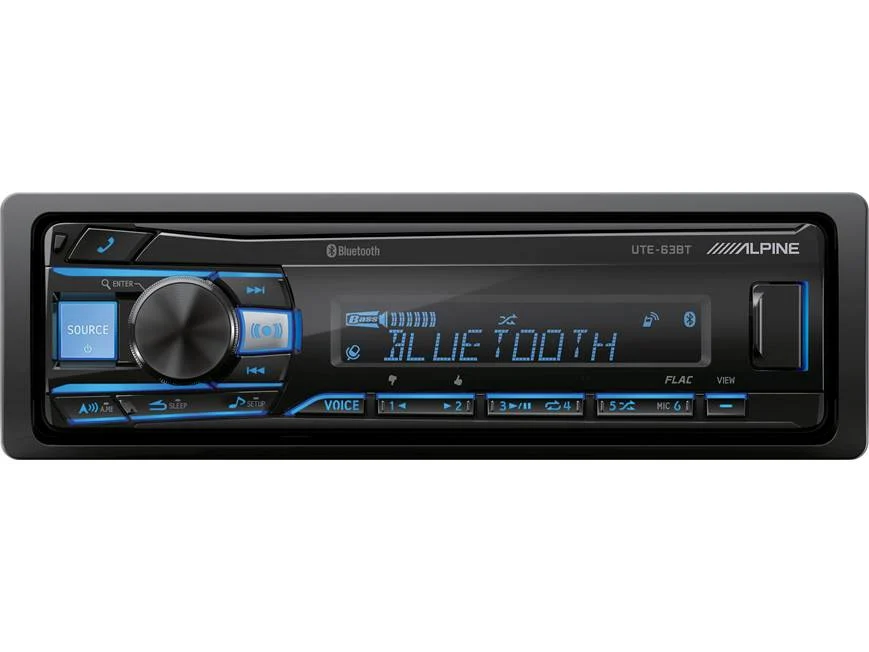

Alpine UTE-63BT Single-DIN Shallow-Chassis Bluetooth® Digital Media Receiver

Upgrade your factory stereo with the Alpine UTE-63BT Digital Media Receiver. Featuring a compact 4.25-inch shallow-mount chassis, Bluetooth® wireless connectivity, USB playback and charging, and Alpine's renowned Bass Engine SQ sound processing, the UTE-63BT delivers exceptional audio performance while fitting into installations with limited space. With customizable RGB illumination, built-in 18W x 4 amplification, and support for high-quality FLAC audio files, it's an ideal solution for modern vehicle audio upgrades.

---

General Features

• Single-DIN Digital Media Receiver

• Shallow 4.25" chassis for easy installation in tight spaces

• Bluetooth® hands-free calling

• Bluetooth® wireless audio streaming

• Built-in 4-channel amplifier

• 18 Watts RMS x 4 Channels (CTA-2006 Rated)

• Front USB port for music playback and device charging

• AM/FM tuner with RBDS

• High-contrast 1-line LCD display

• Customizable RGB button and display illumination

• Bass Engine SQ sound tuning

• 3-Band Parametric Equalizer

• High-Pass and Low-Pass crossover controls

• Dedicated subwoofer preamp output

• Front, Rear, and Subwoofer preamp outputs

• 24-Bit Digital-to-Analog Converter (DAC)

• Steering wheel control compatible (adapter required)

• Android™ smartphone compatible

• Supports USB audio playback

• Compact design ideal for custom installations

• Remote control not included

• 1-Year Manufacturer's Warranty

---

Audio Features

• Built-in 18W RMS x 4 amplifier

• Bass Engine SQ audio processing

• 3-Band Parametric EQ

• Adjustable High-Pass Filter

• Adjustable Low-Pass Filter

• Dedicated Subwoofer Level Control

• 24-Bit High-Resolution DAC

• Front, Rear, and Subwoofer preamp outputs

---

Playback Features

• Bluetooth® Audio Streaming

• USB Media Playback

• USB Device Charging

• AM/FM Radio with RBDS

• Compatible Audio Formats:

  • FLAC

  • AAC

  • MP3

  • WMA

---

Specifications

---

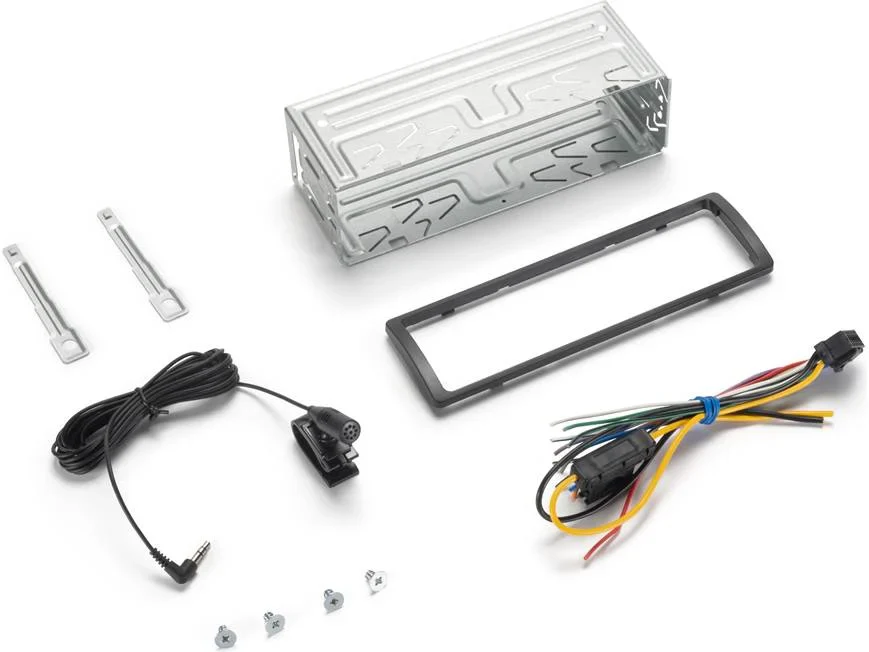

Package Includes

• Alpine UTE-63BT Digital Media Receiver

• Wiring Harness

• Mounting Sleeve

• Trim Ring

• Installation Hardware

• Owner's Manual

Perfect For

• Cars

• Trucks

• SUVs

• Classic Vehicles

• Custom Installations

• Vehicles with Limited Radio Mounting Depth
