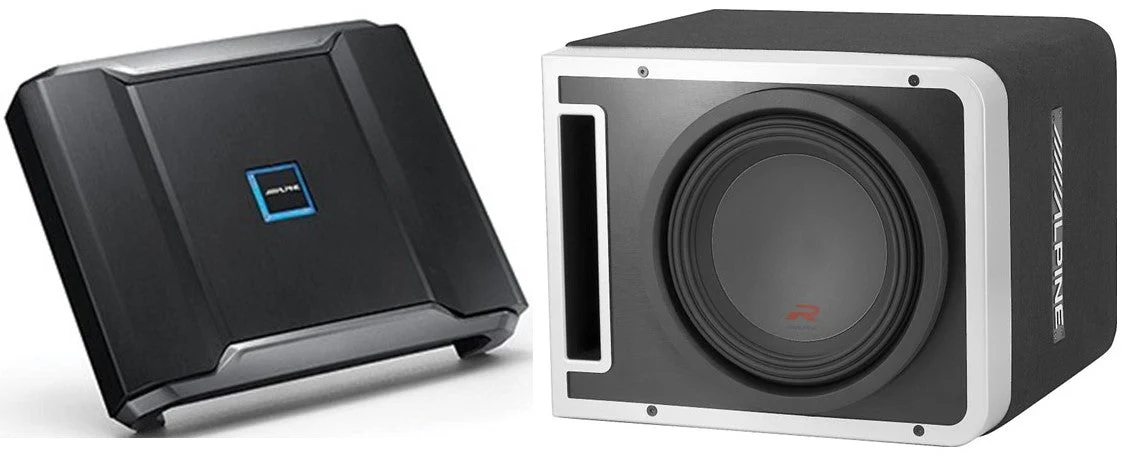

Alpine R-SB10V Pre-Loaded R-Series 10-inch Subwoofer Enclosure, R-A75M 750-Watt Mono Amplifier& 4 Gauge KIT4 Amp Kit

Package Includes:

• (1) Alpine R-SB10V Loaded 10" 600w S-W10D4 Subwoofer Ported Sub Enclosure Box
• (1) Alpine R-A75M 750-Watt RMS Mono Car Audio Amplifier Subwoofer Amp Class-D
• (1) Absolute KIT4 4 Gauge Complete Car Amp Wiring Installation Wire Kit with RCA's

Alpine R-SB10V Loaded 10" 750w R-W10D4 Subwoofer Ported Sub Enclosure Box



Unique to Alpine, the 10-inch subwoofer is available in a single or “linked” format with an optional mounting bracket. This innovative design allows the sound consumer the option to add more bass to their system easily.
Optimized Performance
The ported enclosure design delivers a higher total sound output for deep, powerful bass, reliable sound reproduction, and overall excellent sound quality. The 10-inch enclosure is tuned to 36 Hz for optimized performance with Alpine’s S-and-R-Series subwoofers.

General Features:

• Includes R-W10D4 wired in parallel
• 750W RMS power handling
• 2Ω Impedance
• Ported enclosure design
• Frequency response: 26-200 Hz
• Vented enclosure tuning frequency: 36 Hz
• Dimensions 16-inch W x 12.6825-inch H x 14.5-inch D

What is in the box:

• Ported enclosure loaded with one R-W10D4 subwoofer driver
• Rubber flange protector (installed on the subwoofer)

Alpine R-A75M R-Series Class D Monoblock Subwoofer Amplifier (750 Watts RMS)

The new R-Series amplifiers produce accurate imaging and dependable power. Use them with the R-Series speakers and amplifiers for a loud and fun experience.

The R-Series Amplifiers have a diagnostic LED located behind the blue Alpine Jewell on the top of the amplifier. Blue light means the amplifier is operating normally. A red blinking light means the amplifier is currently too hot for operation and needs to cool down. A solid red light can mean three things: 1. The amplifier circuit is abnormal. 2. Temperature is too high. 3. Power supply voltage is too high.

The R-Series amplifiers utilize Alpine’s advanced amplifier platform that takes the classic Class-D amplifier circuit and adds dual post-filter feedback loops for unmatched accuracy and control. This technology., Originally launched in the premium X-Series amplifiers, produces efficient power with enhanced dynamic range, qualifying the R-Series amplifiers to be Hi-Resolution Audio compliant.

General Features:

• Power output 2-Ohm @ 14.4 Volts: 750 W RMS X 1
• Power output 4-Ohm @ 14.4 Volts: 500 W RMS X 1
• THD 10 W into 4 Ohms: Less Than 0.02%
• THD 10 W into 2 Ohms: Less Than 0.03%
• THD Rated Power 4 Ohms: Less Than 0.3%
• THD Rated Power 2 Ohms: Less Than 1.0%
• S/N Ratio: 1 W into 4 Ohms: >85dB
• Frequency Response: +0/-3 dB 10Hz - 400Hz
• Frequency Response: +0/-1 dB 15Hz - 325Hz
• Input Sensitivity: Hi (0.5 - 10V), Low (0.2 - 4.0V)
• Crossover: Variable HPF/LPF, (50Hz - 400 Hz)
• Dimensions: Width - 10-3/4", Height - 2", Depth - 7-7/8"
• Weight: 7lb

In the box:

• R-A75M Mono Amplifier
• 4 x M4x20 Self-Tapping Screws
• 8 x Mounting Bracket Screws
• 4 x Mounting Brackets
• 1 x Hexagon Wrench

Absolute KIT4 4 Gauge Complete Car Amp Wiring Installation Wire Kit with RCA's

General Features:

• Complete 4 Gauge Amplifier Kit
• Designed specifically for car audio systems up to 1000 watts
• Premium power and ground wire provide optimal power transfer
• Includes 2-channel RCA interconnect cables for the audio signal connection from the receiver to the amplifier
• Terminals are gold-plated for excellent signal transfer
• For use in any car, truck, RV, or boat
• Authorized Internet Dealer
• 1-year Manufacturer's warranty

Package Includes:

1. 17 ft. of red 4 AWG high current power cable
2. 3 ft. of black 4 AWG ground cable
3. 15 ft. of RCA triple shielded interconnect audio cable with built-in remote wire
4. 20 ft. of 12 AWG OFC Speaker cable
5. 20 ft. of 16 AWG remote turn-on wire
6. 6 ft. of split loom tubing
7. 1 Gold-plated 80 AMP AGU fuse
8. 1 4 AWG gold ring terminal
9. 1 4 AWG water-resistant inline fuse holder
10. 2 Ring terminals
11. 2 Spade terminals (4 gauge)
12. 5 Spade terminals (14-16 gauge)
13. 3 Self-tapping screws
14. 1 Rubber grommet
15. 20 Black cable ties
16. 2 Butt connectors (18-22 gauge)
17. 1 Butt connector (4 gauge)
