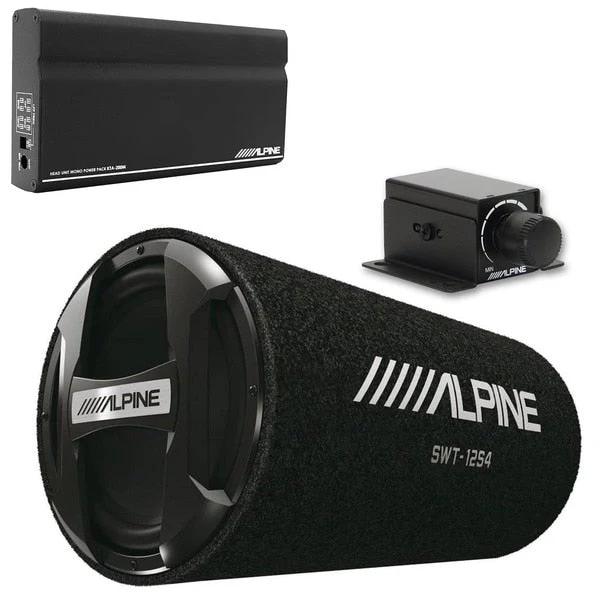

Alpine KTA-200M Mono Power Pack Amp with Alpine SWT-12S4 12" Loaded Tube Subwoofer and Bass Knob - This bundle includes an Alpine KTA-200M Mono 400-Watt Power Pack Amplifier, an Alpine SWT-12S4 1500W Max (300W RMS) Single 12" Sealed Subwoofer Tube Enclosure, and an Alpine RUX-KNOB.2

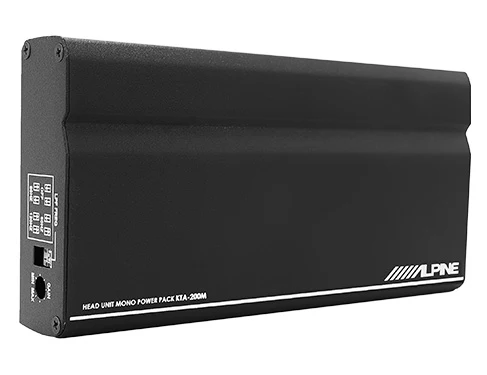

Alpine KTA-200M Compact 200 watts RMS Class D Monoblock Power Pack Amplifier

The KTA-200M fits in the open space behind Alpine’s iLX-W650 7-inch Mmech-Less (no CD/ DVD) Audio/Video receiver to create Alpine’s unique Power Stack application. The amplifier's compact footprint (7-inch W x 1.5-inch H x 3.5-inch D) and the iLX-W650's shallow chassis (1.9-inch D) occupy the same depth as a traditional 2-DIN chassis, resulting in an easy, hideaway bass solution that adds more power to the sound system without taking up space.

General Features:

• Power Stack is compatible with the Alpine iLX-W650
• compact mono subwoofer amplifier
• Alpine’s Class D Amplifier Circuit with DPP
• Dynamic Peak Power (DPP) technology adds a burst of power when needed
• CTA-2006 compliant
• 100W x 1 RMS @ 4Ω, Power Outputs
• 200W x 1 RMS @ 2Ω, Power Outputs
• 400W x 1 DPP @ 4Ω, Power Outputs
• Signal to Noise Ratio 85dB (ref. 1W into 4Ω)
• ≤0.1% THD+N (ref. 10W into 2Ω)
• Single-side 22-pin connector
• selectable low-pass filter (60, 80, 120 Hz at 12 dB/octave)
• preamp and speaker-level inputs
• RCA inputs (selectable, Low range=0.2-4V)
• Sound controls; Crossovers-Off/60Hz/80Hz/120Hz Linkwitz Riley LP Filter @ -24dB/Oct. (selectable); Input gain setting (variable)
• wiring, hardware, and fuse are not included with the amplifier
• Power Stack bracket included for mounting the amp behind the Alpine iLX-W650 digital multimedia receiver
• Authorized Dealer
• 1-year Warranty

Alpine SWT-12S4 1500W Max Single 12" Bass Reflex Sealed Subwoofer Tube Enclosure

With 1500W peak power handling, this ready-to-use bass reflex subwoofer tube is just for big bass fans. A protective grille ensures that nothing slides around in the trunk and damages the woofer.

General Features:

• 12" 4 ohm Bass Reflex Series Subwoofer
• 1500 Watts Peak Power Handling
• 300 Watts RMS Power Handling
• Heavy-Duty Subwoofer Grill
• Stitched Alpine Logo
• Carpeted Exterior
• Push SPK Terminal
• Installation Brackets and Belts Included
• Frequency Response: 28 - 200 Hz
• Sensitivity: 92 dB
• Speaker Impedance: 4 Ω
• Enclosure Dimensions: 12.75"W x 26" D
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty

Subwoofer Features:

• 12" Passive Subwoofer
• Push SPK Terminal
• Voice coil size/type
• Sensitivity: 92dB
• Enclosure Features:
• Tube enclosure
• Black Carpet Finish with White Alpine Logo
• Grille included

Alpine RUX-KNOB.2 Remote Bass Knob
With the RUX-KNOB, get complete control over your PDX-M6 or PDX-M12 amplifier, conveniently from inside the car. With the RUX-KNOB installed inside the vehicle cabin, easily adjust the bass gain of your amp while seated inside.
