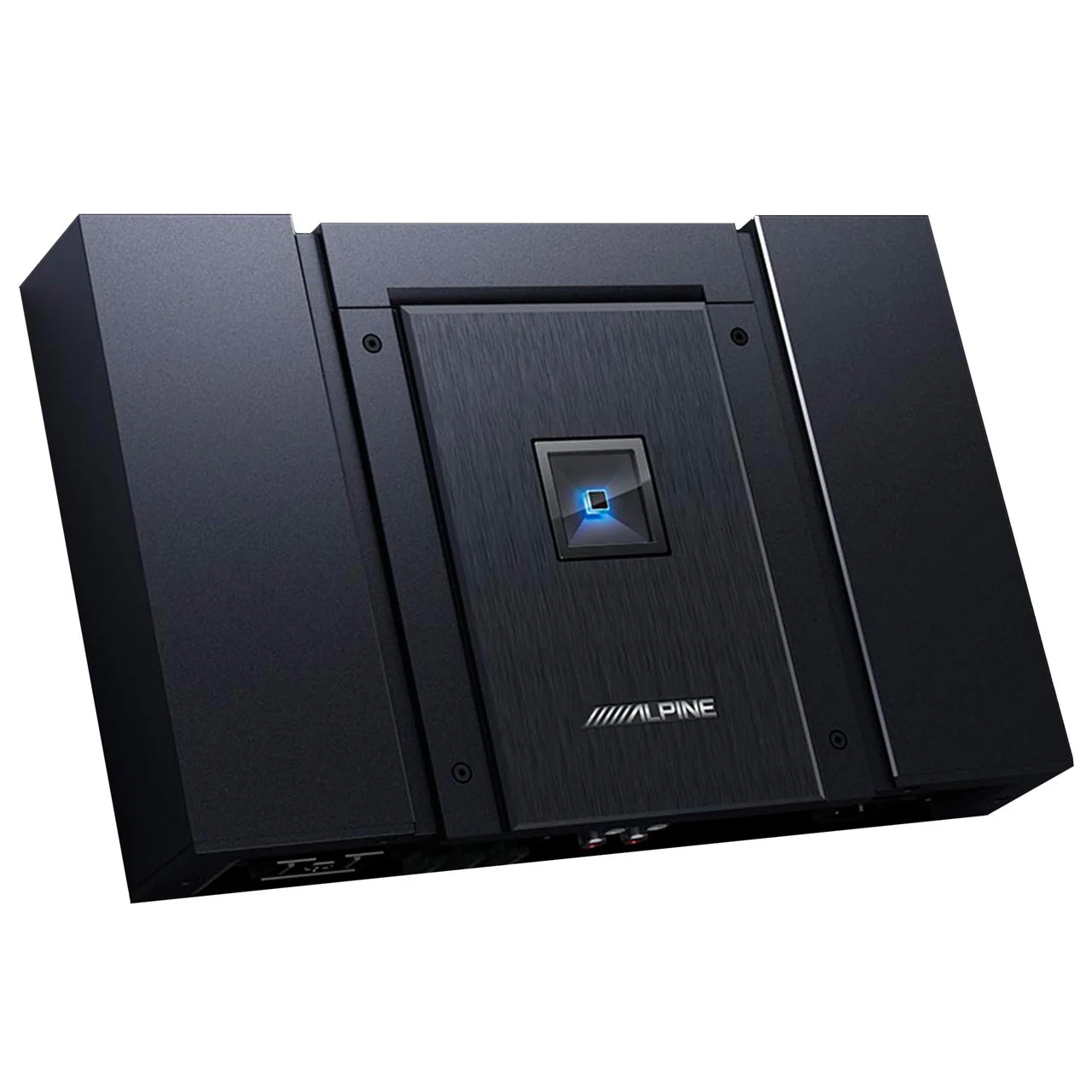

Alpine HDA-M80 Hi-Res Mono Subwoofer Amplifier, 500W x 1 at 4-Ohm, 800W x 1 at 2-Ohm & Absolute BT1700 Electrical Tape & Swivel Mobile Bracket Holder Bundle

With the highest-quality music streaming available, Alpine Status delivers superior audio performance that takes your music to a whole new level.

General Features:

• Hi-Res Audio Playback (192kHz/24Bit)
• Mono-Channel Amplifier
• High-Efficiency Digital Circuit Design
• Alpine’s Dual Negative Feedback Control Circuit
• High Bandwidth Amplifier
• Alpine’s Premium Class D Circuit Design
• Copper-plated chassis
• Black circuit board
• One-sided terminal layout
• Top panel sound controls
• Quick-connect power and speaker terminals
• Optional Remote bass knob compatible (requires RUX-KNOB.2 or RUX-H01, sold separately)

Tech Specs

• Dimensions: 11.4375” x 7.5” x 2.125”
• Power Rating: (14.4V, ≤1.0% THD+N)
• 800W x 1 @ 2Ω
• 500W x 1 @ 4Ω
• THD+N: 0.02% (10W into 4 ohm)
• S/N Ratio: 83dB (1W into 4 ohm)
• Frequency response: 8-400Hz (-3dB)
• Damping factor: 1500
• Selectable input level – HI/LO
• Variable High pass / Low pass crossover
• Variable Subsonic filter
• Bass EQ (0 to +12dB, Variable)
• Auto-turn on with remote sensing

Superior Sound

Using expertise gleaned from over five decades of crafting premium car audio products and trickle-down engineering and design from the Ultra Hi-Res AlpineF#1Status system technologies, the Alpine Status System features exceptional tooling and rich build quality for the best possible sound reproduction. Each component was hand-picked from the highest-quality materials for the highest in-class audio performance, which, when used as a complete system, can achieve 192kHz/24-bit playback.

Impressive Output

Powering a Hi-Res sound system without contributing noise during playback requires efficiency and precision, and the HDA-M80 was intentionally designed to provide impressive power output to the system while ensuring the purest audio performance. The amplifier’s broad dynamic range capability provides impressive output in a compact chassis that fits most vehicle applications.

Precise Sound Reproduction

The HDA-M80 features a high-efficiency digital circuit design that ensures ultra-low distortion levels for precise sound reproduction and superb sound quality. Intentional design elements, such as a copper-plated chassis and a black circuit board, raise the signal-to-noise ratio to 83dB and minimize noise and distortion during playback, delivering complete music fidelity that’s true to the source.

Incredible Reliability

Featuring technology unique to Alpine, the amplifier employs Alpine’s dual negative-feedback control circuit to improve linearity and deliver the most accurate sound amplification. This technology also stabilizes the amplifier output while driving the subwoofers for ultimate reliability.

Easy Installation

The HDA-M80 features Alpine’s quick-connect power and speaker connectors for quick and safe installation. The one-sided terminal layout and top-panel sound controls provide quick access to the amplifier's controls.

Optimized For Full System

The Alpine Status System is sold separately and can be used to build a custom sound system. Three sets of accurate 4V preamp outputs are included to add additional amplifiers if more power is needed. For best results, install the complete Alpine Status system together as a full system to achieve the highest in-class audio performance, only second to the Ultra High-Resolution AlpineF#1System.
